Product Details:
|
| Color: | Chrome And Black | Materia: | Steel |
|---|---|---|---|
| Voltage: | 12V | Air Flow: | 70L/Min |
| Current: | 23A | Brand: | OEM |
| Origianl: | China | Water Resistant: | IP67 |
| Delivery: | 20-30 Days After Received Your Deposit | ||
| High Light: | air ride air compressor,air ride compressor and tank |
||

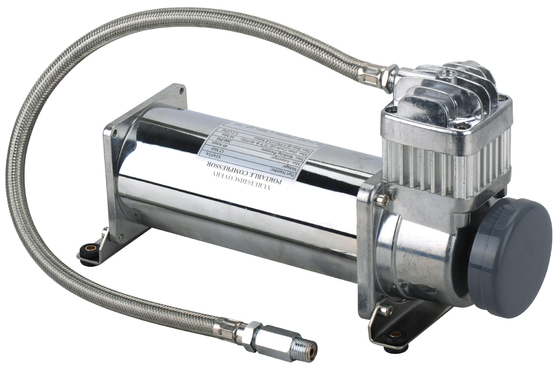

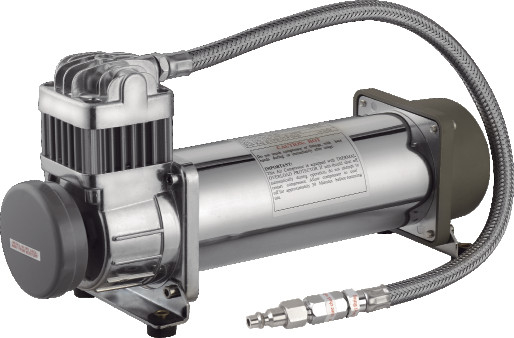

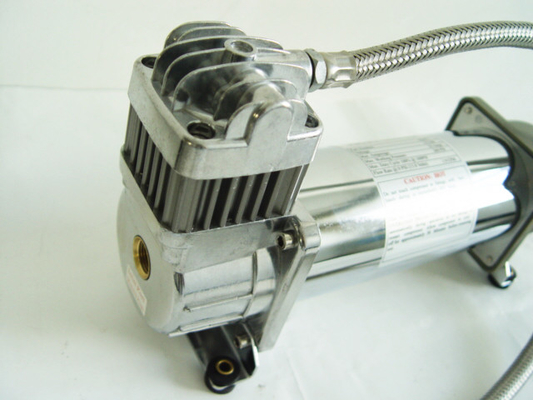

Car Tuning Air suspension Pump DC 12V
►Description
YF6455AH is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation.
It is commonly used with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It will automatically turn on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation.
►Used with
• Air tanks in different sizes
• Pneumatic system
• Air horns
►Our Advantages
1 . One year warranty
2 . Competitive price than other manufactures
3 . Portable to carry with
4 . Fast inflation and low noise
5 . Can be pumped more than 20 , 000 times
6 . Anti-dust
7 . Water resistant : IP 67, working in the water for 2 hours
►About us:
We only produce & export the lelatively high-end products to the world. We have gained acceptance by many countries’s friends, we have distributors in USA Austral, Russia, Poland Germany and so on.
The quality is most we focus on, I think the best quality is the main reason we can survive so long time, not only because we strictly control the quality in the production, but also we check the quality after the production among the ready goods.
Any kind of inspection is welcomed, we welcome you all come and have a look.
►SPECIFICATION
1.75CFM 200PSI
• 12 Volt
• Duty Cycle: 100% @ 100 PSI
• Duty Cycle: 50% @ 200 PSI
• Max. Working Pressure: 200 PSI
• 12V Max. Amp Draw: 23 Amps

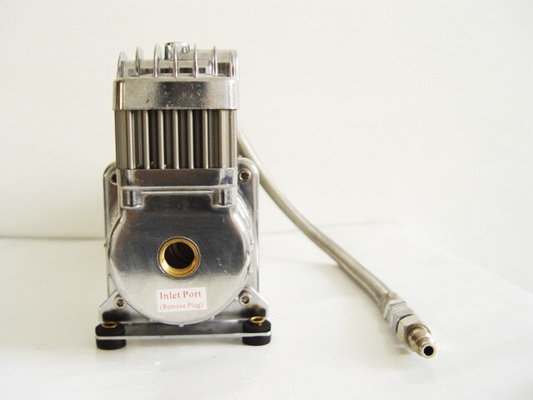

• 1/4"NPT Inlet port
• Net Weight: 10.5 lbs
12"Lx4"Wx6.5"H
► PERFORMANCE DATA
| PSI | 0 | 40 | 90 | 150 |
| AMPS | 11 | 17 | 21 | 22 |
| CFM | 1.75 | 1.34 | 1.05 | 0.74 |
| LPM | 50 | 38 | 30 | 21 |
| BAR | 0 | 3 | 6 | 10 |
► RECOMMENDED TANK
TANK FILL DATA
2.5 Gallon Tank
0 to 150 psi 4 min 58 sec
120 to 150 psi 50 sec
♦ DUTY CYCLE REFERENCE CHART
| Duty Cycle: 100PSI @ 72◦F | Max. Run Time / Min. Rest Time |
Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle% |
| 9% Duty Cycle | 3 Min. On / 30 Min. Off | |
| 10% Duty Cycle | 3 Min. On / 30 Min. Off | |
| 15% Duty Cycle | 6 Min. On / 30 Min. Off | |
| 20% Duty Cycle | 8 Min. On / 30 Min. Off | |
| 25% Duty Cycle | 10 Min. On / 30 Min. Off | |
| 30% Duty Cycle | 13 Min. On / 30 Min. Off | |
| 33% Duty Cycle | 15 Min. On / 30 Min. Off | |
| 40% Duty Cycle | 20 Min. On / 30 Min. Off | |
| 100% Duty Cycle | Continous Duty @ 100PSI @ 72◦F |
