Product Details:
|
| Brand: | OEM | Material: | Steel |
|---|---|---|---|
| Color: | Silver | Current: | 12V |
| Original: | China | Price: | Competitive |
| Application: | On-board Air System, Car Tuning, Off-board Car | Recommended Parts: | Air Tank |
| High Light: | heavy duty air compressor,suspension air compressor |
||

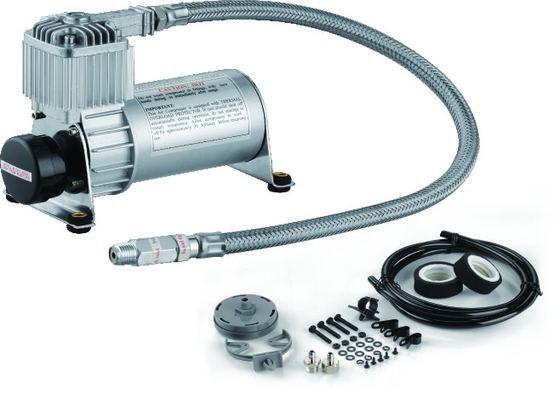

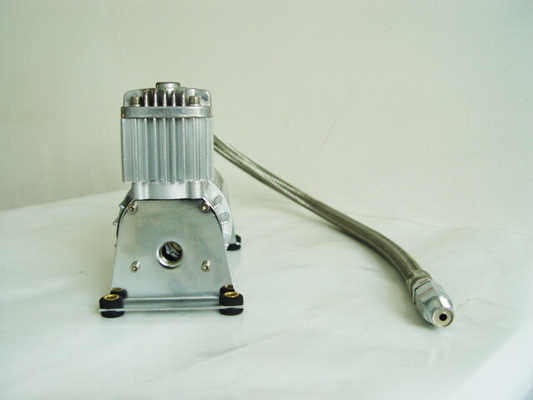

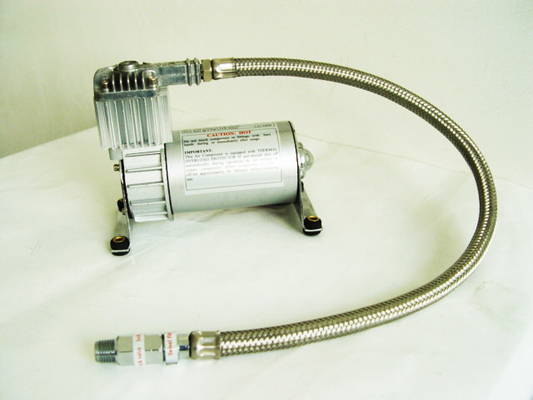

YURUI 6264R 130SI 12V Chrome Air Suspension Compressor Load Support
► Description
YF6264R is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation.
It is commonly used with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It will automatically turn on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation.
► Used with
• Air tanks in different sizes
• Pneumatic system
• Air horns
►Our Advantages
1 . One year warranty
2 . Competitive price than other manufactures
3 . Portable to carry with
4 . High quality
5 . Can be pumped more than 20 , 000 times
6 . Anti-dust
7 . Water resistant : IP 54
►SPECIFICATION
1.2CFM 130PSI
• 12 Volt
• Duty Cycle: 15% @ 100 PSI
• Max. Working Pressure: 130 PSI
• 12V Max. Amp Draw: 16 Amps
• Inline Check Valve
6.3"Lx3.3"Wx5.2"H
►PERFORMANCE DATA
| PSI | 0 | 40 | 90 | 130 |
| AMPS | 9.5 | 12.5 | 14.5 | 15 |
| CFM | 1.2 | 0.8 | 0.63 | 0.54 |
| LPM | 33 | 23 | 18 | 15.5 |
| BAR | 0 | 3 | 6 | 9 |
► RECOMMENDED TANK
TANK FILL DATA
1.0 Gallon Tank
0 to 130 psi 2 min 6 sec
100 to 120 psi 45 sec
♦ DUTY CYCLE REFERENCE CHART
| Duty Cycle: 100PSI @ 72◦F | Max. Run Time / Min. Rest Time |
Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle% |
| 9% Duty Cycle | 3 Min. On / 30 Min. Off | |
| 10% Duty Cycle | 3 Min. On / 30 Min. Off | |
| 15% Duty Cycle | 6 Min. On / 30 Min. Off | |
| 20% Duty Cycle | 8 Min. On / 30 Min. Off | |
| 25% Duty Cycle | 10 Min. On / 30 Min. Off | |
| 30% Duty Cycle | 13 Min. On / 30 Min. Off | |
| 33% Duty Cycle | 15 Min. On / 30 Min. Off | |
| 40% Duty Cycle | 20 Min. On / 30 Min. Off | |
| 100% Duty Cycle | Continous Duty @ 100PSI @ 72◦F |
