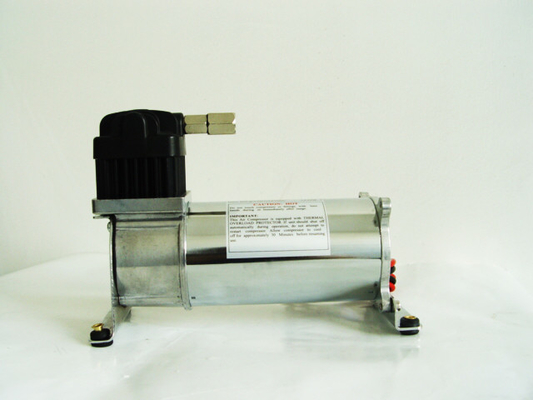

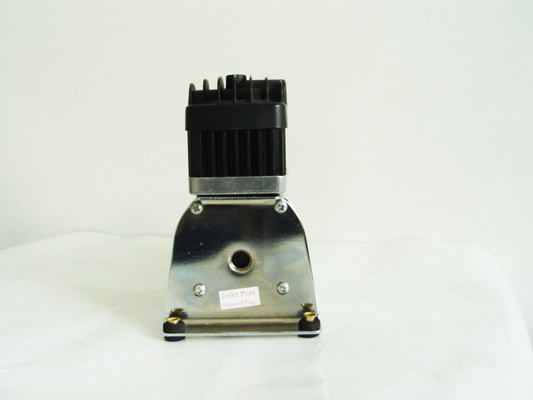

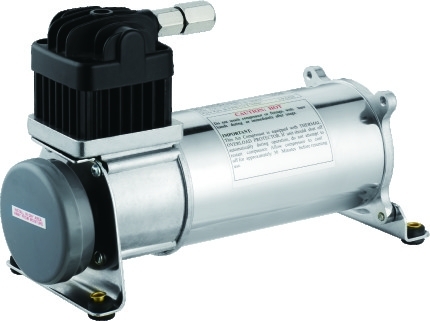

150psi 12V Air Suspension Compressor For Air Bag Suspension Horn System

150psi 12V Air Suspension Compressor For Air Bag Suspension Horn System

    • 150psi 12V Air Suspension Compressor For Air Bag Suspension Horn System
    • 150psi 12V Air Suspension Compressor For Air Bag Suspension Horn System
    • 150psi 12V Air Suspension Compressor For Air Bag Suspension Horn System
  • 150psi 12V Air Suspension Compressor For Air Bag Suspension Horn System

    Product Details:

    Place of Origin: CHINA
    Brand Name: YURUI
    Certification: CE&ROHS
    Model Number: YF6463R

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Bubble Bag with Foam, Color box and Strong Carton
    Delivery Time: 30 days after receiving 30% deposit
    Payment Terms: T/T
    Supply Ability: 4000pcs 30 days
    Contact Now
    Detailed Product Description
    Material: Chrome Brand: OEM
    Voltage: 12V Power: Heavy Duty
    Moisture Resistant: IP54 Color: Silver

    YURUI 6463R 150psi 12V Air Suspension Compressor For Air Bag Suspension Horn System





    ► Description



    YF6463R is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation. Always integrated into on-board air system.

    Commonly used must with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It automatically turns on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation when the environment changes. The compressor is furnished with a thermal overload protector which will turn off the unit if overheated.



    ► Used with



    Air tanks in different sizes

    Pneumatic system

    Air horns



    ► Our Advantages



    1 . One year warranty

    2 . Competitive price than other manufactures

    3 . Portable to carry with

    4 . Fast inflation and low noise

    5 . Can be pumped more than 20 , 000 times

    6 . Anti-dust and explosion-proof

    7 . Water resistant IP 54






    SPECIFICATION



    2.04CFM 150PSI



    • 12 Volt

    • Duty Cycle: 30% @ 100 PSI

    • Max. Working Pressure: 150 PSI

    • 12V Max. Amp Draw: 23 Amps

    • Net Weight: 7.72 lbs

    9.45"Lx4"Wx6.45"H



    ► PERFORMANCE DATA

    PSI 0 40 90 150
    AMPS 13 19 22 21
    CFM 2.04 1.48 1.2 0.77
    LPM 58 42 34 22
    BAR 0 3 6 10



    ►  RECOMMENDED TANK150psi 12V Air Suspension Compressor For Air Bag Suspension Horn System

    TANK FILL DATA



    2.0 Gallon Tank

    0 to 150 psi 2 min 15 sec

    120 to 150 psi 45sec




    ♦ DUTY CYCLE REFERENCE CHART



    Duty Cycle: 100PSI @ 72F Max. Run Time / Min. Rest Time



    Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%

    9% Duty Cycle 3 Min. On / 30 Min. Off
    10% Duty Cycle 3 Min. On / 30 Min. Off
    15% Duty Cycle 6 Min. On / 30 Min. Off
    20% Duty Cycle 8 Min. On / 30 Min. Off
    25% Duty Cycle 10 Min. On / 30 Min. Off
    30% Duty Cycle 13 Min. On / 30 Min. Off
    33% Duty Cycle 15 Min. On / 30 Min. Off
    40% Duty Cycle 20 Min. On / 30 Min. Off
    100% Duty Cycle Continous Duty @ 100PSI @ 72F


    150psi 12V Air Suspension Compressor For Air Bag Suspension Horn System
