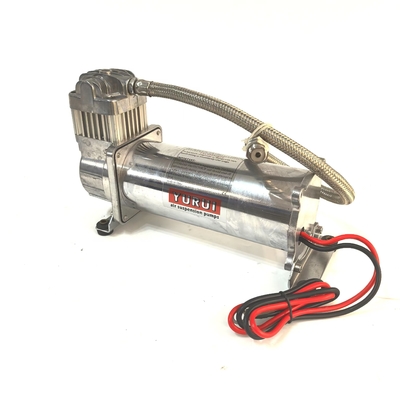

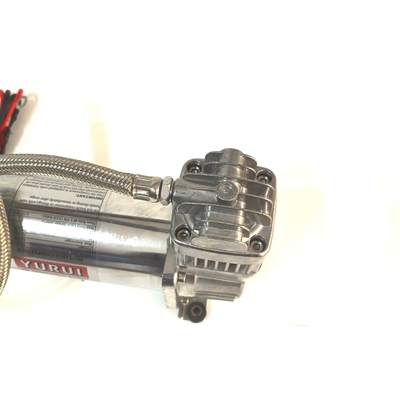

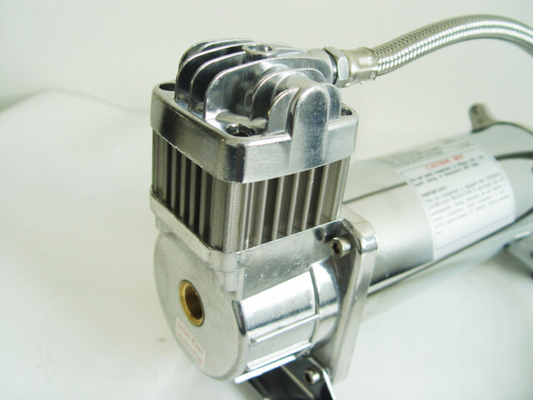

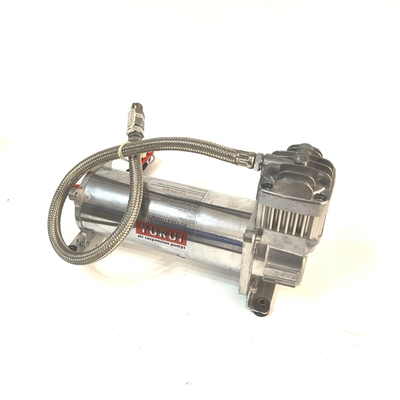

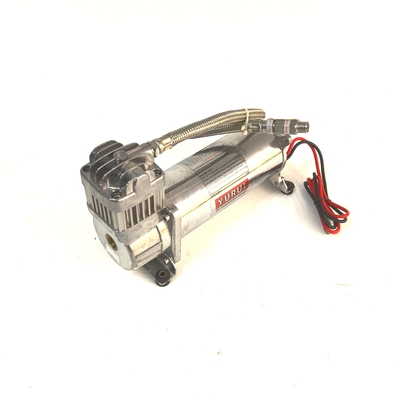

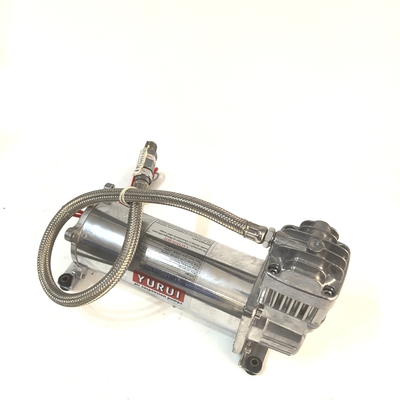

Yurui 6455 BR 150 Psi 2 Gallon Air Shock Compressor For Air Ride Suspension

Yurui 6455 BR 150 Psi 2 Gallon Air Shock Compressor For Air Ride Suspension

    • Yurui 6455 BR 150 Psi 2 Gallon Air Shock Compressor For Air Ride Suspension
    • Yurui 6455 BR 150 Psi 2 Gallon Air Shock Compressor For Air Ride Suspension
    • Yurui 6455 BR 150 Psi 2 Gallon Air Shock Compressor For Air Ride Suspension
  • Yurui 6455 BR 150 Psi 2 Gallon Air Shock Compressor For Air Ride Suspension

    Product Details:

    Place of Origin: CHINA
    Brand Name: N / M
    Certification: CE&ROHS
    Model Number: YF6455BR

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Consultation
    Packaging Details: Bubble Bag with Foam, Color box and Strong Carton
    Delivery Time: One month after receiving 30% deposit
    Payment Terms: T/T, L/C
    Supply Ability: 4000pcs 30 days
    Contact Now
    Detailed Product Description
    Material: Chrome Popularity: Hot
    Brand: OEM Origin: China
    Moisture Resistant: IP67 Application: On-board Air System, Car Tuning, Off-board Car
    Delivery: 20-30 Days After Received Your Deposit Warranty: 12 Months

    Yurui 6455BR 150psi 1 Year Warranty Load Support Air Ride Suspension Compressor Bags







    Description



    YF6455BR is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation. Always integrated into on-board air system.

    Commonly used must with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It automatically turns on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation when the environment changes. The compressor is furnished with a thermal overload protector which will turn off the unit if overheated.





    Used with



    Air tanks in different sizes

    Pneumatic system

    Air horns





    Our Advantages



    1 . One year warranty

    2 . Competitive price than other manufactures

    3 . Portable to carry with

    4 . Fast inflation and low noise

    5 . Can be pumped more than 20 , 000 times

    6 . Anti-dust and explosion-proof

    7 . Water resistant : IP 67, working in the water for 2 hours






    SPECIFICATION



    2.18CFM 150PSI



    12 Volt

    Duty Cycle: 33% @ 100 PSI

    Max. Working Pressure: 150 PSI

    12V Max. Amp Draw: 25 Amps

    • 1/4"NPT Inlet port

    Net Weight: 11 lbs

    9.25"Lx4"Wx6.5"H





    PERFORMANCE DATA



    PSI 0 40 90 150
    AMPS 15 23 24 25
    CFM 2.18 1.48 1.2 0.84
    LPM 62 42 34 24
    BAR 0 3 6 10





    RECOMMENDED TANKYurui 6455 BR 150 Psi 2 Gallon Air Shock Compressor For Air Ride Suspension

    TANK FILL DATA



    2.0 Gallon Tank

    0 to 150 psi 2 min 05sec

    120 to 150 psi 40 sec




    DUTY CYCLE REFERENCE CHART



    Duty Cycle: 100PSI @ 72F Max. Run Time / Min. Rest Time



    Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%

    9% Duty Cycle 3 Min. On / 30 Min. Off
    10% Duty Cycle 3 Min. On / 30 Min. Off
    15% Duty Cycle 6 Min. On / 30 Min. Off
    20% Duty Cycle 8 Min. On / 30 Min. Off
    25% Duty Cycle 10 Min. On / 30 Min. Off
    30% Duty Cycle 13 Min. On / 30 Min. Off
    33% Duty Cycle 15 Min. On / 30 Min. Off
    40% Duty Cycle 20 Min. On / 30 Min. Off
    100% Duty Cycle Continous Duty @ 100PSI @ 72F





    Yurui 6455 BR 150 Psi 2 Gallon Air Shock Compressor For Air Ride Suspension
