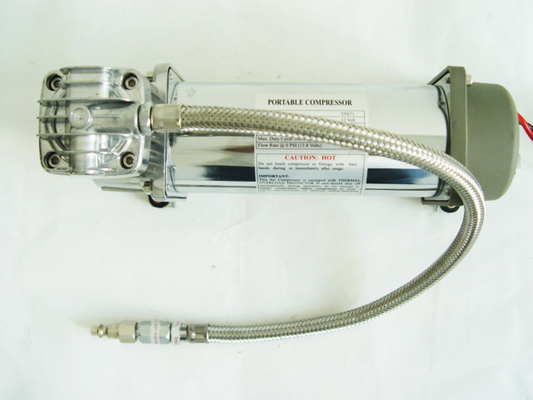

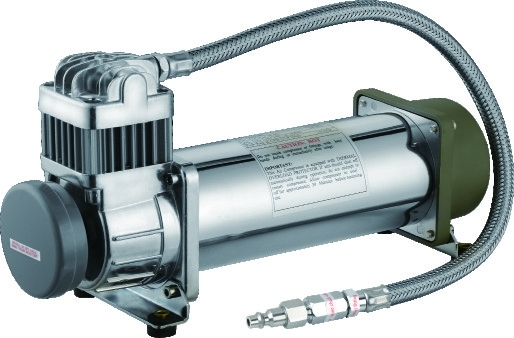

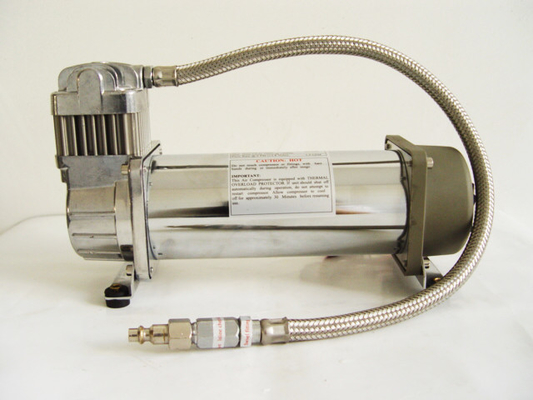

150PSI Chrome 1.75CFM Heavy Duty Portable Air Shock Compressor 12v With Air Tank

150PSI Chrome 1.75CFM Heavy Duty Portable Air Shock Compressor 12v With Air Tank
150PSI Chrome 1.75CFM Heavy Duty Portable Air Shock Compressor 12v With Air Tank 150PSI Chrome 1.75CFM Heavy Duty Portable Air Shock Compressor 12v With Air Tank 150PSI Chrome 1.75CFM Heavy Duty Portable Air Shock Compressor 12v With Air Tank 150PSI Chrome 1.75CFM Heavy Duty Portable Air Shock Compressor 12v With Air Tank

Large Image :  150PSI Chrome 1.75CFM Heavy Duty Portable Air Shock Compressor 12v With Air Tank

Product Details:
Place of Origin: CHINA
Brand Name: N / M
Certification: CE&ROHS
Model Number: YF6455AH
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Consultation
Packaging Details: First wrapped with high-quality carrying bag, then with color box, finally Strong Carton
Delivery Time: One month after receiving 30% deposit
Payment Terms: T/T, L/C
Supply Ability: 4000pcs 30 days

150PSI Chrome 1.75CFM Heavy Duty Portable Air Shock Compressor 12v With Air Tank

Description
Brand: OEM Material: Chrome
Voltage: 12V Application: On-board Air System, Car Tuning, Off-board Car
Recommended Parts: Air Tank Price: Competitive
Power: Heavy Duty Moisture Resistant: IP67
Condition: Brand New
High Light:

air bag suspension compressor

,

air ride compressor and tank

Yurui 6455AH 150PSI Chrome 1.75CFM Air Ride Suspension Compressor Stainless Load Hose





Description



YF6455AH is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation.

It is commonly used with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It will automatically turn on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation.





► Used with



Air tanks in different sizes

Pneumatic system

Air horns





Our Advantages



1 . One year warranty

2 . Competitive price than other manufactures

3 . Portable to carry with

4 . Fast inflation and low noise

5 . Can be pumped more than 20 , 000 times

6 . Anti-dust

7 . Water resistant : IP 67, working in the water for 2 hours






► SPECIFICATION



1.75CFM 200PSI







• 12 Volt

• Duty Cycle: 100% @ 100 PSI

• Duty Cycle: 50% @ 200 PSI

• Max. Working Pressure: 200 PSI

• 12V Max. Amp Draw: 23 Amps

• 1/4"NPT Inlet port

• Net Weight: 10.5 lbs

12"Lx4"Wx6.5"H



► PERFORMANCE DATA

PSI 0 40 90 150
AMPS 11 17 21 22
CFM 1.75 1.34 1.05 0.74
LPM 50 38 30 21
BAR 0 3 6 10





RECOMMENDED TANK150PSI Chrome 1.75CFM Heavy Duty Portable Air Shock Compressor 12v With Air Tank 0

TANK FILL DATA



2.5 Gallon Tank

0 to 150 psi 4 min 58 sec

120 to 150 psi 50 sec






♦ DUTY CYCLE REFERENCE CHART



Duty Cycle: 100PSI @ 72F Max. Run Time / Min. Rest Time



Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%

9% Duty Cycle 3 Min. On / 30 Min. Off
10% Duty Cycle 3 Min. On / 30 Min. Off
15% Duty Cycle 6 Min. On / 30 Min. Off
20% Duty Cycle 8 Min. On / 30 Min. Off
25% Duty Cycle 10 Min. On / 30 Min. Off
30% Duty Cycle 13 Min. On / 30 Min. Off
33% Duty Cycle 15 Min. On / 30 Min. Off
40% Duty Cycle 20 Min. On / 30 Min. Off
100% Duty Cycle Continous Duty @ 100PSI @ 72◦F


150PSI Chrome 1.75CFM Heavy Duty Portable Air Shock Compressor 12v With Air Tank 1
