Product Details:
|
| Color: | Black And Silver | Voltage: | DC12V |
|---|---|---|---|
| Material: | Steel And Chrome | Moisture Resistant: | IP67 |
| Power: | Heavy Duty | Brand: | OEM |
| Pressure: | 200psi | CFM: | 3.5 |
| High Light: | Air Lift Compressor,Air Lift Air Compressor |
||
Black Steel And Chrome Off Road Dual Air Compressor And Car Tuning For Benz
PERFORMANCE VALUE PACK
► SPERCIFICATIONS
3.5 CFM 200PSI
12 Volt
Duty Cycle:100% @ 100PSI
Duty Cycle:50% @ 200PSI
Max Working Pressure :200PSI
Max Amp Draw: 42Amps
1/4”NPT Inlet port
Net Weight:21.6lbs
P/N 11”Lx4”Wx6.85”H

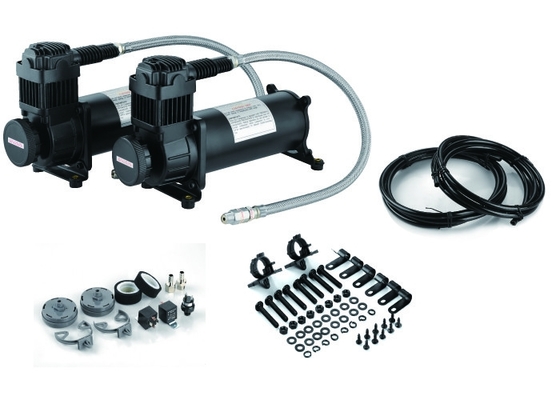

► PARTS INCLUDED
(2) YF6469 Compressors
(2) Air Filter Assemblies
(2) Leader Hose Clips
(2) Remote Mount Brackets
(2) Sets of Remote Mount Fittings
(2) Air Line Clips with Included Hardware
(2) Sets of Nuts Bolts Washers and Lock Washers
(2) Heavy Duty 40Amp Relays
(1) One Heavy Duty Pressure Switch(165psi on, 200psi off)
Air Line(For Remote Mount Filter Installation)
► PERFORMANCE DATA
| PSI | 0 | 40 | 90 | 150 | 200 |
| AMPS | 24 | 32 | 38 | 34 | 30 |
| CFM | 3.5 | 2.7 | 2.18 | 1.6 | 1.12 |
| LPM | 100 | 76 | 62 | 45 | 32 |
| BAR | 0 | 3 | 6 | 10 | 14 |
► TANK FILL DATA
2.5 Gallon Tank
0 to 200 psi 2 min 35 sec
150 to 200 psi 45 sec
5.0 Gallon Tank
0 to 200 psi 5 min 45 sec
150 to 200 psi 1 min 50 sec
