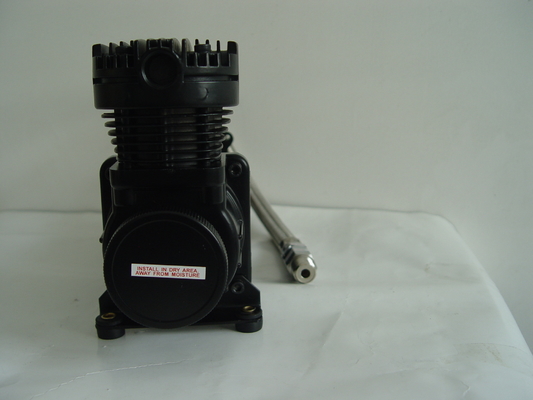

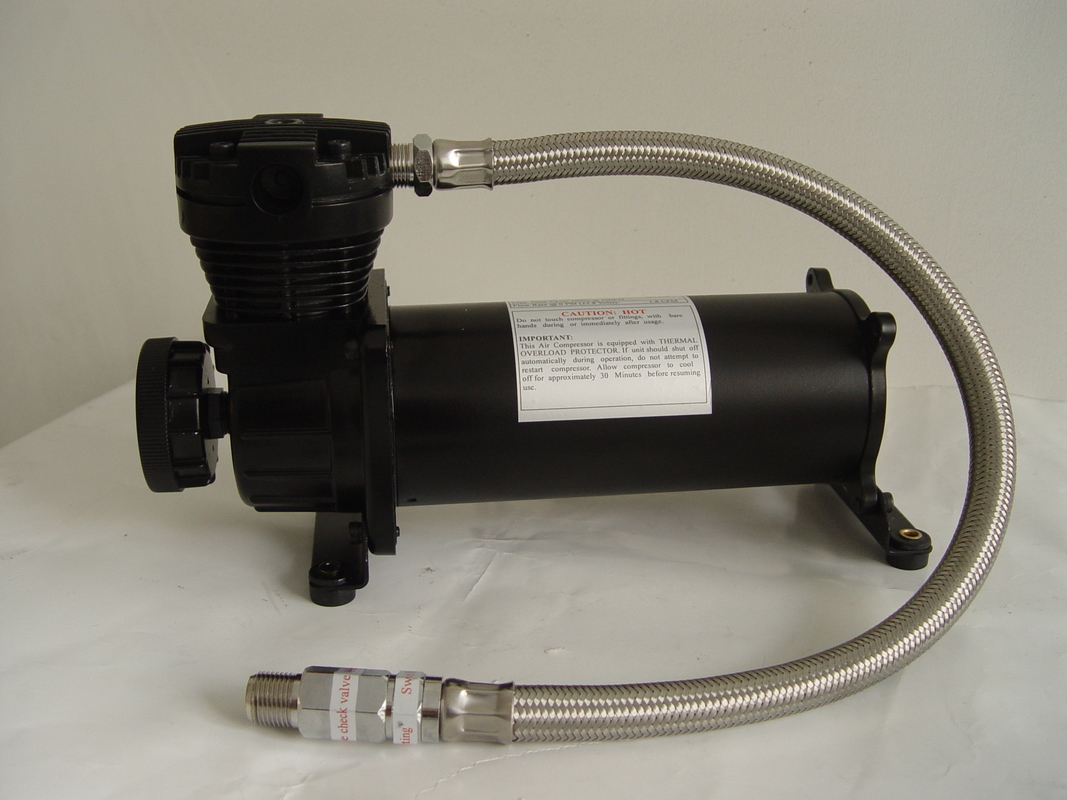

Steel Material Air Lift Suspension Compressor 70L/Min Air Flow , IP67 Moisture Resistant

Steel Material Air Lift Suspension Compressor 70L/Min Air Flow , IP67 Moisture Resistant

    • Steel Material Air Lift Suspension Compressor 70L/Min Air Flow , IP67 Moisture Resistant
    • Steel Material Air Lift Suspension Compressor 70L/Min Air Flow , IP67 Moisture Resistant
  • Steel Material Air Lift Suspension Compressor 70L/Min Air Flow , IP67 Moisture Resistant

    Product Details:

    Place of Origin: CHINA
    Brand Name: YURUI
    Certification: CE&ROHS
    Model Number: YF6456

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Consultation
    Packaging Details: Bubble Bag with Foam, Color box and Strong Carton
    Delivery Time: 30 days after receiving 30% deposit
    Payment Terms: T/T
    Supply Ability: 4500pcs per month
    Contact Now
    Detailed Product Description
    Material: Steel Brand: OEM
    Voltage: 12V Current: DC
    Air Flow: 70L/Min Moisture Resistant: IP67

    Ford Off-road Car Air Lift Suspension System Fast Inflation





    Description



    If you want to easily "level up" by inflating & deflating your airbags individually from the comfort of your own vehicle & have a universal coupler connection to run a tyre inflator (supplied in this kit) or air blower gun from, then this is the perfect compressor for you.





    Used with



    Air tanks in different sizes

    Pneumatic system

    Air horns



    Steel Material Air Lift Suspension Compressor 70L/Min Air Flow , IP67 Moisture Resistant





    SPECIFICATION

    1.8CFM 200PSI



    12 Volt

    Duty Cycle: 100% @ 100 PSI

    Duty Cycle: 50% @ 200 PSI

    Max. Working Pressure: 200 PSI

    12V Max. Amp Draw: 23 Amps

    3/8"NPT Inlet port

    Net Weight: 11 lbs

    11"Lx4"Wx6.55"H



    PERFORMANCE DATA

    PSI 0 40 90 150 200
    AMPS 11 17 21 22 19
    CFM 1.8 1.34 1.05 0.74 0.56
    LPM 51 38 30 21 16
    BAR 0 3 6 10 14





    RECOMMENDED TANK



    TANK FILL DATA



    2.5 Gallon Tank

    0 to 200 psi 4 min 58 sec

    150 to 200 psi 1 min 50 sec



    5.0 Gallon Tank

    0 to 200 psi 10 min 10 sec

    150 to 200 psi 2 min 50 sec


    Steel Material Air Lift Suspension Compressor 70L/Min Air Flow , IP67 Moisture Resistant




    Duty Cycle: 100PSI @ 72F Max. Run Time / Min. Rest Time



    Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%

    9% Duty Cycle 3 Min. On / 30 Min. Off
    10% Duty Cycle 3 Min. On / 30 Min. Off
    15% Duty Cycle 6 Min. On / 30 Min. Off
    20% Duty Cycle 8 Min. On / 30 Min. Off
    25% Duty Cycle 10 Min. On / 30 Min. Off
    30% Duty Cycle 13 Min. On / 30 Min. Off
    33% Duty Cycle 15 Min. On / 30 Min. Off
    40% Duty Cycle 20 Min. On / 30 Min. Off
    100% Duty Cycle Continous Duty @ 100PSI @ 72F




    Our Advantages

    1 . One year warranty

    2 . Competitive price among manufactures



    3 . Portable to carry with



    4. Fast inflation and low noise

    5.Can be pumped more than 20 , 000 times



    6. Water proof : Can work in the water for 2 hours , IP67
