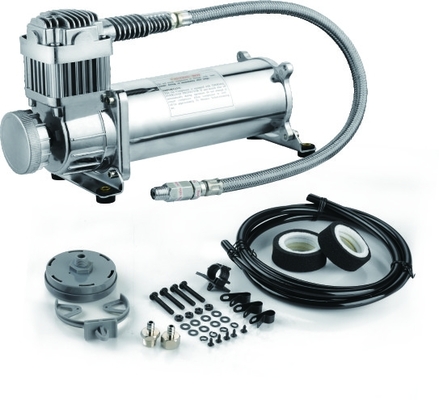

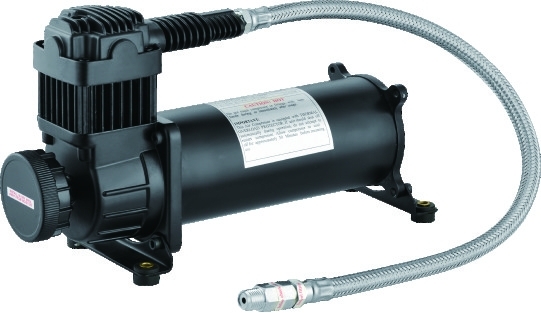

Custom Heavy Duty Air Lift Suspension System With Air Bag And Air Horn

Custom Heavy Duty Air Lift Suspension System With Air Bag And Air Horn

    • Custom Heavy Duty Air Lift Suspension System With Air Bag And Air Horn
    • Custom Heavy Duty Air Lift Suspension System With Air Bag And Air Horn
  • Custom Heavy Duty Air Lift Suspension System With Air Bag And Air Horn

    Product Details:

    Place of Origin: CHINA
    Brand Name: YURUI
    Certification: CE
    Model Number: YF6469R

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Consultation
    Packaging Details: Bag with Foam, Color box and Strong Carton
    Delivery Time: 30 days after receiving 30% deposit
    Payment Terms: T/T
    Supply Ability: 4500pcs per month
    Contact Now
    Detailed Product Description
    Material: Metal Brand: OEM
    Voltage: 12V Current: DC
    Air Flow: 70L/Min Moisture Resistant: IP67
    Original: China Power: Heavy Duty

    Black And Silver Suspension System Fast Inflation Heavy Duty Strong Power



    The ability to individually inflate & deflate your airbags dependently.



    SPECIFICATION



    1.75CFM 200 PSI



    12 Volt

    Duty Cycle:100% @ 100PSI

    Duty Cycle:50% @ 200PSI

    Max Working Pressure :200PSI

    12V Max Amp Draw: 23Amps

    1/4”NPT Inlet port

    Net Weight:10.8lbs

    11”Lx4”Wx6.85”H









    PERFORMANCE DATA



    PSI 0 40 90 150 200
    AMPS 11 17 21 22 19
    CFM 1.75 1.34 1.05 0.74 0.56
    LPM 50 38 30 21 16
    BAR 0 3 6 10 14





    RECOMMENDED TANK



    TANK FILL DATA



    2.5 Gallon Tank

    0        to     200 psi 4 min 58 sec

    150     to     200 psi 1 min 50 sec







    Used with



    Air tanks in different sizes

    Pneumatic system

    Air horns





    Our Advantages



    1 . One year warranty



    2 . Competitive price among manufactures



    3 . Portable to carry with



    4. Fast inflation and low noise



    5.Can be pumped more than 20 , 000 times





    6. Water proof : Can work in the water for 2 hours , IP67
