Product Details:
|
| Material: | Metal | Brand: | OEM |
|---|---|---|---|
| Voltage: | 12V | Current: | DC |
| CFM: | 2.18 | Moisture Resistant: | IP67 |
| Original: | China | Power: | Heavy Duty |
| High Light: | Air Lift Suspension System,Air Lift Compressor |
||

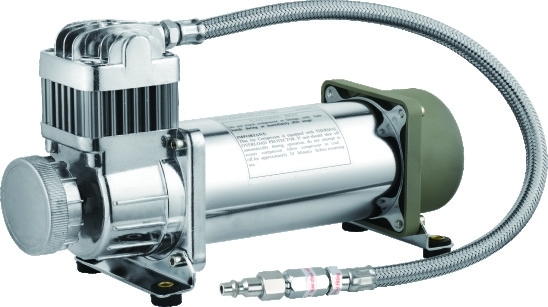

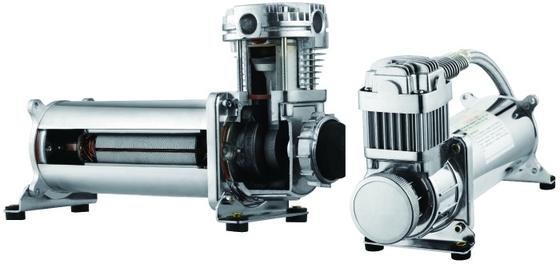

Silver Steel Air Suspension System Fast Inflation Heavy Duty Strong Power For Car
►Used with
• Air tanks in different sizes
• Pneumatic system
• Air horns
• Air spring
►SPECIFICATION
2.18 CFM 150 PSI
12 Volt
Duty Cycle:33% @ 100PSI
Max Working Pressure :150PSI
12V Max Amp Draw: 25Amps
1/4”NPT Inlet port
Net Weight:8.8lbs
11.25”Lx4”Wx6.5”H
►PERFORMANCE DATA
| PSI | 0 | 40 | 90 | 150 |
| AMPS | 15 | 23 | 24 | 25 |
| CFM | 2.18 | 1.48 | 1.2 | 0.84 |
| LPM | 62 | 42 | 34 | 24 |
| BAR | 0 | 3 | 6 | 10 |
► RECOMMENDED TANK
TANK FILL DATA
2.0 Gallon Tank
0 to150 psi 2 min 5 sec
120 to150 psi 40 sec
► Packing:
Poly bag/Color box/Blister bag/Bubble bag
Customized package also available with MOQ 1000pcs
► Shipping
1) Small order: By express, DHL/ UPS/ Fedex/ EMS etc.
Having our own Top VIP&UPS account, 3~5 working days arrive to worldwide, no delay during festivals.
2) Large order: By sea or By air
3) Choose the best and convenient way for your need
