Steel Silver Dual Packs Air Lift Suspension Compressor Fast Inflation For Car Heavy Duty Strong Power

Steel Silver Dual Packs Air Lift Suspension Compressor Fast Inflation For Car Heavy Duty Strong Power

    • Steel Silver Dual Packs Air Lift Suspension Compressor Fast Inflation For Car Heavy Duty Strong Power
    • Steel Silver Dual Packs Air Lift Suspension Compressor Fast Inflation For Car Heavy Duty Strong Power
  • Steel Silver Dual Packs Air Lift Suspension Compressor Fast Inflation For Car Heavy Duty Strong Power

    Product Details:

    Place of Origin: CHINA
    Brand Name: YURUI
    Certification: CE
    Model Number: YF6470R DUAL

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Consultation
    Packaging Details: Bag with Foam, Color box and Strong Carton
    Delivery Time: 30 days after receiving 30% deposit
    Payment Terms: T/T
    Supply Ability: 4500pcs per month
    Contact Now
    Detailed Product Description
    Material: Metal Brand: OEM
    Voltage: 12V Current: DC
    CFM: 4.5 Moisture Resistant: IP67
    Original: China Power: Heavy Duty

    Steel Silver Dual Packs Air Suspension System Fast Inflation For Car Heavy Duty Strong Power











    Used with



    Air tanks in different sizes

    Pneumatic system

    Air horns

    Air spring





    Our Advantages



    1 . One year warranty



    2 . Competitive price among manufactures



    3 . Portable to carry with



    4. Fast inflation and low noise



    5.Can be pumped more than 20 , 000 times





    6. Water proof : Can work in the water for 2 hours , IP67









    SPECIFICATION



    4.5 CFM 150PSI



    12 Volt

    Duty Cycle:33% @ 100PSI

    Max Working Pressure :150PSI

    Max Amp Draw: 60Amps

    1/4”NPT Inlet port

    Net Weight:16.4lbs

    P/N 9.45”Lx4”Wx6.85”H

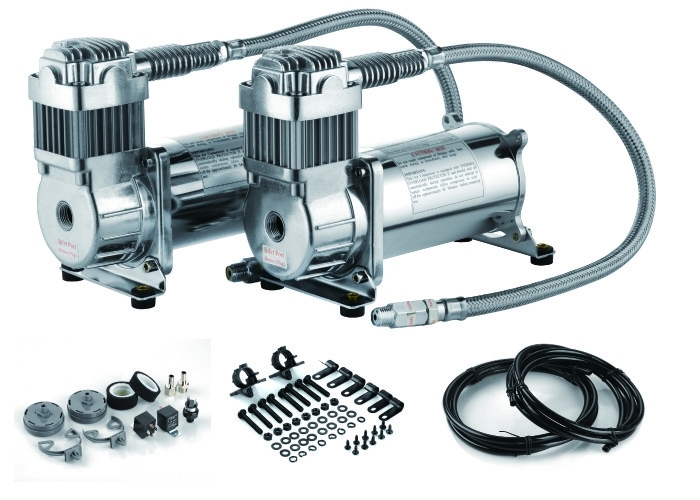

    PARTS INCLUDED



    (2)YF6470R Compressors

    (2)Air Filter Assemblies

    (2)Leader Hose Clips

    (2)Remote Mount Brackets

    (2)Sets of Remote Mount Fittings

    (2)Air Line Clips with Included Hardware

    (2)Sets of Nuts Bolts Washers and Lock Washers

    (2)Heavy Duty 60Amp Relays

    (1)One Heavy Duty Pressure Switch(110psi on, 145psi off)

    Air Line(For Remote Mount Filter Installation)





    PERFORMANCE DATA



    PSI 0 40 90 150
    AMPS 36 46 52 48
    CFM 4.5 3.4 2.6 1.6
    LPM 128 96 73 48
    BAR 0 3 6 10





    RECOMMENDED TANK



    TANK FILL DATA



    2.5 Gallon Tank

    0 to 150 psi 1 min 12 sec

    120 to 150 psi 22 sec

    5.0 Gallon Tank

    0 to 150 psi 2 min 31 sec

    120 to 150 psi 46 sec



    Steel Silver Dual Packs Air Lift Suspension Compressor Fast Inflation For Car Heavy Duty Strong Power
