Dc 24V/12v Car Air Compressor For Air Ride Suspension OffRoad Vehicle
  • Dc 24V/12v Car Air Compressor For Air Ride Suspension OffRoad Vehicle
  • Dc 24V/12v Car Air Compressor For Air Ride Suspension OffRoad Vehicle
  • Dc 24V/12v Car Air Compressor For Air Ride Suspension OffRoad Vehicle

Dc 24V/12v Car Air Compressor For Air Ride Suspension OffRoad Vehicle

Place of Origin CHINA
Brand Name N / M
Certification CE&ROHS
Model Number YF6355R
Product Details
Power:
Heavy Duty
Material:
Chrome
Color:
Silver
Voltage:
12V
Brand:
OEM
Moisture Resistant:
IP67
Application:
On-board Air System, Car Tuning, Off-board Car
Recommended Parts:
Air Tank
High Light:

suspension air pump

,

air ride pump

Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
First wrapped with high-quality carrying bag, then with color box, finally Strong Carton
Delivery Time
30 days after receiving 30% deposit
Payment Terms
T/T, L/C
Supply Ability
4500pcs per month
Product Description

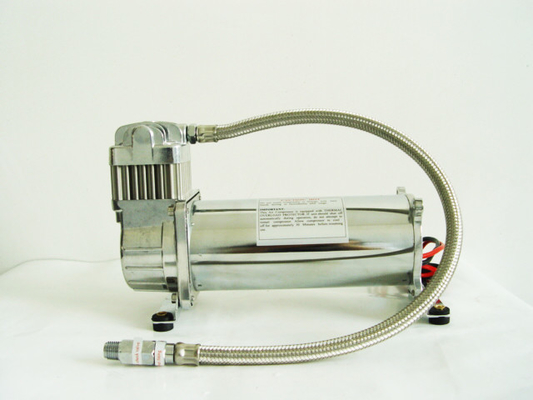

Yurui 6355R 12V Or 24V 150psi Fast Inflation Air Ride Suspension Compressor


► Description
YF6355R is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation. Always integrated into on-board air system.

Commonly used must with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It automatically turns on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation when the environment changes. The compressor is furnished with a thermal overload protector which will turn off the unit if overheated.
 Dc 24V/12v Car Air Compressor For Air Ride Suspension OffRoad Vehicle 0


► Used with
Air tanks in different sizes
Pneumatic system
Air horns

► Our Advantages
1 . One year warranty
2 . Competitive price than other manufactures
3 . Portable to carry with
4 . Fast inflation and low noise
5 . Can be pumped more than 20 , 000 times
6 . Anti-dust and explosion-proof
7 . Water resistant : IP 67, working in the water for 2 hours



► SPECIFICATION
1.40CFM 12V 150PSI
1.50CFM 24V 150PSI
• 12 Volt
• Duty Cycle: 33% @ 100 PSI
• Max. Working Pressure: 150 PSI
• 12V Max. Amp Draw: 22 Amps
• 24V Max. Amp Draw: 12 Amps
• 3/8"NPT Inlet port
• Net Weight: 6.6lbs
8 "Lx4"Wx6.45"H

► PERFORMANCE DATA 12V


PSI 0 40 90 150
AMPS 11 16 18 18
CFM 1.4 1.03 0.9 0.74
LPM 40 32 26 21
BAR 0 3 6 10


RECOMMENDED TANKDc 24V/12v Car Air Compressor For Air Ride Suspension OffRoad Vehicle 1
TANK FILL DATA 12V
2.0 Gallon Tank
0 to 150 psi 3min 55 sec
120 to 150 psi 50 sec
► PERFORMANCE DATA 24V

PSI 0 40 90 150
AMPS 6 9 10 11
CFM 1.5 1.27 1.02 0.77
LPM 42 36 29 22
BAR 0 3 6 10


► RECOMMENDED TANKDc 24V/12v Car Air Compressor For Air Ride Suspension OffRoad Vehicle 2
TANK FILL DATA 24V
2.0 Gallon Tank
0 to 150 psi 3 min 15 sec
120 to 150 psi 46 sec



♦ DUTY CYCLE REFERENCE CHART


Duty Cycle: 100PSI @ 72F Max. Run Time / Min. Rest Time
Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%
9% Duty Cycle 3 Min. On / 30 Min. Off
10% Duty Cycle 3 Min. On / 30 Min. Off
15% Duty Cycle 6 Min. On / 30 Min. Off
20% Duty Cycle 8 Min. On / 30 Min. Off
25% Duty Cycle 10 Min. On / 30 Min. Off
30% Duty Cycle 13 Min. On / 30 Min. Off
33% Duty Cycle 15 Min. On / 30 Min. Off
40% Duty Cycle 20 Min. On / 30 Min. Off
100% Duty Cycle Continous Duty @ 100PSI @ 72F





Dc 24V/12v Car Air Compressor For Air Ride Suspension OffRoad Vehicle 3
