Fast Inflation Portable Durable Air Bag Suspension Compressor Steel 12v Compressor With Tank

Certification
China Yuyao City Yurui Electrical Appliance Co., Ltd. certification
China Yuyao City Yurui Electrical Appliance Co., Ltd. certification
Customer Reviews
You have the best service with good sellers. You solve every problem our customers have. Wish we have good cooperation all the time.

—— Stan Solow

Your boss is a very nice guy with professional engineering knowledges. You have considerable service and more importantly, listen to customers words.

—— Mehmet Onemli

I'm Online Chat Now

Fast Inflation Portable Durable Air Bag Suspension Compressor Steel 12v Compressor With Tank

Fast Inflation Portable Durable Air Bag Suspension Compressor Steel 12v Compressor With Tank
Fast Inflation Portable Durable Air Bag Suspension Compressor Steel 12v Compressor With Tank Fast Inflation Portable Durable Air Bag Suspension Compressor Steel 12v Compressor With Tank Fast Inflation Portable Durable Air Bag Suspension Compressor Steel 12v Compressor With Tank Fast Inflation Portable Durable Air Bag Suspension Compressor Steel 12v Compressor With Tank

Large Image :  Fast Inflation Portable Durable Air Bag Suspension Compressor Steel 12v Compressor With Tank

Product Details:
Place of Origin: CHINA
Brand Name: YURUI
Certification: CE&ROHS
Model Number: YF6455AH
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Can be discussed
Packaging Details: Color box with foam and strong carton
Delivery Time: 30 days after receiving 30% deposit
Payment Terms: T/T, L/C
Supply Ability: 3500pcs 4 weeks

Fast Inflation Portable Durable Air Bag Suspension Compressor Steel 12v Compressor With Tank

Description
Water Resistant: IP67 Color: Black Andsilver
Material: Steel Original: China
Brand: OEM Application: On-board Air System, Car Tuning, Off-board Car
Recommended Parts: Air Tank Power: Heavy Duty
High Light:

air ride air compressor

,

air bag suspension compressor

Fast Inflation Portable Durable Chrome Steel 12V Air Ride Suspension Compressor





► Description

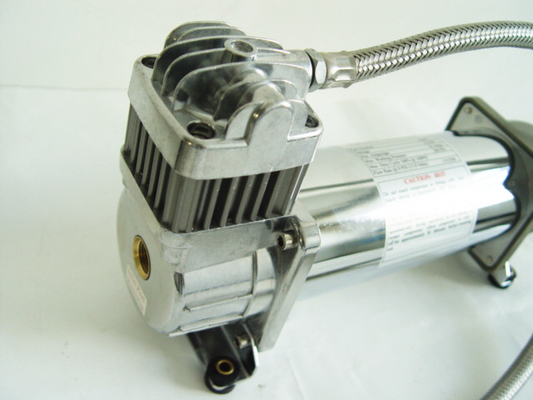

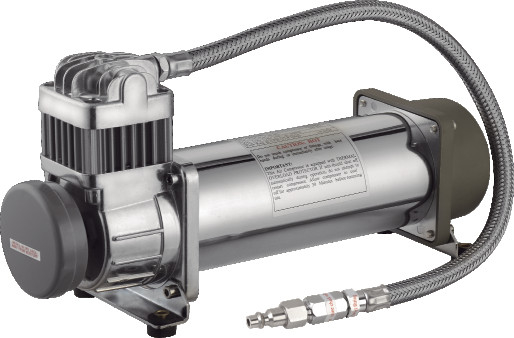

 YF6455AH is a hardmount compressor that pumps a massive 2.18 CFM flow at zero PSI head pressure. The 400H comes with a built-in, moisture resistant ON/OFF power switch. Features include a heavy duty stainless steel leader hose with a 1/4” quick connect stud for hookup to a coil hose and insulated wiring for simple installation.





► Used with



Air tanks in different sizes

Pneumatic system

Air horns





► Our Advantages



1 . One year warranty

2 . Competitive price than other manufactures

3 . Portable to carry with

4 . Fast inflation and low noise

5 . Can be pumped more than 20 , 000 times

6 . Anti-dust and explosion-proof

7 . Water resistant : IP 67, working in the water for 2 hours






► SPECIFICATION



  1.75CFM 150PSI



• 12 Volt

• Duty Cycle: 100% @ 100 PSI

• Duty Cycle: 50% @ 200 PSI

• Max. Working Pressure: 200 PSI

• 12V Max. Amp Draw: 23 Amps

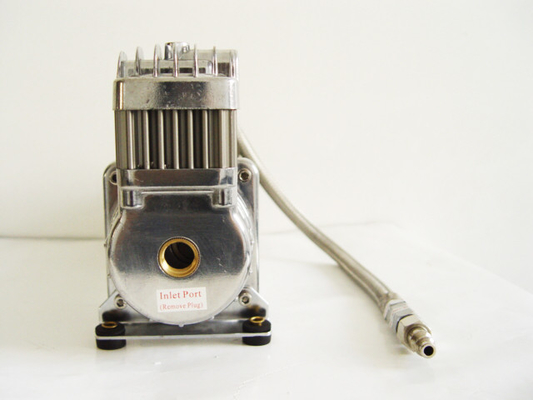

• 1/4"NPT Inlet port

• Net Weight: 11 lbs

12"Lx4"Wx6.55"H





PERFORMANCE DATA



PSI 0 40 90 150
AMPS 11 17 21 22
CFM

1.75

1.34 1.05 0.74
LPM 50 38 30 21
BAR 0 3 6 10






►  RECOMMENDED TANKFast Inflation Portable Durable Air Bag Suspension Compressor Steel 12v Compressor With Tank 0

TANK FILL DATA



2.5 Gallon Tank

0       to 150 psi     4 min 58 sec

120   to150 psi               50 sec




♦ DUTY CYCLE REFERENCE CHART



Duty Cycle: 100PSI @ 72F Max. Run Time / Min. Rest Time



Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%

9% Duty Cycle 3 Min. On / 30 Min. Off
10% Duty Cycle 3 Min. On / 30 Min. Off
15% Duty Cycle 6 Min. On / 30 Min. Off
20% Duty Cycle 8 Min. On / 30 Min. Off
25% Duty Cycle 10 Min. On / 30 Min. Off
30% Duty Cycle 13 Min. On / 30 Min. Off
33% Duty Cycle 15 Min. On / 30 Min. Off
40% Duty Cycle 20 Min. On / 30 Min. Off
100% Duty Cycle Continous Duty @ 100PSI @ 72F




Fast Inflation Portable Durable Air Bag Suspension Compressor Steel 12v Compressor With Tank 1
