Heavy Duty Air Ride Suspension Compressor Truck Offroad Metal Air Ride Pneumatic 12v Chrome

Product Details:

Place of Origin:	China
Brand Name:	N / M
Certification:	CE And Rohs
Model Number:	YF6455

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Ask for Advice
Packaging Details:	Bubble Bag with Foam, Color box and Strong Carton
Delivery Time:	One month after receiving 30% deposit
Supply Ability:	3500 pcs 4 weeks

Contact Now

Detailed Product Description

Water Resistant:	IP 67	Color:	Black And Silver
Material:	Steel	Original:	China
Power:	Heavy Duty	Brand:	OEM
Voltage:	12V	Air Flow:	70L/Min
Highlight:	air bag suspension compressor , air ride compressor and tank

YF6455B Portable Off Road Suspension Compressor

► Description

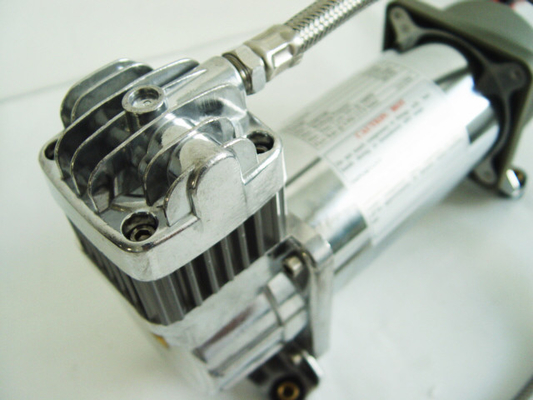

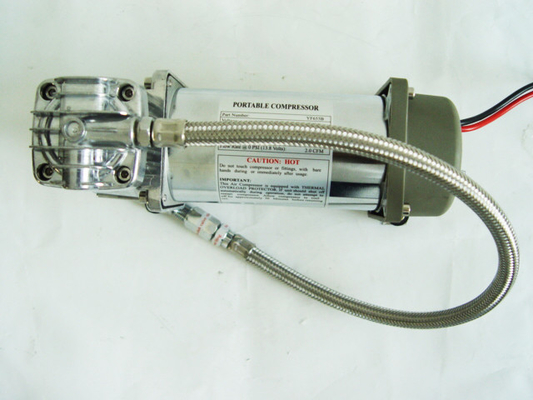

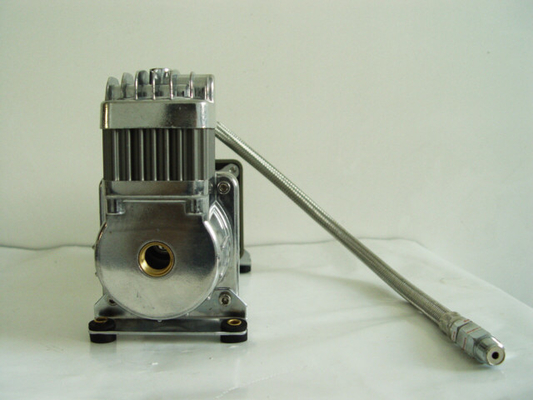

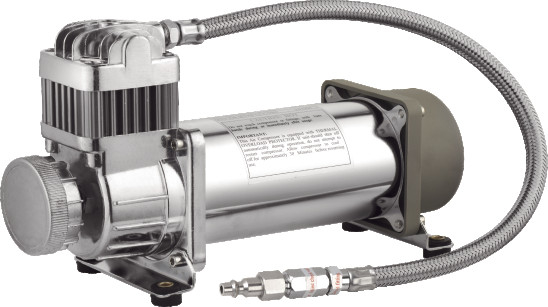

YF6455BH is a hardmount compressor that pumps a massive 2.18CFM flow at zero PSI head pressure. The 400H comes with a built-in, moisture resistant ON-OFF power switch. Features include a heavy duty stainless steel leader hose with a 1/4” quick connect stud for hookup to a coil hose and insulated wiring for simple installation.

►Company information:

Yuyao Yurui Electrical is a professional factory dealing in the suspension air compressor, inflator, car fan vacuum cleaners, heater fans and other car accessories. With more than 15 years history, we have our own inspection team that is around 15 persons and engineers 3 persons. That controls the quality and explore new products.

► Used with

• Air tanks in different sizes

• Pnuematic system

• Air horns

► Our Advantages

1 . One year warranty

2 . Competitive price among manufactures

3 . Portable to carry with

4 . High quality

5 . Can be pumped more than 20 , 000 times

6 . Fast inflation and low noise

7 . Anti-dust and explosion-proof

8 . Water resistant : IP 67, working in the water for 2 hours

► SPECIFICATION

2.18CFM 150PSI

• 12 Volt

• Duty Cycle: 33% @ 100 PSI

• Max. Working Pressure: 150 PSI

• 12V Max. Amp Draw: 30 Amps

• 1/4"NPT Inlet port

• Net Weight: 8.95 lbs

11.25"Lx4"Wx6.75"H

►PERFORMANCE DATA

PSI	0	40	90	150
AMPS	15	23	24	25
CFM	2.18	1.48	1.2	0.84
LPM	62	42	34	24
BAR	0	3	6	10

► RECOMMENDED TANK

TANK FILL DATA

2.0 Gallon Tank

0 to 150 psi 2 min 5 sec

120 to 150 psi 40 sec

♦ DUTY CYCLE REFERENCE CHART

Duty Cycle: 100PSI @ 72◦F	Max. Run Time / Min. Rest Time	Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%
9% Duty Cycle	3 Min. On / 30 Min. Off
10% Duty Cycle	3 Min. On / 30 Min. Off
15% Duty Cycle	6 Min. On / 30 Min. Off
20% Duty Cycle	8 Min. On / 30 Min. Off
25% Duty Cycle	10 Min. On / 30 Min. Off
30% Duty Cycle	13 Min. On / 30 Min. Off
33% Duty Cycle	15 Min. On / 30 Min. Off
40% Duty Cycle	20 Min. On / 30 Min. Off
100% Duty Cycle	Continous Duty @ 100PSI @ 72◦F
