Dual Head Air Suspension Compressor Double Cylinder For Car Tire Inflation

Dual Head Air Suspension Compressor Double Cylinder For Car Tire Inflation

Brand Name: YURUI
Model Number: YF6456R-2box
MOQ: Negotiable
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 80000 sets / month
Detail Information
Place of Origin:
china
Certification:
CE
Voltage:
DC12V
Max Amperage::
45A
Max Pressure:
300psi
Air Flow Rate:
4.2CFN
Duty Cycle:
30% @ 100psi
Size Of Port:
3/8NPT
Recommend Air Tank Size:
2.5gallon
Filter:
2 Filters
Item Number:
YF6456R-2 Box
Number Of Cylinder:
Two
Packaging Details:
plastic box, strong carton
Supply Ability:
80000 sets / month
Highlight:

Double Head Air Suspension Compressor

,

Dual Cylinder Air Suspension Compressor

,

3/8 NPT Air Suspension Compressor

Product Description

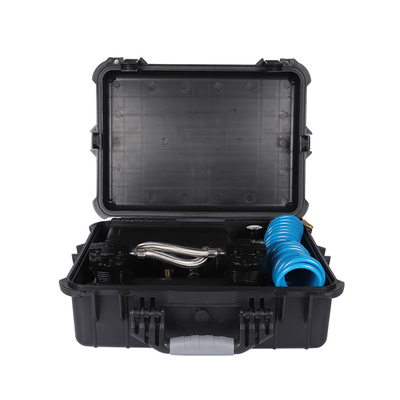

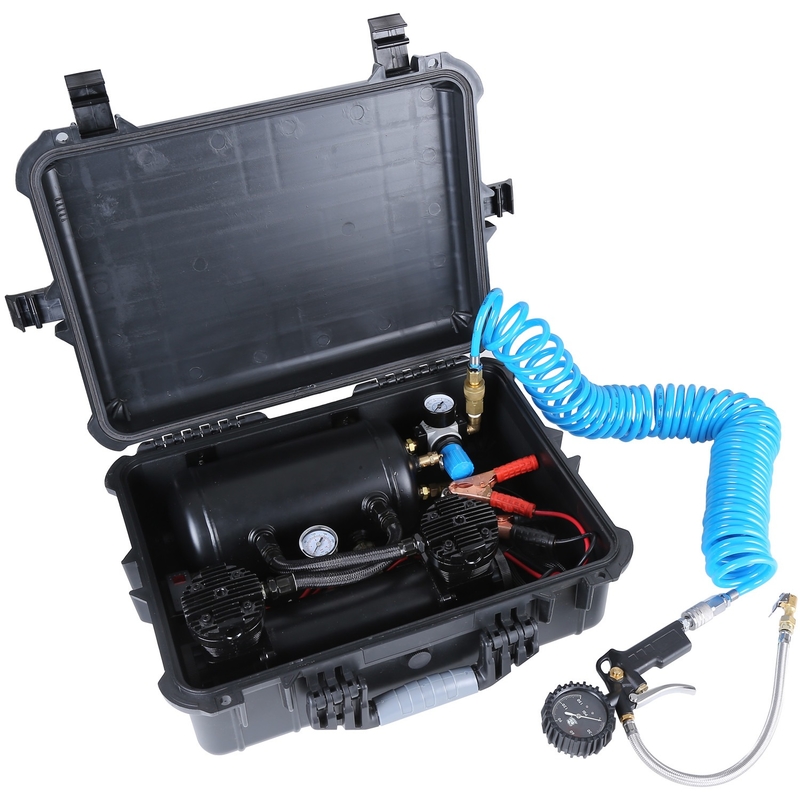

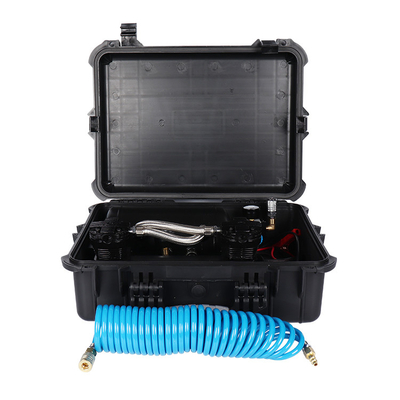

Double cylinder compressor dual head air suspension compressor kit with air tank for car tire inflation heavy duty





Description:



A portable compressor with air tank kit brings you fantastic feelings when you drive outside.   The two head cylinder helps compressor with fast inflation. The 1 gallon air tank store the air whenever you need the air. It inflate the tire and also the air tools at the same time.

If necessary, we can also provide the extensive air hose for you to reach the length you want. The storage cloth bag can also be provided, if you need.



Specification :

Voltage DC12V
air flow rate: 4.2cfm
max pressure 300psi
duty cycle 30%@100psi
DC12V max amp draw: 45A
port size 3/8'' NPT inlet port
New weight  13.94lbs
size 13.98"L x4"W x6.55"H
air tank size 1 gallon



Dual Head Air Suspension Compressor Double Cylinder For Car Tire Inflation 0Dual Head Air Suspension Compressor Double Cylinder For Car Tire Inflation 1Dual Head Air Suspension Compressor Double Cylinder For Car Tire Inflation 2



Application:

1.Vehicle Tires: This air compressorre used to inflate or top up the air pressure in car, truck, motorcycle, or any other vehicle tires.
2.Bicycle Tires: Cyclists often use tire inflator pumps to ensure their bike tires are properly inflated.
Proper tire pressure can improve the performance of the bicycle and make rides more comfortable.
3.Emergency Situations: Keeping a tire inflator pump in your vehicle can be invaluable during emergencies such as flat tires.
It allows drivers to quickly inflate tires and get back on the road without having to rely on external assistance.



How to ues a car tyre inflator:

1.Check the Recommended Pressure:
Refer to the vehicle’s manual or the tire placard (usually found on the driver’s side door jamb) for the recommended tire pressure.
2.Prepare the Inflator:
Ensure the inflator is properly connected to the power source.
Attach the hose to the tire valve.
3.Inflate the Tire:
Turn on the inflator and monitor the pressure gauge.
Inflate to the recommended pressure level.
If the inflator has an automatic shut-off feature, set the desired pressure and let it inflate.
4.Check and Adjust:
After inflating, use a tire pressure gauge to check the pressure.
If necessary, add or release air to achieve the correct pressure.



Factory:



20 years air suspension compressor factory founded since 1999.
