Dc 24V/12v Car Air Compressor For Air Ride Suspension OffRoad Vehicle

Name: Dc 24V/12v Car Air Compressor For Air Ride Suspension OffRoad Vehicle
Brand: Yuyao City Yurui Electrical Appliance Co., Ltd.
SKU: YF6355R
Price: 14.00 USD
Availability: InStock

Brand Name:	N / M
Model Number:	YF6355R
MOQ:	Negotiation
Price:	Negotiation
Payment Terms:	T/T, L/C
Supply Ability:	4500pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE&ROHS

Power:

Heavy Duty

Material:

Chrome

Color:

Silver

Voltage:

12V

Brand:

OEM

Moisture Resistant:

IP67

Application:

On-board Air System, Car Tuning, Off-board Car

Recommended Parts:

Air Tank

Packaging Details:

First wrapped with high-quality carrying bag, then with color box, finally Strong Carton

Supply Ability:

4500pcs per month

Highlight:

suspension air pump

air ride pump

Product Description

Yurui 6355R 12V Or 24V 150psi Fast Inflation Air Ride Suspension Compressor

► Description
YF6355R is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation. Always integrated into on-board air system.

Commonly used must with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It automatically turns on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation when the environment changes. The compressor is furnished with a thermal overload protector which will turn off the unit if overheated.

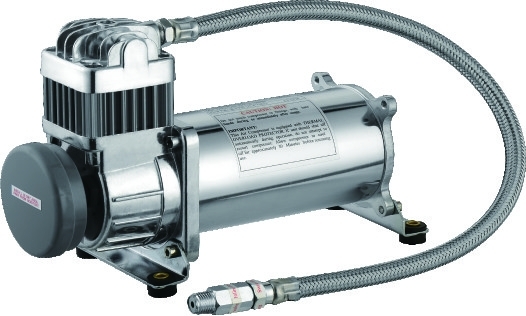

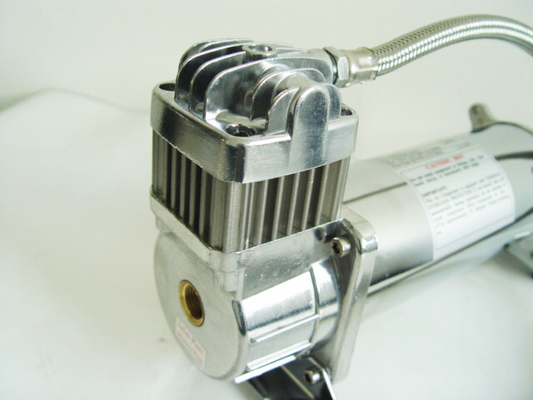

Dc 24V/12v Car Air Compressor For Air Ride Suspension OffRoad Vehicle 0

► Used with
• Air tanks in different sizes
• Pneumatic system
• Air horns

► Our Advantages
1 . One year warranty
2 . Competitive price than other manufactures
3 . Portable to carry with
4 . Fast inflation and low noise
5 . Can be pumped more than 20 , 000 times
6 . Anti-dust and explosion-proof
7 . Water resistant : IP 67, working in the water for 2 hours

► SPECIFICATION
1.40CFM 12V 150PSI
1.50CFM 24V 150PSI
• 12 Volt
• Duty Cycle: 33% @ 100 PSI
• Max. Working Pressure: 150 PSI
• 12V Max. Amp Draw: 22 Amps
• 24V Max. Amp Draw: 12 Amps
• 3/8"NPT Inlet port
• Net Weight: 6.6lbs
8 "Lx4"Wx6.45"H

► PERFORMANCE DATA 12V

PSI	0	40	90	150
AMPS	11	16	18	18
CFM	1.4	1.03	0.9	0.74
LPM	40	32	26	21
BAR	0	3	6	10

►RECOMMENDED TANK
TANK FILL DATA 12V
2.0 Gallon Tank
0 to 150 psi 3min 55 sec
120 to 150 psi 50 sec
► PERFORMANCE DATA 24V

PSI	0	40	90	150
AMPS	6	9	10	11
CFM	1.5	1.27	1.02	0.77
LPM	42	36	29	22
BAR	0	3	6	10

► RECOMMENDED TANK
TANK FILL DATA 24V
2.0 Gallon Tank
0 to 150 psi 3 min 15 sec
120 to 150 psi 46 sec

♦ DUTY CYCLE REFERENCE CHART

Duty Cycle: 100PSI @ 72◦F	Max. Run Time / Min. Rest Time	Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%
9% Duty Cycle	3 Min. On / 30 Min. Off
10% Duty Cycle	3 Min. On / 30 Min. Off
15% Duty Cycle	6 Min. On / 30 Min. Off
20% Duty Cycle	8 Min. On / 30 Min. Off
25% Duty Cycle	10 Min. On / 30 Min. Off
30% Duty Cycle	13 Min. On / 30 Min. Off
33% Duty Cycle	15 Min. On / 30 Min. Off
40% Duty Cycle	20 Min. On / 30 Min. Off
100% Duty Cycle	Continous Duty @ 100PSI @ 72◦F

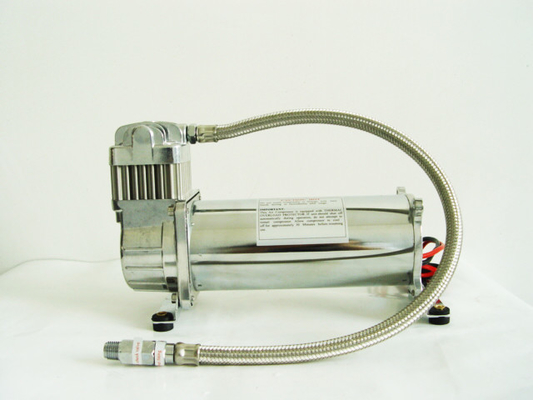

Dc 24V/12v Car Air Compressor For Air Ride Suspension OffRoad Vehicle 3
