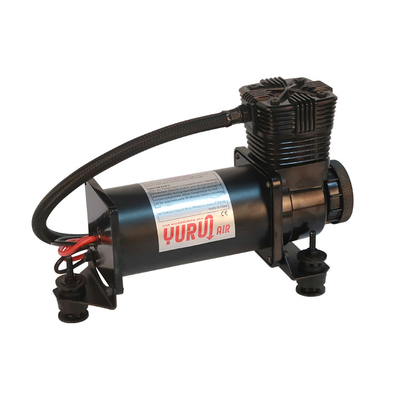

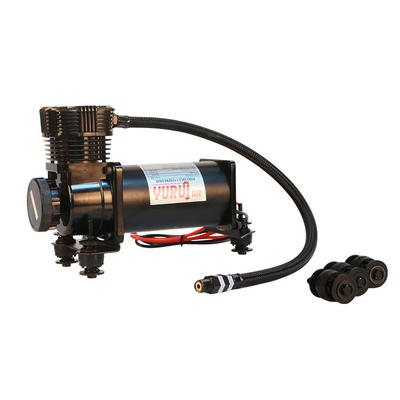

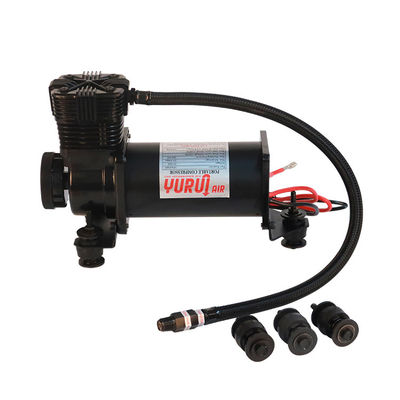

Low Noise Air Suspension Pump For Air Spring With Air Tank Suspension Compressor Low Rider

Low Noise Air Suspension Pump For Air Spring With Air Tank Suspension Compressor Low Rider

Brand Name:	YURUI
Model Number:	YF6380J
MOQ:	20pcs
Price:	ask sales for idea
Payment Terms:	L/C, T/T, Western Union, D/P
Supply Ability:	80000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Color:

Black Or Chrome

Voltage:

DC12V

Noise Level:

60dB

NPT:

1/4 NPT

Feet:

3 Cusion Feet With Spring

Duty Cycle:

100%@100PSI

Max Pressure:

200psi

Air Filter:

Silent Air Filter

Air Hose:

Stainless Steel

Air Flow Rate:

1.4CFM

Packaging Details:

white box and strong carton

Supply Ability:

80000pcs per month

Highlight:

Air Spring Suspension Pump DC12V

Low Noise Air Suspension Pump

Air Tank Suspension Compressor Low Rider

Product Description

Air Suspension Pump with Low Noise for Air Ride for Air Spring with Air Tank Suspension Compressor Low Rider

Quite compressor

►Description

This compressor has been especially designed to not only fill your tank quicker than other pumps on the market, but also to be Much quieter.

A unique spring mountin design to reduce vibration and to cut down on noise even more. This makes your air ride journey a lot more pleasurable.

Especially , when the electric car fashion is more strong. A quiet vibe in the car is required.

►Specification

Voltage	DC12V
Motor	Permanent Magnetic Motor
Duty cycle	100%@100PSI
Duty cycle	100%@200PSI
Max pressure	300PSI
Max working pressure	200PSI
Max amperage Draw	16Amps

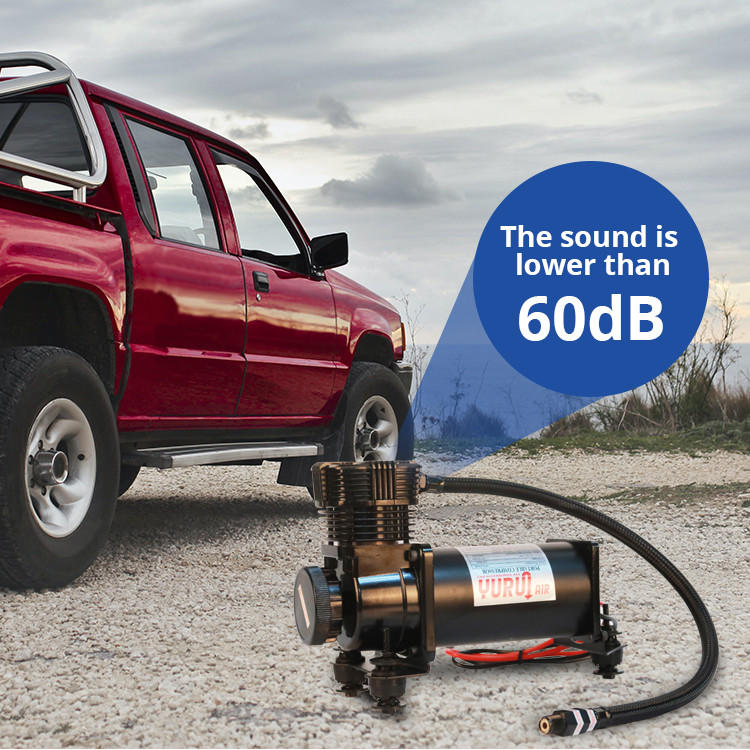

Max noise	60dB
Port size	1/4NPT
New weight	8.36lbs
Air flow rate	1.4CFM
Size	27"Lx11.5"Wx16"H

Low Noise Air Suspension Pump For Air Spring With Air Tank Suspension Compressor Low Rider 0

Low Noise Air Suspension Pump For Air Spring With Air Tank Suspension Compressor Low Rider 1

►Performance data

PSI	0	40	90	150	200
AMPS	8	12	14	15	13
CFM	1.4	1.1	0.7	0.63	0.56
LMP	40	30	22	18	16
BAR	0	3	6	10	14

► TANK FILL DATA

1.0 GALLON TANK

0 to 200psi: 2min 50sec

150-200psi:50sec

Low Noise Air Suspension Pump For Air Spring With Air Tank Suspension Compressor Low Rider 2
