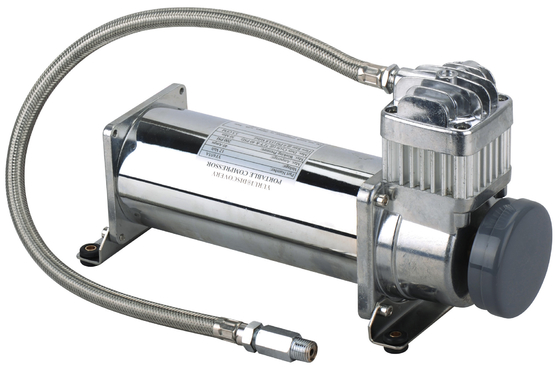

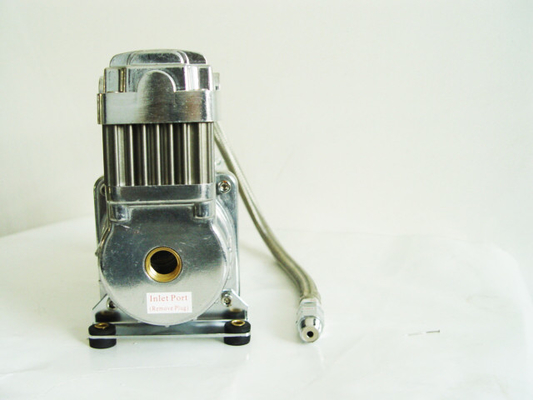

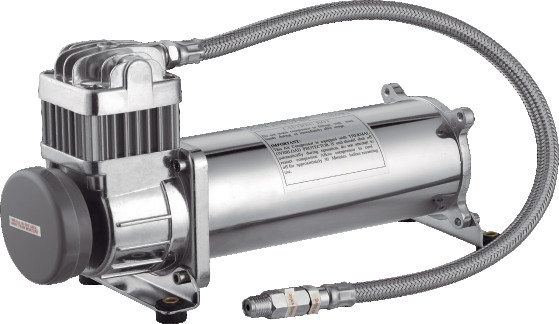

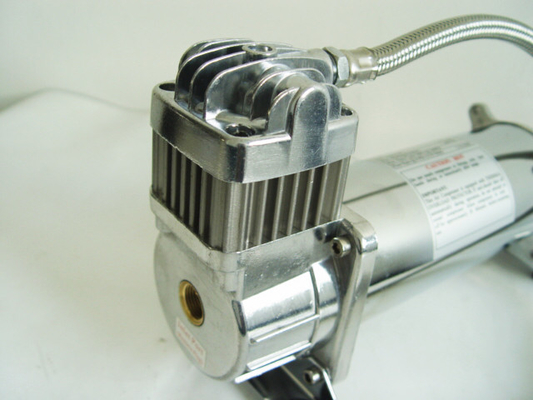

Chrome Car Ride Air Suspension Pump Car Tuning Dc 12V For OffRoad Vehicles

Portable Chrome Air Suspension Compressor 12V 40A For Off Road Vehicles

► Description

YF6455AR is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation. Always integrated into on-board air system.

Commonly used must with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It automatically turns on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation when the environment changes.

► Used with

• Air tanks in different sizes

• Pneumatic system

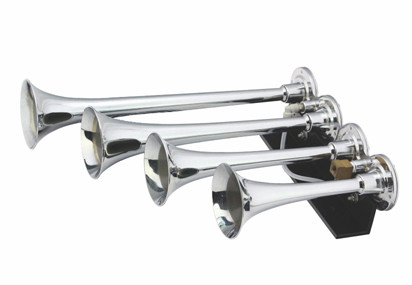

• Air horns

► Our Advantages

1 . One year warranty

2 . Competitive price than other manufactures

3 . Portable to carry with

4 . Fast inflation and low noise

5 . Can be pumped more than 20 , 000 times

6 . Anti-dust

7 . Water resistant : IP 67, working in the water for 2 hours

►SPECIFICATION

1.75CFM 200PSI

• 12 Volt

• Duty Cycle: 100% @ 100 PSI

• Duty Cycle: 50% @ 200 PSI

• Max. Working Pressure: 200 PSI

• 12V Max. Amp Draw: 23 Amps

• 1/4"NPT Inlet port

• Net Weight: 10.5lbs

11"Lx4"Wx6.5"H

► PERFORMANCE DATA

►How to guarantee your after sales service?

1. We check every item’s quality during the production

2. Recheck the products before shipment to ensure our packaging in good condition.

3. Track and receive feedback from our customer.

► RECOMMENDED TANK

TANK FILL DATA

2.5 Gallon Tank

0       to 200 psi 4 min 58 sec

150   to 200 psi 1 min 50 sec

♦ DUTY CYCLE REFERENCE CHART
