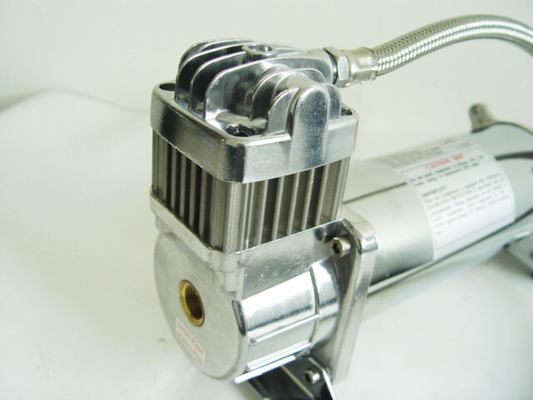

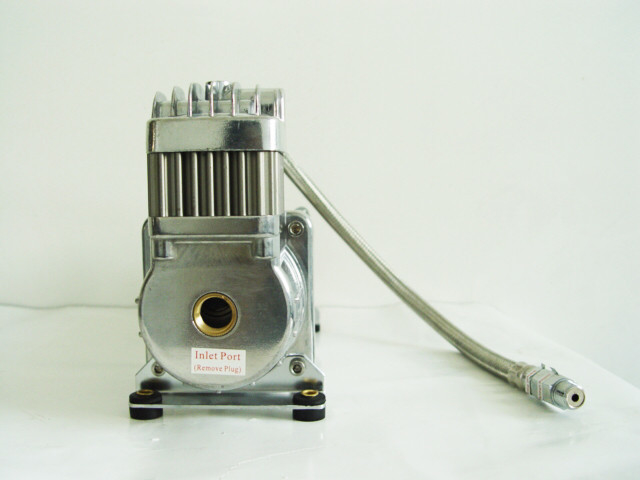

Remote Mount Air Filter 12V Car Air Suspension Compressor with Air Tank

Remote Mount Air Filter 12V Car Air Suspension Compressor with Air Tank

    • Remote Mount Air Filter 12V Car Air Suspension Compressor with Air Tank
    • Remote Mount Air Filter 12V Car Air Suspension Compressor with Air Tank
  • Remote Mount Air Filter 12V Car Air Suspension Compressor with Air Tank

    Product Details:

    Place of Origin: CHINA
    Brand Name: YURUI
    Certification: CE&ROHS
    Model Number: YF6455BR

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Consultation
    Packaging Details: Color box with foam and strong carton
    Delivery Time: 30 days after receiving 30% deposit
    Payment Terms: T/T
    Supply Ability: 4000pcs per month
    Contact Now
    Detailed Product Description
    Water Resistant: IP67 Material: Steel
    Color: Black Or Silver Origin: China
    Application: On-board Air System, Car Tuning, Off-board Car Power: Heavy Duty
    Brand: OEM Voltage: 12V

    Remote Mount Air Filter 12V Air Suspension Compressor with Air Tank for Off-Road Car





    Description









    Used with



    Air tanks in different sizes

    Pneumatic system

    Air horns





    Our Advantages



    1 . One year warranty

    2 . Competitive price than other manufactures

    3 . Portable to carry with

    4 . Fast inflation and low noise

    5 . Can be pumped more than 20 , 000 times

    6 . Anti-dust and explosion-proof

    7 . Water resistant : IP 67, working in the water for 2 hours






    SPECIFICATION



    2.18CFM 150PSI



    • 12 Volt

    • Duty Cycle: 33% @ 100 PSI

    • Max. Working Pressure: 150 PSI

    • 12V Max. Amp Draw: 25 Amps

    • 1/4"NPT Inlet port

    • Net Weight: 8.1 lbs

    9.25"Lx4"Wx6.5"H



    PERFORMANCE DATA





    PSI 0 40 90 150
    AMPS 15 23 24 25
    CFM 2.18 1.48 1.2 0.84
    LPM 62 42 34 24
    BAR 0 3 6 10





    ► RECOMMENDED TANKRemote Mount Air Filter 12V Car Air Suspension Compressor with Air Tank

    TANK FILL DATA



    2.0 Gallon Tank

    0       to 150 psi    2 min 5 sec

    120   to 150 psi            40 sec




    ♦ DUTY CYCLE REFERENCE CHART




    Remote Mount Air Filter 12V Car Air Suspension Compressor with Air Tank
