OffRoad 4WD Air Pneumatic Suspension Compressor For Vehicle Air Ride Compressor

Product Details:

Place of Origin:	CHINA
Brand Name:	YURUI
Certification:	CE&ROHS
Model Number:	YF6455BR

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Can be discussed
Packaging Details:	Color box with foam and strong carton
Delivery Time:	30 days after receiving 30% deposit
Payment Terms:	L/C, T/T
Supply Ability:	4000pcs per month

Contact Now

Detailed Product Description

Water Resistant:	IP 67	Color:	Black And Silver
Power:	Heavy Duty	Material:	Steel
Voltage:	12V	Original:	China
Highlight:	auto air compressor , suspension air compressor

Remote Mount Air Filter 12V Air Suspension Compressor with Air Tank for Off-Road Car

► Description

YF6455BR is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation. Always integrated into on-board air system.

Commonly used must with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It automatically turns on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation when the environment changes. The compressor is furnished with a thermal overload protector which will turn off the unit if overheated.

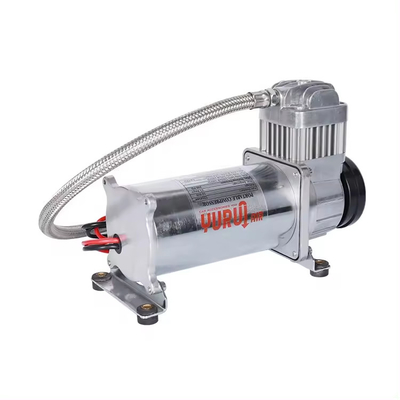

OffRoad 4WD Air Pneumatic Suspension Compressor For Vehicle Air Ride Compressor 0

► Used with

• Air tanks in different sizes

• Pneumatic system

• Air horns

► Our Advantages

1 . One year warranty

2 . Competitive price than other manufactures

3 . Portable to carry with

4 . Fast inflation and low noise

5 . Can be pumped more than 20 , 000 times

6 . Anti-dust

7 . Water resistant : IP 67, working in the water for 2 hours

► SPECIFICATION

2.18CFM 150PSI

• 12 Volt

• Duty Cycle: 33% @ 100 PSI

• Max. Working Pressure: 150 PSI

• 12V Max. Amp Draw: 25 Amps

• 1/4"NPT Inlet port

• Net Weight: 11 lbs

9.25"Lx4"Wx6.5"H

► PERFORMANCE DATA

PSI	0	40	90	150
AMPS	15	23	24	25
CFM	2.18	1.48	1.2	0.84
LPM	62	42	34	24
BAR	0	3	6	10

► RECOMMENDED TANK

TANK FILL DATA

2.0 Gallon Tank

0 to 150 psi 2 min 05sec

120 to 150 psi 40 sec

♦ DUTY CYCLE REFERENCE CHART

Duty Cycle: 100PSI @ 72◦F	Max. Run Time / Min. Rest Time	Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%
9% Duty Cycle	3 Min. On / 30 Min. Off
10% Duty Cycle	3 Min. On / 30 Min. Off
15% Duty Cycle	6 Min. On / 30 Min. Off
20% Duty Cycle	8 Min. On / 30 Min. Off
25% Duty Cycle	10 Min. On / 30 Min. Off
30% Duty Cycle	13 Min. On / 30 Min. Off
33% Duty Cycle	15 Min. On / 30 Min. Off
40% Duty Cycle	20 Min. On / 30 Min. Off
100% Duty Cycle	Continous Duty @ 100PSI @ 72◦F
