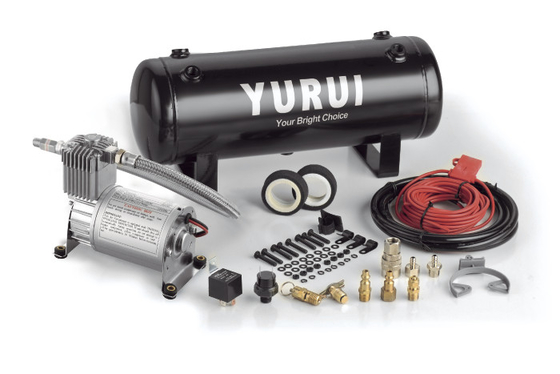

Quarter Duty Cycle Onboard Air System Air compressor with 1.0 Gallon Tank for car tuning and pneumatic needs with CE
► Description

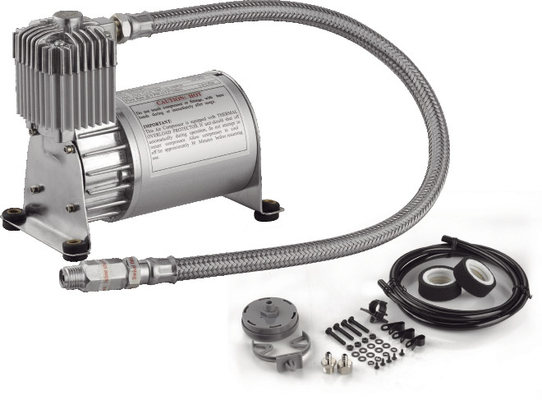

YF7003 is an installation type air suspension pump with tanks, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation. Always integrated into on-board air system.
Commonly used must with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It automatically turns on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation when the environment changes. The compressor is furnished with a thermal overload protector which will turn off the unit if overheated.
Packaging & Shipping
Packing:Poly bag or Color box
Shipping:
1) Small order: By express, DHL/ UPS/ Fed ex/ EMS etc.
2) Large order: By sea or By air
3) Choose the best and convenient way for your need
► PERFORMANCE DATA
PSI | 0 | 40 | 90 | 140 |
AMPS | 11 | 17 | 20 | 18 |
CFM | 1.9 | 1.5 | 1.0 | 0.74 |
LPM | 53 | 42 | 28 | 21 |
BAR | 0 | 3 | 6 | 10 |
TANK FILL DATA
1.0 Gallon Tank
0 to 140 psi 1 min 28 sec
100 to 140 psi 30 sec
DUTY CYCLE REFERENCE CHART
Duty Cycle: 100PSI @ 72◦F | Max. Run Time / Min. Rest Time |
Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle% |
9% Duty Cycle | 3 Min. On / 30 Min. Off | |
10% Duty Cycle | 3 Min. On / 30 Min. Off | |
15% Duty Cycle | 6 Min. On / 30 Min. Off | |
20% Duty Cycle | 8 Min. On / 30 Min. Off | |
25% Duty Cycle | 10 Min. On / 30 Min. Off | |
30% Duty Cycle | 13 Min. On / 30 Min. Off | |
33% Duty Cycle | 15 Min. On / 30 Min. Off | |
40% Duty Cycle | 20 Min. On / 30 Min. Off | |
100% Duty Cycle | Continous Duty @ 100PSI @ 72◦F |
