YF6456R DUAL Fancy Look Immediate Inflation Black And Silver Color Dual Air Compressor Dual Packs Heavy Duty Steel Excellent Quality
PERFORMANCE VALUE PACK
3.5 CFM 200PSI
► SPECIFICATIONS
12 Volt
Duty Cycle:100% @ 100PSI
Duty Cycle:50% @ 200PSI
Max Working Pressure :200PSI
Max Amp Draw: 45Amps
3/8”NPT Inlet port
Net Weight:22lbs
P/N 11”Lx4”Wx6.55”H

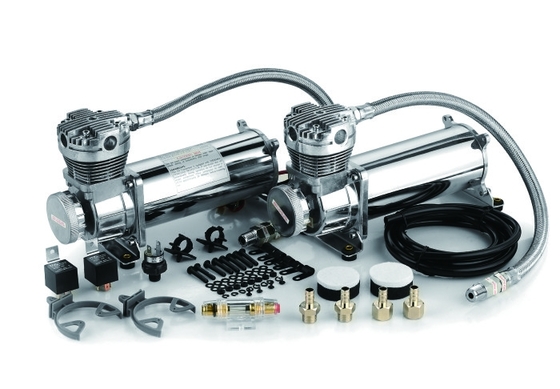

►P ARTS INCLUDED
(2) YF6456 Compressors
(2) Air filter Assemblies
(2) Leader Hose Clips
(2) Remote Mount Brackets
(2) Sets of Remote Mount Fittings
(2) Air Line Clips with Included Hardware
(2) Sets of Nuts Bolts Washers and Lock Washers
(2) Heavy Duty 40Amp Relays
(1) One Heavy Duty Pressure Switch(165psi on, 200psi off)
Air Line(For Remote Mount Filter Installation)
► PERFORMANCE DATA
PSI | 0 | 40 | 90 | 150 | 200 |
AMPS | 24 | 34 | 38 | 40 | 38 |
CFM | 3.5 | 2.7 | 2.2 | 1.6 | 1.2 |
LPM | 100 | 78 | 62 | 46 | 33 |
BAR | 0 | 3 | 6 | 10 |
14 |
► TANK FILL DATA
2.5 Gallon Tank
0 to 200 psi 2 min 30 sec
150 to 200 psi 40 sec
5.0 Gallon Tank
0 to 200 psi 5 min 10 sec
150 to 200 psi 1 min 30 sec
► Our Advantages
1 . Competitive price than other manufactures
2 . Portable to carry with
3 . Fast inflation and low noise
4 . Can be pumped more than 20 , 000 times
5 . Anti-dust
Please feel free to contact us, we would like to become your professional vendor in this line, and hope we can have a nice and long-term cooperation.
Contact Us at Any Time
