Dual Onboard Air System DC12v Chrome Black Water-Proof Air Tanks Fast Inflation Air Suspension Compressor
  • Dual Onboard Air System DC12v Chrome Black Water-Proof Air Tanks Fast Inflation Air Suspension Compressor
  • Dual Onboard Air System DC12v Chrome Black Water-Proof Air Tanks Fast Inflation Air Suspension Compressor

Dual Onboard Air System DC12v Chrome Black Water-Proof Air Tanks Fast Inflation Air Suspension Compressor

Place of Origin CHINA
Brand Name OEM
Certification CE
Model Number YF7010
Product Details
Moisture Resistant:
IP67
Price:
Competitive
Voltage:
12V
Power:
Heavy Duty
Color:
Silver / Black / Chrome
Condition:
Brand New
Warranty:
12 Months
High Light:

suspension air pump

,

air ride pump

,

Air Suspension Compressor

Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Can Be Discussed
Packaging Details
Bubble Bag with Foam, Color box and Strong Carton
Delivery Time
3500pcs 4 weeks
Payment Terms
T/T, L/C
Product Description

Dual Onboard Air System 12 Volt Silver Black Color With Air Tanks Fast Inflation For Car Tuning And Other Onboard System





► Description

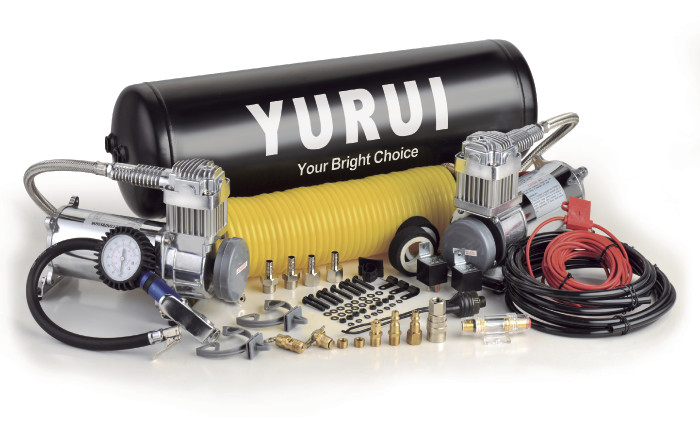

YuRui’s Dual YF6470R Onboard Air System is a pre-packaged compressed air solution that provides two YF6470R,33% duty cycle compressors ,a 2.5 gallon air tank,inline pressure regulation,and all components needed to install a working system capable of inflating tires,managing air locking differentials,and more.





Our Advantages



1 . One year warranty

2 . Fast inflation and low noise

3 . Anti-dust

4 . Water resistant : IP 67, working in the water for 2 hours

5 . All of our products must be checked carefully before shipping








YF7010

4.5CFM    150 PSI

P/N 7010





► PARTS INCLUDED





YF6470R Air Compressor

12 Volt

Duty Cycle:33%@100 PSI

System Max Working Pressure:150 PSI

Max Amp Draw:60 Amps

2.5 Gallon Air Tank

Accessory Airline

Pressure Switch(120PSI on 150 PSI off)

(2)40amp Relay

1/4”NPT Drain Cock

1/4”NPT250PSI Safety Valve

1/4”NPT Quick Connect Stud(F)

1/4”NPT Quick Connect Coupler(M)

(2)8ft Air Hose

25IL Air Hose

Tire Pressure gun

20ft 12 Gauge Wire with Inline Fuse Holder

Electrical Connections





► PERFORMANCE DATA



PSI 0 40 90 150
CFM 4.5 3.45 2.6 1.43
AMPS 30 42 50 48
LPM 127 97 73.6 40.4
BAR 0 3 6 10





► TANK FILL DATA



2.5 Gallon Tank

0 to 150 psi 1 min 12 sec

120 to 150 psi 22 sec





To which places you have exported?



America, Europe, South Asia, and so on.





How about your delivery time?



20-30 working days after we received your deposit.





How to guarantee your after sales service?



1. We check every item’s quality during the production

2. Recheck the products before shipment to ensure our packaging in good condition.

3. Track and receive feedback from our customer.






► DUTY CYCLE REFERENCE CHART





Duty Cycle: 100PSI @ 72F Max. Run Time / Min. Rest Time



Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%

9% Duty Cycle 3 Min. On / 30 Min. Off
10% Duty Cycle 3 Min. On / 30 Min. Off
15% Duty Cycle 6 Min. On / 30 Min. Off
20% Duty Cycle 8 Min. On / 30 Min. Off
25% Duty Cycle 10 Min. On / 30 Min. Off
30% Duty Cycle 13 Min. On / 30 Min. Off
33% Duty Cycle 15 Min. On / 30 Min. Off
40% Duty Cycle 20 Min. On / 30 Min. Off
100% Duty Cycle Continous Duty @ 100PSI @ 72F
