Product Details:
|
| Material: | Steel | Color: | Pewter |
|---|---|---|---|
| Brand: | OEM | Origin: | China |
| Application: | On-board Air System, Car Tuning, Off-board Car | Recommended Parts: | Air Tank |
| Voltage: | 12V | Price: | Competitive |
| High Light: | suspension air pump,air bag suspension pump |
||

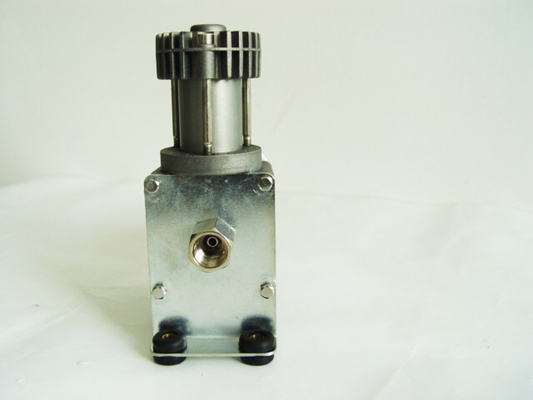

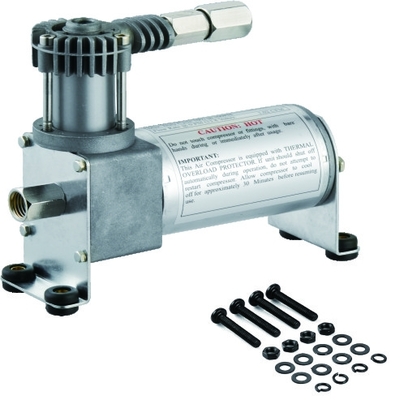

YURUI 6273R Single 120psi Chrome Air Suspension Compressor Stainless Lead Hose
► Description
YF6273R is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation. Always integrated into on-board air system.
Commonly used must with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It automatically turns on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation when the environment changes.
► Used with
• Air tanks in different sizes
• Pneumatic system
• Air horns
► Our Advantages
1 . One year warranty
2 . Competitive price than other manufactures
3 . Portable to carry with
4 . Fast inflation and low noise
5 . Can be pumped more than 20 , 000 times
6 . Anti-dust
7 . Water resistant : IP 54
►SPECIFICATION
1.02CFM 120PSI
• 12 Volt
• Duty Cycle: 100% @ 100 PSI
• Max. Working Pressure: 120 PSI
• Max. Amp Draw: 11Amps
• Inline Check Valve
• Net Weight: 2.41 lbs
5.9"Lx2.1"Wx4.5"H
►PERFORMANCE DATA
| PSI | 0 | 40 | 90 | 130 |
| AMPS | 8 | 9 | 10 | 9 |
| CFM | 1.02 | 0.6 | 0.45 | 0.35 |
| LPM | 29 | 17 | 13 | 10 |
| BAR | 0 | 3 | 6 | 10 |
► RECOMMENDED TANK
TANK FILL DATA
0.5 Gallon Tank
0 to 120 psi 1 min 26 sec
90 to 200 psi 28 sec
♦DUTY CYCLE REFERENCE CHART
| Duty Cycle: 100PSI @ 72◦F | Max. Run Time / Min. Rest Time |
Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle% |
| 9% Duty Cycle | 3 Min. On / 30 Min. Off | |
| 10% Duty Cycle | 3 Min. On / 30 Min. Off | |
| 15% Duty Cycle | 6 Min. On / 30 Min. Off | |
| 20% Duty Cycle | 8 Min. On / 30 Min. Off | |
| 25% Duty Cycle | 10 Min. On / 30 Min. Off | |
| 30% Duty Cycle | 13 Min. On / 30 Min. Off | |
| 33% Duty Cycle | 15 Min. On / 30 Min. Off | |
| 40% Duty Cycle | 20 Min. On / 30 Min. Off | |
| 100% Duty Cycle | Continous Duty @ 100PSI @ 72◦F |
