Air Suspension Compressor
>
|
| Place of Origin | CHINA |
| Brand Name | YURUI |
| Certification | CE&ROHS |
| Model Number | YF6390R |

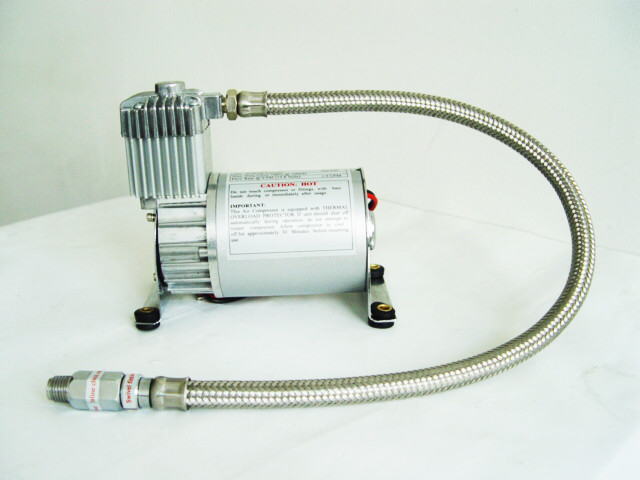

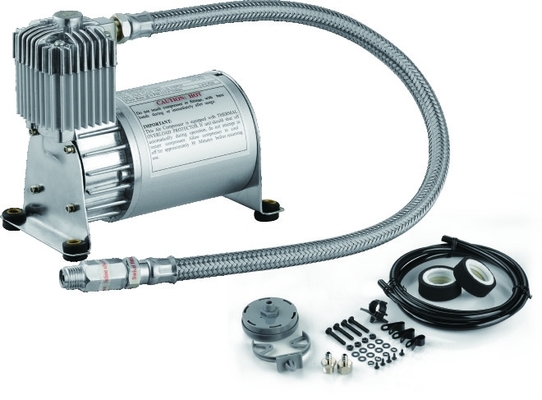

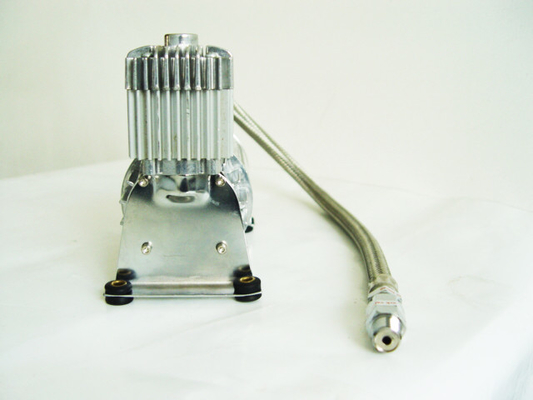

Pewter Air Suspension Compressor YURUI 6390R 150PSI For Air Bag Suspension Horn System
► Description
YF6390R is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation. Always integrated into on-board air system.
Commonly used must with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It automatically turns on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation when the environment changes. The compressor is furnished with a thermal overload protector which will turn off the unit if overheated.
► Used with
• Air tanks in different sizes
• Pneumatic system
• Air horns
► Our Advantages
1 . One year warranty
2 . Competitive price than other manufactures
3 . Portable to carry with
4 . Fast inflation and low noise
5 . Can be pumped more than 20 , 000 times
6 . Anti-dust
7 . Water resistant : IP 54
► SPECIFICATION
1.9CFM 150PSI
• 12 Volt
• Duty Cycle: 25% @ 100 PSI
• Max. Working Pressure:150 PSI
• Max. Amp Draw: 20 Amps
• Net Weight: 5.1 lbs
6.4"Lx3.5"Wx4.6"H
► PERFORMANCE DATA
| PSI | 0 | 40 | 90 | 150 |
| AMPS | 11 | 17 | 20 | 18 |
| CFM | 1.9 | 1.5 | 1.0 | 0.7 |
| LPM | 53 | 42 | 28 | 20 |
| BAR | 0 | 3 | 6 | 10 |
► RECOMMENDED TANK
TANK FILL DATA
1.0 Gallon Tank
0 to 140 psi 1 min 28 sec
100 to 140 psi 30 sec
♦ DUTY CYCLE REFERENCE CHART
| Duty Cycle: 100PSI @ 72◦F | Max. Run Time / Min. Rest Time |
Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle% |
| 9% Duty Cycle | 3 Min. On / 30 Min. Off | |
| 10% Duty Cycle | 3 Min. On / 30 Min. Off | |
| 15% Duty Cycle | 6 Min. On / 30 Min. Off | |
| 20% Duty Cycle | 8 Min. On / 30 Min. Off | |
| 25% Duty Cycle | 10 Min. On / 30 Min. Off | |
| 30% Duty Cycle | 13 Min. On / 30 Min. Off | |
| 33% Duty Cycle | 15 Min. On / 30 Min. Off | |
| 40% Duty Cycle | 20 Min. On / 30 Min. Off | |
| 100% Duty Cycle | Continous Duty @ 100PSI @ 72◦F |
