Air Suspension Compressor
>
|
|
| Place of Origin | CHINA |
| Brand Name | YURUI |
| Certification | CE&ROHS |
| Model Number | YF6355R |

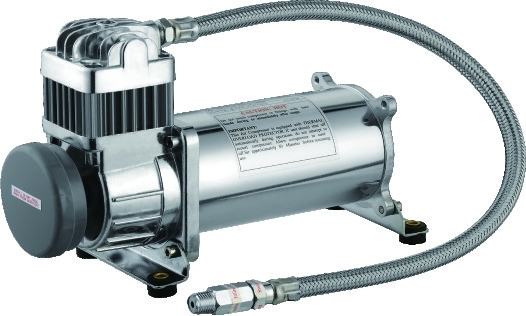

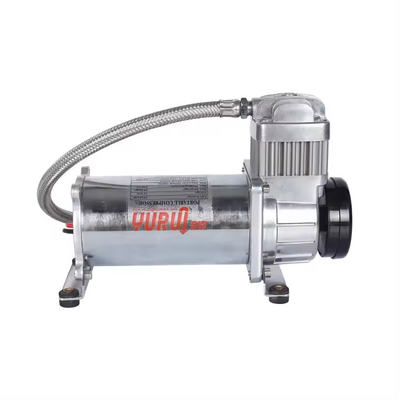

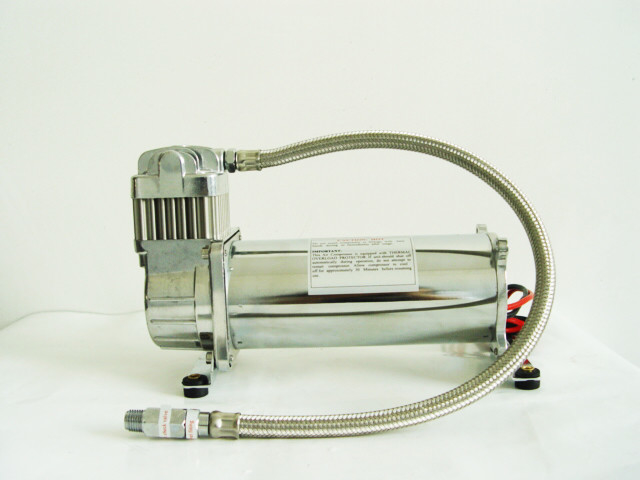

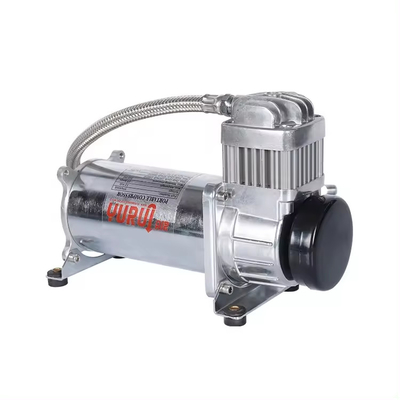

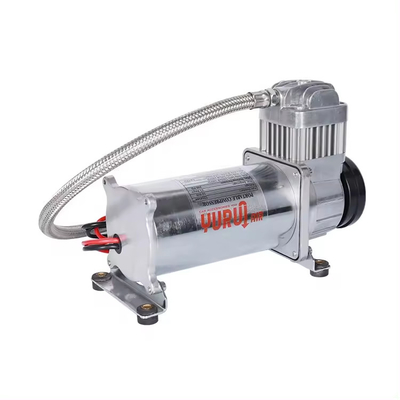

YURUI 6355R 150psi 12V and 24V Pewter Stainless Lead Hose Air Suspension Compressor
► Description
YF6355R is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation. Always integrated into on-board air system.
Commonly used must with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It automatically turns on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation when the environment changes. The compressor is furnished with a thermal overload protector which will turn off the unit if overheated.
► Used with
• Air tanks in different sizes
• Pneumatic system
• Air horns
► Our Advantages
1 . One year warranty
2 . Competitive price than other manufactures
3 . Portable to carry with
4 . Fast inflation and low noise
5 . Can be pumped more than 20 , 000 times
6 . Anti-dust and explosion-proof
7 . Water resistant : IP 67, working in the water for 2 hours
► SPECIFICATION
1. 40CFM 12V 150PSI
1. 50CFM 24V 150PSI
• 12 Volt
• Duty Cycle: 33% @ 100 PSI
• Max. Working Pressure: 150 PSI
• 12V Max. Amp Draw: 22 Amps
• 24V Max. Amp Draw: 12 Amps

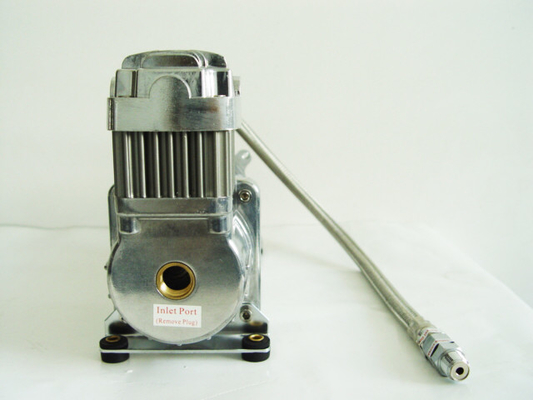

• 3/8"NPT Inlet port
• Net Weight: 6.6lbs
8"Lx4"Wx6.45"H
► PERFORMANCE DATA 12V
| PSI | 0 | 40 | 90 | 150 |
| AMPS | 11 | 16 | 18 | 18 |
| CFM | 1.4 | 1.03 | 0.9 | 0.74 |
| LPM | 40 | 32 | 26 | 21 |
| BAR | 0 | 3 | 6 | 10 |
►RECOMMENDED TANK
TANK FILL DATA 12V
2.0 Gallon Tank
0 to 150 psi 3min 55 sec
120 to 150 psi 50 sec
►PERFORMANCE DATA 24V
| PSI | 0 | 40 | 90 | 150 |
| AMPS | 6 | 9 | 10 | 11 |
| CFM | 1.5 | 1.27 | 1.02 | 0.77 |
| LPM | 42 | 36 | 29 | 22 |
| BAR | 0 | 3 | 6 | 10 |
► RECOMMENDED TANK
TANK FILL DATA 24V
2.0 Gallon Tank
0 to 150 psi 3 min 15 sec
120 to 150 psi 46 sec
♦ DUTY CYCLE REFERENCE CHART
| Duty Cycle: 100PSI @ 72◦F | Max. Run Time / Min. Rest Time | Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle% |
| 9% Duty Cycle | 3 Min. On / 30 Min. Off | |
| 10% Duty Cycle | 3 Min. On / 30 Min. Off | |
| 15% Duty Cycle | 6 Min. On / 30 Min. Off | |
| 20% Duty Cycle | 8 Min. On / 30 Min. Off | |
| 25% Duty Cycle | 10 Min. On / 30 Min. Off | |
| 30% Duty Cycle | 13 Min. On / 30 Min. Off | |
| 33% Duty Cycle | 15 Min. On / 30 Min. Off | |
| 40% Duty Cycle | 20 Min. On / 30 Min. Off | |
| 100% Duty Cycle | Continous Duty @ 100PSI @ 72◦F |
