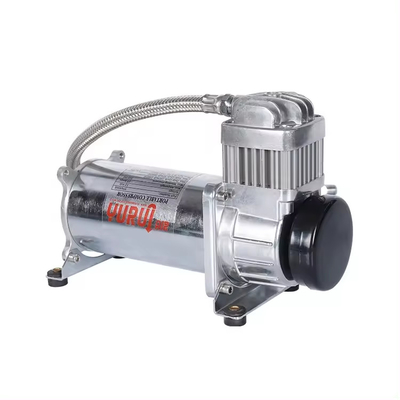

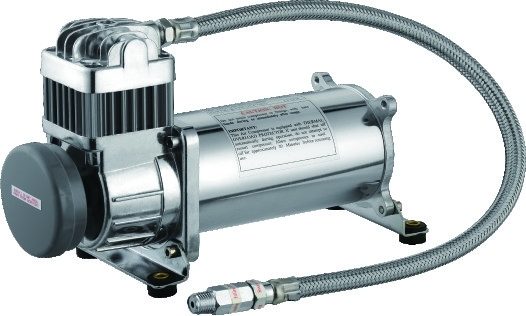

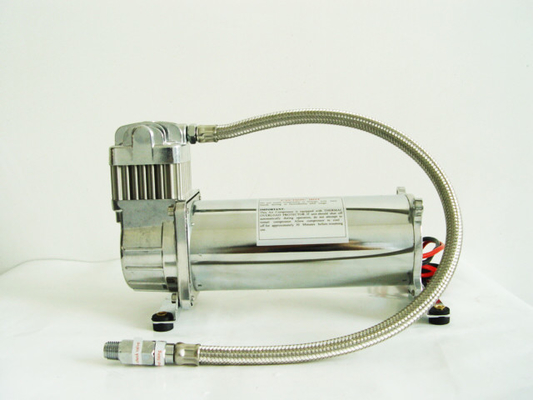

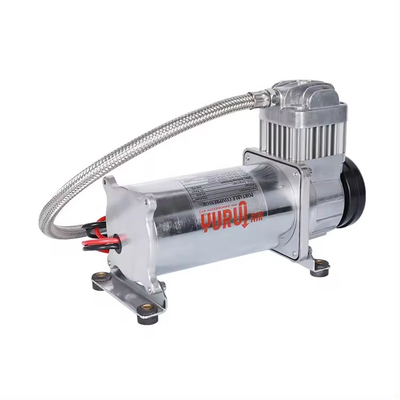

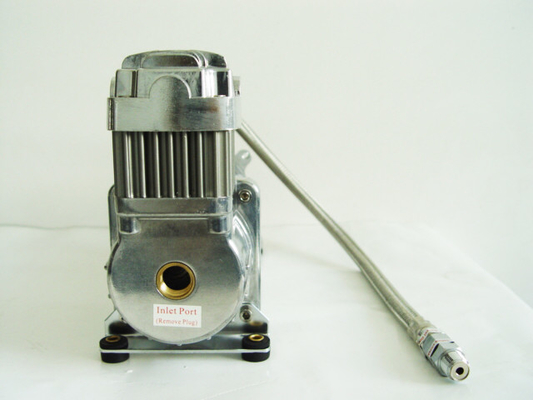

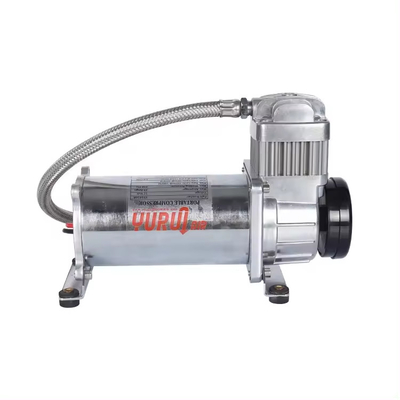

Truck Offroad Metal Air Ride Pneumatic Dc12v Car Air Compressor For Air Tool Brake With Tank Suspension Pump

Truck Offroad Metal Air Ride Pneumatic Dc12v Car Air Compressor For Air Tool Brake With Tank Suspension Pump
Truck Offroad Metal Air Ride Pneumatic Dc12v Car Air Compressor For Air Tool Brake With Tank Suspension Pump
Truck Offroad Metal Air Ride Pneumatic Dc12v Car Air Compressor For Air Tool Brake With Tank Suspension Pump Truck Offroad Metal Air Ride Pneumatic Dc12v Car Air Compressor For Air Tool Brake With Tank Suspension Pump Truck Offroad Metal Air Ride Pneumatic Dc12v Car Air Compressor For Air Tool Brake With Tank Suspension Pump Truck Offroad Metal Air Ride Pneumatic Dc12v Car Air Compressor For Air Tool Brake With Tank Suspension Pump Truck Offroad Metal Air Ride Pneumatic Dc12v Car Air Compressor For Air Tool Brake With Tank Suspension Pump Truck Offroad Metal Air Ride Pneumatic Dc12v Car Air Compressor For Air Tool Brake With Tank Suspension Pump Truck Offroad Metal Air Ride Pneumatic Dc12v Car Air Compressor For Air Tool Brake With Tank Suspension Pump

Large Image :  Truck Offroad Metal Air Ride Pneumatic Dc12v Car Air Compressor For Air Tool Brake With Tank Suspension Pump

Product Details:
Place of Origin: CHINA
Brand Name: YURUI
Certification: CE&ROHS
Model Number: YF6355R
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Consultation
Packaging Details: First wrapped with high-quality carrying bag, then with color box, finally Strong Carton
Delivery Time: 30 days after receiving 30% deposit
Payment Terms: T/T, L/C
Supply Ability: 4000pcs 30 days

Truck Offroad Metal Air Ride Pneumatic Dc12v Car Air Compressor For Air Tool Brake With Tank Suspension Pump

Description
Material: Steel Brand: OEM
Origin: China Voltage: 12V
Moisture Resistant: IP67 Application: On-board Air System, Car Tuning, Off-board Car
Recommended Parts: Air Tank Price:: Competitive
High Light:

auto air compressor

,

suspension air compressor

YURUI 6355R 150psi 12V and 24V Pewter Stainless Lead Hose Air Suspension Compressor

 Truck Offroad Metal Air Ride Pneumatic Dc12v Car Air Compressor For Air Tool Brake With Tank Suspension Pump 0
► Description
YF6355R is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation. Always integrated into on-board air system.
Commonly used must with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It automatically turns on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation when the environment changes. The compressor is furnished with a thermal overload protector which will turn off the unit if overheated.
► Used with
Air tanks in different sizes
Pneumatic system
Air horns
► Our Advantages
1 . One year warranty
2 . Competitive price than other manufactures
3 . Portable to carry with
4 . Fast inflation and low noise
5 . Can be pumped more than 20 , 000 times
6 . Anti-dust and explosion-proof
7 . Water resistant : IP 67, working in the water for 2 hours




► SPECIFICATION
1. 40CFM 12V 150PSI
1. 50CFM 24V 150PSI
• 12 Volt
• Duty Cycle: 33% @ 100 PSI
• Max. Working Pressure: 150 PSI
• 12V Max. Amp Draw: 22 Amps
• 24V Max. Amp Draw: 12 Amps
• 3/8"NPT Inlet port
• Net Weight: 6.6lbs
8"Lx4"Wx6.45"H
► PERFORMANCE DATA 12V

PSI 0 40 90 150
AMPS 11 16 18 18
CFM 1.4 1.03 0.9 0.74
LPM 40 32 26 21
BAR 0 3 6 10


RECOMMENDED TANKTruck Offroad Metal Air Ride Pneumatic Dc12v Car Air Compressor For Air Tool Brake With Tank Suspension Pump 1
TANK FILL DATA 12V
2.0 Gallon Tank
0 to 150 psi 3min 55 sec
120 to 150 psi 50 sec
PERFORMANCE DATA 24V

PSI 0 40 90 150
AMPS 6 9 10 11
CFM 1.5 1.27 1.02 0.77
LPM 42 36 29 22
BAR 0 3 6 10


► RECOMMENDED TANKTruck Offroad Metal Air Ride Pneumatic Dc12v Car Air Compressor For Air Tool Brake With Tank Suspension Pump 2
TANK FILL DATA 24V
2.0 Gallon Tank
0 to 150 psi 3 min 15 sec
120 to 150 psi 46 sec



♦ DUTY CYCLE REFERENCE CHART


Duty Cycle: 100PSI @ 72F Max. Run Time / Min. Rest Time
Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%
9% Duty Cycle 3 Min. On / 30 Min. Off
10% Duty Cycle 3 Min. On / 30 Min. Off
15% Duty Cycle 6 Min. On / 30 Min. Off
20% Duty Cycle 8 Min. On / 30 Min. Off
25% Duty Cycle 10 Min. On / 30 Min. Off
30% Duty Cycle 13 Min. On / 30 Min. Off
33% Duty Cycle 15 Min. On / 30 Min. Off
40% Duty Cycle 20 Min. On / 30 Min. Off
100% Duty Cycle Continous Duty @ 100PSI @ 72F




Truck Offroad Metal Air Ride Pneumatic Dc12v Car Air Compressor For Air Tool Brake With Tank Suspension Pump 3
