Product Details:
|
| Voltage: | 12V | Brand: | OEM |
|---|---|---|---|
| Material: | Chrome | Color: | Silver |
| Power: | Heavy Duty | Moisture Resistant: | IP67 |
| High Light: | heavy duty air compressor,suspension air compressor |
||

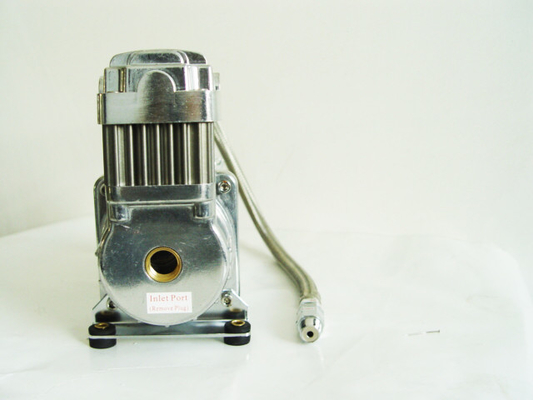

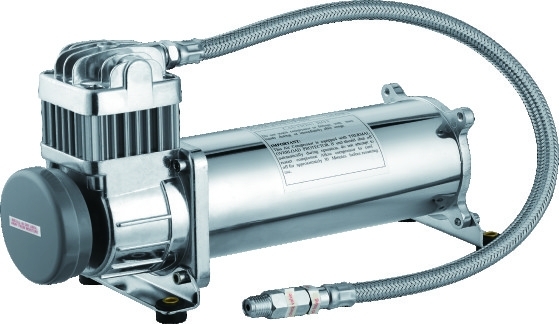

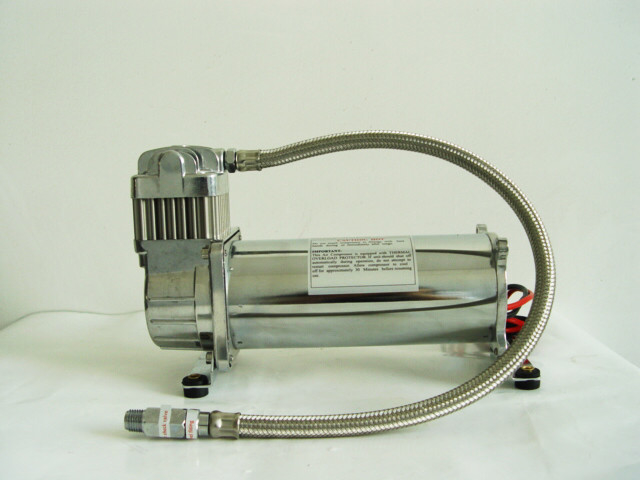

YURUI YF6455AR 200PSI Single Chrome 12V Stainless Lead Hose Air Suspension Compressor
► Description
YF6455AR is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation. Always integrated into on-board air system.
Commonly used must with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It automatically turns on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation when the environment changes.
► Used with
• Air tanks in different sizes
• Pneumatic system
• Air horns
► Our Advantages
1 . One year warranty
2 . Competitive price than other manufactures
3 . Portable to carry with
4 . Fast inflation and low noise
5 . Can be pumped more than 20 , 000 times
6 . Anti-dust and explosion-proof
7 . Water resistant : IP 67, working in the water for 2 hours
►SPECIFICATION
1.75CFM 200PSI
• 12 Volt
• Duty Cycle: 100% @ 100 PSI
• Duty Cycle: 50% @ 200 PSI
• Max. Working Pressure: 200 PSI
• 12V Max. Amp Draw: 23 Amps
• 1/4"NPT Inlet port
• Net Weight: 10.5lbs
11"Lx4"Wx6.5"H
► PERFORMANCE DATA
| PSI | 0 | 40 | 90 | 150 | 200 |
| AMPS | 11 | 17 | 21 | 22 | 19 |
| CFM | 1.8 | 1.34 | 1.05 | 0.74 | 0.56 |
| LPM | 51 | 38 | 30 | 21 | 16 |
| BAR | 0 | 3 | 6 | 10 | 14 |
► RECOMMENDED TANK
TANK FILL DATA
2.5 Gallon Tank
0 to 200 psi 4 min 58 sec
150 to 200 psi 1 min 50 sec
♦ DUTY CYCLE REFERENCE CHART
| Duty Cycle: 100PSI @ 72◦F | Max. Run Time / Min. Rest Time |
Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle% |
| 9% Duty Cycle | 3 Min. On / 30 Min. Off | |
| 10% Duty Cycle | 3 Min. On / 30 Min. Off | |
| 15% Duty Cycle | 6 Min. On / 30 Min. Off | |
| 20% Duty Cycle | 8 Min. On / 30 Min. Off | |
| 25% Duty Cycle | 10 Min. On / 30 Min. Off | |
| 30% Duty Cycle | 13 Min. On / 30 Min. Off | |
| 33% Duty Cycle | 15 Min. On / 30 Min. Off | |
| 40% Duty Cycle | 20 Min. On / 30 Min. Off | |
| 100% Duty Cycle | Continous Duty @ 100PSI @ 72◦F |
