Air Suspension Compressor
Created with Pixso.

Silver And Black Single 200psi Air Suspension Compressor Chrome Material

Silver And Black Single 200psi Air Suspension Compressor Chrome Material

Brand Name: YURUI
Model Number: YF6456R
MOQ: Negotiation
Price: Consultation
Payment Terms: T/T
Supply Ability: 4000pcs 30 days
Detail Information
Place of Origin:
CHINA
Certification:
CE&ROHS
Color:
Black Or Silver
Material:
Chrome
Origin:
China
Voltage:
12V
Moisture Resistant:
IP67
Application:
On-board Air System, Car Tuning, Off-board Car
Recommended Parts:
Air Tank
Brand:
OEM
Packaging Details:
First wrapped with high-quality carrying bag, then with color box, finally Strong Carton
Supply Ability:
4000pcs 30 days
Highlight:

heavy duty air compressor

,

auto air compressor

Product Description

YURUI 6456R Silver And Black Single 200psi Load Support Air Suspension Compressor





Description



YF6456R is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation.

It is commonly used with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It will automatically turn on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation. One thing needed to bring out is that this product is very popular in the USA and Brazil.





Used with



Air tanks in different sizes

Pneumatic system

Air horns



Our Advantages



1 . One year warranty

2 . Competitive price among manufactures

3 . Portable to carry with

4 . Fast inflation and low noise

5 . Can be pumped more than 20 , 000 times

6 . Water proof : Can work in the water for 2 hours

7 . Anti-dust and explosion-proof






► SPECIFICATION



1.8CFM 200PSI



• 12 Volt

• Duty Cycle: 100% @ 100 PSI

• Duty Cycle: 50% @ 200 PSI

• Max. Working Pressure: 200 PSI

• 12V Max. Amp Draw: 23 Amps

• 3/8"NPT Inlet port

• Net Weight: 11 lbs

11"Lx4"Wx6.55"H






► PERFORMANCE DATA

PSI 0 40 90 150 200
AMPS 11 17 21 22 19
CFM 1.8 1.34 1.05 0.74 0.56
LPM 51 38 30 21 16
BAR 0 3 6 10 14

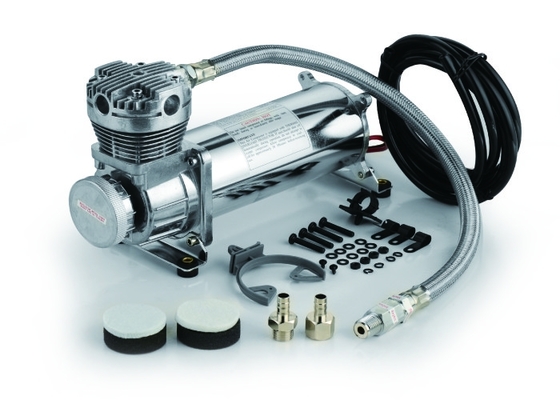

► RECOMMENDED TANKSilver And Black Single 200psi Air Suspension Compressor Chrome Material 0

TANK FILL DATA



2.5 Gallon Tank

0 to 200 psi 4 min 58 sec

150 to 200 psi 1 min 50 sec



5.0 Gallon Tank

0 to 200 psi 10 min 10 sec

150 to 200 psi 2 min 50 sec










♦ DUTY CYCLE REFERENCE CHART





Duty Cycle: 100PSI @ 72F Max. Run Time / Min. Rest Time



Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%

9% Duty Cycle 3 Min. On / 30 Min. Off
10% Duty Cycle 3 Min. On / 30 Min. Off
15% Duty Cycle 6 Min. On / 30 Min. Off
20% Duty Cycle 8 Min. On / 30 Min. Off
25% Duty Cycle 10 Min. On / 30 Min. Off
30% Duty Cycle 13 Min. On / 30 Min. Off
33% Duty Cycle 15 Min. On / 30 Min. Off
40% Duty Cycle 20 Min. On / 30 Min. Off
100% Duty Cycle Continous Duty @ 100PSI @ 72

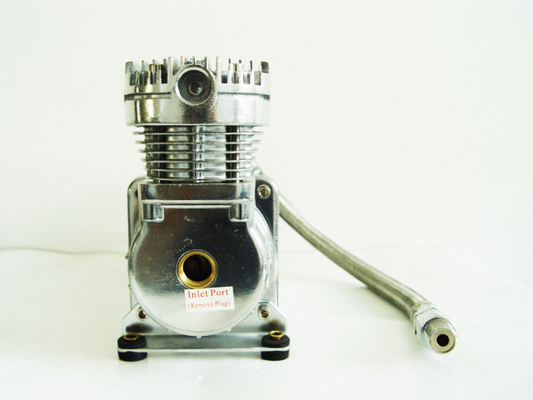

Silver And Black Single 200psi Air Suspension Compressor Chrome Material 1
