Product Details:
|
| Brand: | OEM | Material: | Steel |
|---|---|---|---|
| Color: | Silver | Voltage: | 12V |
| Moisture Resistant: | IP67 | Application: | On-board Air System, Car Tuning, Off-board Car |
| Recommended Parts: | Air Tank | Price: | Competitive |
| High Light: | heavy duty air compressor,auto air compressor |
||
► Description

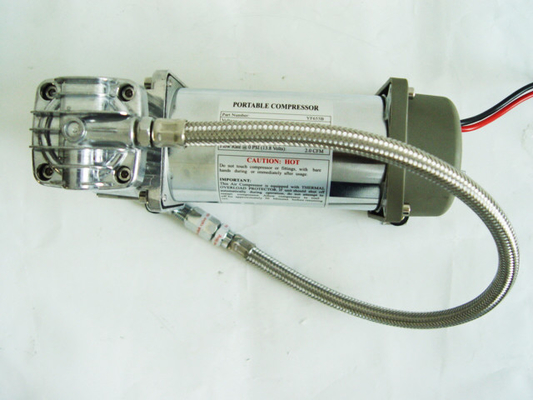

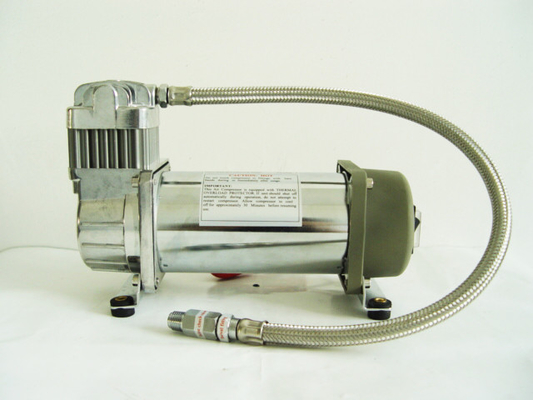

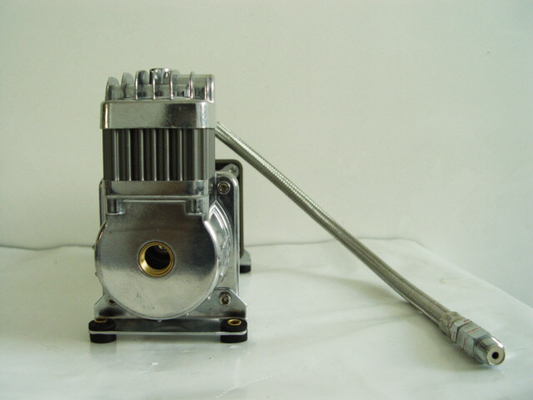

YF6455BH is a hardmount compressor that pumps a massive 2.18CFM flow at zero PSI head pressure. The 400H comes with a built-in, moisture resistant ON-OFF power switch. Features include a heavy duty stainless steel leader hose with a 1/4” quick connect stud for hookup to a coil hose and insulated wiring for simple installation.
► Used with
• Air tanks in different sizes
• Pnuematic system
• Air horns
► Our Advantages
1 . One year warranty
2 . Competitive price among manufactures
3 . Portable to carry with
4 . High quality
5 . Can be pumped more than 20 , 000 times
6 . Fast inflation and low noise
7 . Anti-dust and explosion-proof
8 . Water resistant : IP 67, working in the water for 2 hours
►SPECIFICATION
2.18CFM 150PSI
• 12 Volt
• Duty Cycle: 33% @ 100 PSI
• Max. Working Pressure: 150 PSI
• 12V Max. Amp Draw: 30 Amps
• 1/4"NPT Inlet port
• Net Weight: 8.95 lbs
11.25"Lx4"Wx6.75"H
► PERFORMANCE DATA
| PSI | 0 | 40 | 90 | 150 |
| AMPS | 15 | 23 | 24 | 25 |
| CFM | 2.18 | 1.48 | 1.2 | 0.84 |
| LPM | 62 | 42 | 34 | 24 |
| BAR | 0 | 3 | 6 | 10 |
► RECOMMENDED TANK
TANK FILL DATA
2.0 Gallon Tank
0 to 150 psi 2 min 5 sec
120 to 150 psi 40 sec
♦ DUTY CYCLE REFERENCE CHART
| Duty Cycle: 100PSI @ 72◦F | Max. Run Time / Min. Rest Time |
Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle% |
| 9% Duty Cycle | 3 Min. On / 30 Min. Off | |
| 10% Duty Cycle | 3 Min. On / 30 Min. Off | |
| 15% Duty Cycle | 6 Min. On / 30 Min. Off | |
| 20% Duty Cycle | 8 Min. On / 30 Min. Off | |
| 25% Duty Cycle | 10 Min. On / 30 Min. Off | |
| 30% Duty Cycle | 13 Min. On / 30 Min. Off | |
| 33% Duty Cycle | 15 Min. On / 30 Min. Off | |
| 40% Duty Cycle | 20 Min. On / 30 Min. Off | |
| 100% Duty Cycle | Continous Duty @ 100PSI @ 72◦F |
