Air Suspension Pump
>
|
| Place of Origin | CHINA |
| Brand Name | OEM |
| Certification | CE |
| Model Number | YF7008 |
Constant Duty Onboard Air System Black And Silver 100% Duty Cycle2.5 Gallon Tank
►Description
YuRui's Medium Duty Onboard Air System is a pre-packaged compressed air solution that provides a 33% duty cycle YF6455BR compressor 2.5 gallon air tank, and all components needed to install basic vehicle-based pneumatics.
►Our Advantages
1 . Fast inflation and low noise
2 . One year warranty
3 . Competitive price than other manufactures
4 . Anti-dust and explosion-proof
5 . Water resistant : IP 67, working in the water for 2 hours
YF7006
2.18 CFM 150 PSI
P/N 7006CE

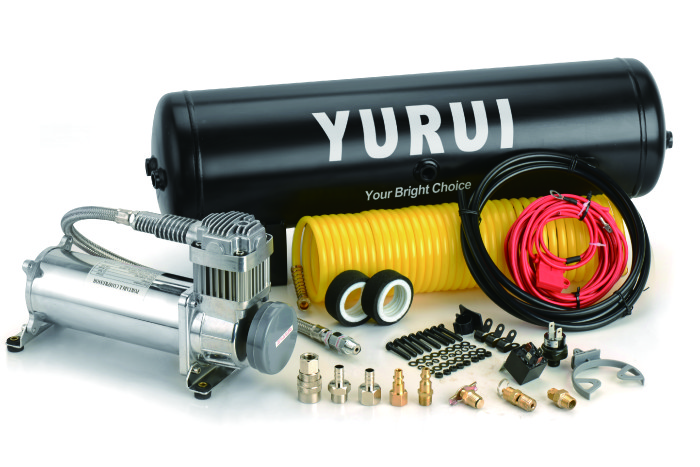

►PARTS INCLUDED
YF6455BR Air Compressor
12 Volt
Duty Cycle:33%@100 PSI
System Max Working Pressure:150 PSI
Max Amp Draw: 25 Amps
2.5 Gallon Air Tank
Accessory Airline
Pressure Switch(120PSI on 150 PSI off)
40Amp Relay
1/4”NPT Drain Cock
1/4”NPT Quick Connect Stud(F)
1/4”NPT Quick Connect Coupler(M)
1/4”NPT 180 PSI Safety Valve
8ft Air Hose
20ft 12 Gauge Wire with Inline Fuse Holder
Electrical Connections
► PERFORMANCE DATA
| PSI | 0 | 40 | 90 | 150 |
| CFM | 2.18 | 1.18 | 1.2 | 0.84 |
| AMPS | 15 | 23 | 24 | 25 |
| LPM | 62 | 42 | 34 | 24 |
| BAR | 0 | 3 | 6 | 10 |
► TANK FILL DATA
2.5 Gallon Tank
0 to 150 psi 2 min12 sec
120 to 150 psi 48 sec
►Company information:
Yuyao Yurui Electrical is a professional factory dealing in the suspension air compressor, inflator, car fan vacuum cleaners, heater fans and other car accessories. With more than 15 years history, we have our own inspection team that is around 15 persons and engineers 3 persons. That controls the quality and explore new products.
► DUTY CYCLE REFERENCE CHART
| Duty Cycle: 100PSI @ 72◦F | Max. Run Time / Min. Rest Time |
Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle% |
| 9% Duty Cycle | 3 Min. On / 30 Min. Off | |
| 10% Duty Cycle | 3 Min. On / 30 Min. Off | |
| 15% Duty Cycle | 6 Min. On / 30 Min. Off | |
| 20% Duty Cycle | 8 Min. On / 30 Min. Off | |
| 25% Duty Cycle | 10 Min. On / 30 Min. Off | |
| 30% Duty Cycle | 13 Min. On / 30 Min. Off | |
| 33% Duty Cycle | 15 Min. On / 30 Min. Off | |
| 40% Duty Cycle | 20 Min. On / 30 Min. Off | |
| 100% Duty Cycle | Continous Duty @ 100PSI @ 72◦F |
