Silver Steel Dual Packs Air Suspension Pump For Strong Power And Fast Inflation

Silver Dual Packs Air Suspension Pump For Strong Power And Fast Inflation Stell YUIRUI

►Description

YF6370R DUAL is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation. Always integrated into on-board air system.

Commonly used must with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It automatically turns on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation when the environment changes. The compressor is furnished with a thermal overload protector which will turn off the unit if overheated.

► PERFORMANCE DATA

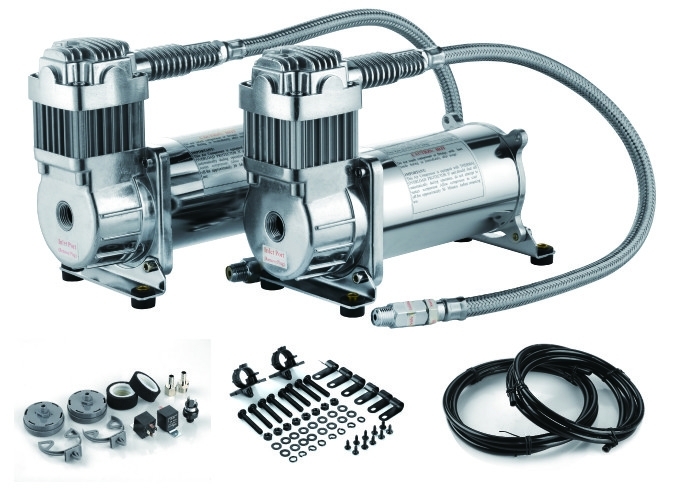

► PARTS INCLUDED

(2) YF6370R Compressors

(2) Air Filter Assemblies

(2) Leader Hose Clips

(2) Remote Mount Brackets

(2) Sets of Remote Mount Fittings

(2) Air Line Clips with Included Hardware

(2) Sets of Nuts Bolts Washers and Lock Washers

(2) Heavy Duty 40Amp Relays

(1) One Heavy Duty Pressure Switch(165psi on, 200psi off)

Air Line(For Remote Mount Filter Installation)

► SPECIFICATION

2.5 CFM 200PSI

12 Volt

Duty Cycle:100% @ 100PSI

Duty Cycle:55% @ 200PSI

Max Working Pressure :200PSI

Max Amp Draw: 45Amps

1/4”NPT Inlet port

Net Weight:16.5lbs

P/N 9.45”Lx4”Wx6.85”H

► TANK FILL DATA

2.5 Gallon Tank

0 to 200 psi 3 min 30 sec

150to 200 psi 1 min 10 sec

5.0 Gallon Tank

0 to 200 psi 7 min 31 sec

150to 200 psi 2 min 35 sec
