1 / 4 '" Air Ride Suspension Compressor 200psi Single 12v Compressor And Tank

1 / 4 '" Air Ride Suspension Compressor 200psi Single 12v Compressor And Tank

1 / 4 '" Air Ride Suspension Compressor 200psi Single 12v Compressor And Tank

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: CE&ROHS
Model Number: YF6370R

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Bubble Bag with Foam, Color box and Strong Carton
Delivery Time: One month after receiving 30% deposit
Payment Terms: T/T, L/C
Supply Ability: 4500pcs per month
Contact Now
Detailed Product Description
Material: Steel Color: Chrome
Voltage: 12V Brand: OEM
Original: China Moisture Resistant: IP67
Application: On-board Air System, Car Tuning, Off-board Car Recommended Parts: Air Tank
Condition: Brand New

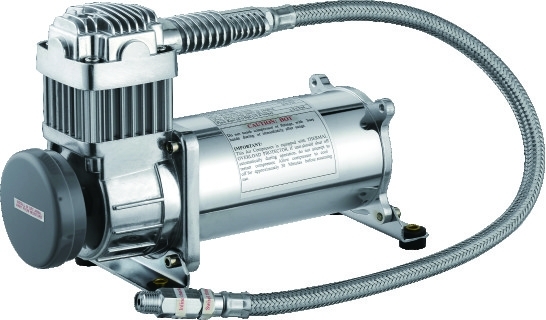

Yurui Chrome 6370R With Remote Air Filter 200psi Air Ride Suspension Compressor





► Description



YF6370R is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation.

It is commonly used with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It will automatically turn on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation.



► Used with



Air tanks in different sizes

Pneumatic system

Air horns





► Our Advantages



1 . One year warranty

2 . Competitive price than other manufactures

3 . Portable to carry with

4 . Fast inflation and low noise

5 . Can be pumped more than 20 , 000 times

6 . Anti-dust

7 . Water resistant : IP 67, working in the water for 2 hours






► SPECIFICATION



1.32CFM 200PSI



12 Volt

Duty Cycle: 100% @ 100 PSI

Duty Cycle: 55% @ 200 PSI

Max. Working Pressure: 200PSI

12V Max. Amp Draw: 23Amps

• 1/4"NPT Inlet port

Net Weight: 8.3 lbs

9.45"Lx4"Wx6.85"H



► PERFORMANCE DATA



PSI 0 40 90 150
AMPS 17 25 28 26
CFM 2.48 1.82 1.4 0.9
LPM 70 51 40 26
BAR 0 3 6 10





RECOMMENDED TANK1 / 4 '" Air Ride Suspension Compressor 200psi Single 12v Compressor And Tank

TANK FILL DATA



2.0 Gallon Tank

0 to 150 psi 2 min 2 sec

120 to 150 psi 40 sec






♦ DUTY CYCLE REFERENCE CHART



Duty Cycle: 100PSI @ 72F Max. Run Time / Min. Rest Time



Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%

9% Duty Cycle 3 Min. On / 30 Min. Off
10% Duty Cycle 3 Min. On / 30 Min. Off
15% Duty Cycle 6 Min. On / 30 Min. Off
20% Duty Cycle 8 Min. On / 30 Min. Off
25% Duty Cycle 10 Min. On / 30 Min. Off
30% Duty Cycle 13 Min. On / 30 Min. Off
33% Duty Cycle 15 Min. On / 30 Min. Off
40% Duty Cycle 20 Min. On / 30 Min. Off
100% Duty Cycle Continous Duty @ 100PSI @ 72◦F


1 / 4 '" Air Ride Suspension Compressor 200psi Single 12v Compressor And Tank
