| Brand Name: | OEM |
| Model Number: | YF6469R BLACK |
| MOQ: | Negotiation |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 5000pcs per month |

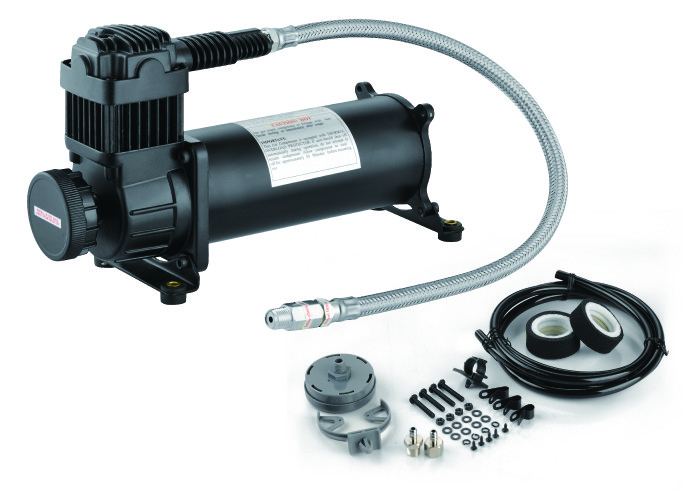

Black Single Powerful Air Suspension Compressor Remote Fast Inflation Heavy Duty
►Description
YF6469R is a most portable and powerful compressor kit. It can provide various sizes of tires with very fast inflation without installation. Portable to carry with in the luxury component bag and always be ready to use.
►Our Advantages
1 . One year warranty
2 . Competitive price than other manufactures
3 . Portable to carry with
4 . All of our products must be checked carefully before shipping
5 . We can offer best suggestion on the design
6 . Reliable quality, long working life
►SPECIFICATION
1.75CFM 200 PSI12 Volt
Duty Cycle:100% @ 100PSI
Duty Cycle:50% @ 200PSI
Max Working Pressure :200PSI
12V Max Amp Draw: 23Amps
1/4”NPT Inlet port
Net Weight:10.8lbs
11”Lx4”Wx6.85”H
►PERFORMANCE DATA
| PSI | 0 | 40 | 90 | 150 | 200 |
| AMPS | 11 | 17 | 21 | 22 | 19 |
| CFM | 1.75 | 1.34 | 1.05 | 0.74 | 0.56 |
| LPM | 50 | 38 | 30 | 21 | 16 |
| BAR | 0 | 3 | 6 | 10 | 14 |
►TANK FILL DATA
2.5 Gallon Tank
0 to 200 psi 4 min 58 sec
150 to 200 psi 1 min 50 sec
