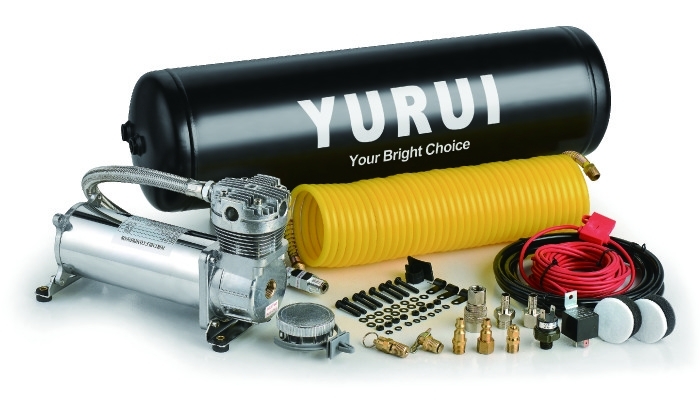

High Power Inflator 200psi Onboard Air System Kit With 2.5Gallon Air Tank

High Power Inflator 200psi Onboard Air System Kit With 2.5Gallon Air Tank
High Power Inflator 200psi Onboard Air System Kit With 2.5Gallon Air Tank

Large Image :  High Power Inflator 200psi Onboard Air System Kit With 2.5Gallon Air Tank

Product Details:
Place of Origin: CHINA
Brand Name: OEM
Certification: CE&ROHS
Model Number: YF7009
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Consultation
Packaging Details: Color box and strong carton
Delivery Time: 30 days after receiving 30% deposit
Payment Terms: T/T
Supply Ability: 4000pcs 30 days

High Power Inflator 200psi Onboard Air System Kit With 2.5Gallon Air Tank

Description
Material: Chrome Brand: OEM
Voltage: 12V Moisture Resistant: IP67
Power: Heavy Duty Application: On-board Air System, Car Tuning, Off-board Car
High Light:

air compressor replacement tank

,

small air compressor with tank

High Power Inflator 200psi Onboard Air System Kit With 2.5Gallon Portable Compressed Air Tank





► Description





YuRui’s Ultra Duty Onboard Air System is a pre-packaged compressed air solution that provides an industry-leading,200 PSI rated, 100% duty cycle YF6456R compressor 2.5 gallon air tank,and all components needed to install a working system capable of inflating tires of virtually any size.





►  Our Advantages



1 . Water resistant : IP 67, working in the water for 2 hours

2 . Anti-dust

3 . Fast inflation and low noise

4 . One year warranty

5 . Can be pumped more than 20 , 000 times






YF7009

1.8 CFM 200 PSI

P/N 7009 CE





► PARTS INCLUDED



YF6456R Air Compressor

12 Volt

Duty Cycle:100%@100 PSI

System Max Working Pressure:200 PSI

Max Amp Draw:23 Amps

2.5 Gallon Air Tank

Accessory Airline

Pressure Switch(150PSI on 200 PSI off)

40Amp Relay

1/4”NPT Drain Cock

1/4”NPT250PSI Safety Valve

1/4”NPT Quick Connect Stud(F)

1/4”NPT Quick Connect Coupler(M)

8ft Air Hose

25IL Air Hose

20ft 12 Gauge Wire with Inline Fuse Holder

Electrical Connections





► PERFORMANCE DATA



PSI 0 40 90 150 200
CFM 1.8 1.34 1.05 0.74 0.56
AMPS 11 17 21 22 20
LPM 51 38 30 21 16
BAR 0 3 6 10 14





► TANK FILL DATA



2.5 Gallon Tank

0 to 200 psi 4 min 58 sec

150 to 200 psi 1 min 50 sec








► DUTY CYCLE REFERENCE CHART





Duty Cycle: 100PSI @ 72F Max. Run Time / Min. Rest Time



Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%

9% Duty Cycle 3 Min. On / 30 Min. Off
10% Duty Cycle 3 Min. On / 30 Min. Off
15% Duty Cycle 6 Min. On / 30 Min. Off
20% Duty Cycle 8 Min. On / 30 Min. Off
25% Duty Cycle 10 Min. On / 30 Min. Off
30% Duty Cycle 13 Min. On / 30 Min. Off
33% Duty Cycle 15 Min. On / 30 Min. Off
40% Duty Cycle 20 Min. On / 30 Min. Off
100% Duty Cycle Continous Duty @ 100PSI @ 72F
