| Brand Name: | YURUI |
| Model Number: | YF6469R |
| MOQ: | 50pcs |
| Price: | Consultation |
| Payment Terms: | T/T |
| Supply Ability: | 4500pcs per month |

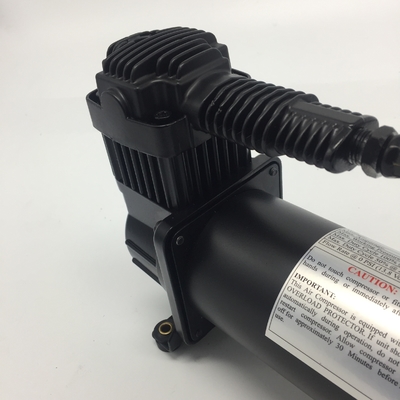

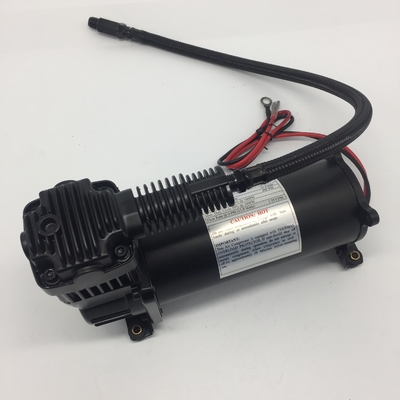

YURUI YF6469R Compact Metal DC12V Air Suspension Pump for Off-road Truck , SUVs
YURUI Portable Compressor - 200 PSI
•12 Volt
•Duty Cycle: 100% @ 100 PSI
•Duty Cycle: 50% @ 200 PSI
•Max. Working Pressure: 200 PSI
•12V Max. Amp Draw: 23 Amps
•1/4"NPT Inlet port
•Net Weight: 10.8 lbs
11"Lx4"Wx6.85"H
►PERFORMANCE DATA
| PSI | 0 | 40 | 90 | 150 | 200 |
| AMPS | 11 | 17 | 21 | 22 | 19 |
| CFM | 1.75 | 1.34 | 1.05 | 0.74 | 0.56 |
| LPM | 50 | 38 | 30 | 21 | 16 |
| BAR | 0 | 3 | 6 | 10 | 14 |
Duty Cycle Reference Chart:
