12v Mini Air Compressor With One Gallon Air Tank Onboard Air Systerm For Car Inflation

12v Mini Air Compressor With One Gallon Air Tank Onboard Air Systerm For Car Inflation
12v Mini Air Compressor With One Gallon Air Tank Onboard Air Systerm For Car Inflation

Large Image :  12v Mini Air Compressor With One Gallon Air Tank Onboard Air Systerm For Car Inflation

Product Details:
Place of Origin: CHINA
Brand Name: YURUI
Certification: CE
Model Number: YF7002
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Can be discussed
Packaging Details: Bubble Bag with Foam, Color box and Strong Carton
Delivery Time: 5 weeks after we received 30% deposite
Payment Terms: T/T, L/C
Supply Ability: 5000pcs per month

12v Mini Air Compressor With One Gallon Air Tank Onboard Air Systerm For Car Inflation

Description
Valtage: 12V Brand: OEM
Original: China Color: Black / Silver / Chrome
Moisture Resistant: IP67 / IP 54 Sales Volume: 5000pcs Per Month
Condition: Brand New
High Light:

on board air system

,

air compressor kit

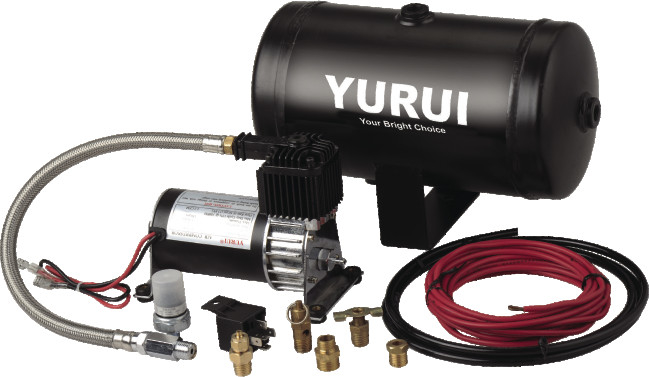

Black 12v mini aircompressor with one gallon air tank Onboard Air Systerm for car inflation and car tuning







► Description



P/N 7002 Ulta Light Duty Onboard Air System can be used to pressurize the include one gallon air tank for air horn use, off road air locking diffenential and a host other light duty pneumatic needs. While not intended to inflate tires this onboard air system provides a reliable smaller volume, 120 PSI air source, in a cost effective package.

Commonly used must with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It automatically turns on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation when the environment changes. The compressor is furnished with a thermal overload protector which will turn off the unit if overheated.





► SPECIFICATION



• 12 Volt

• 1.2 CFM 130 PSI

• Duty Cycle: 15% @ 100 PSI

• Max. Working Pressure: 130 PSI

• 12V Max. Amp Draw: 16 Amps





► PARTS INCLUDE



YF6264R Air Compressor

1.0 Gallon  Air Tank

Accessory Airline

Pressure Switch(90PSI on 130 PSI off)

40 Amp Relay

1/4"NPT Drain Cock

1/4"NPT Quick Connect Stud(F)

1/4"NPT Quick Connect Coupler(M)

1/4"NPT 155 PSI Safety Valve

8 ft Air Hose

20 ft 12 Gauge Wire with Inline Fuse Holder

Electrical Connections





► PERFORMANCE DATA





PSI 0 40 90 130
AMPS 9.5 12.5 14.5 15
CFM 1.2 0.8 0.63 0.54
LPM 33 23 18 15.5
BAR 0 3 6 9

.



Remarks:



1. Therms of payments, T/T, L/C.

2. 30% deposit, 70% balance before shipment or against B/L. (small order, should ask 100% advanced, it can be discussed.)

3. Date of shipment, within 20-30 days after we received your deposit. Details should depend on Qty and the production line.

4. Unit price could be discussed depends on the qty

5. We can offer OEM service.





► TANK FILL DATA





1.0 Gallon Tank

0 to 130 psi 2 min 6 sec

100 to 130 psi      45 sec





► DUTY CYCLE REFERENCE CHART



Duty Cycle: 100PSI @ 72F Max. Run Time / Min. Rest Time



Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%

9% Duty Cycle 3 Min. On / 30 Min. Off
10% Duty Cycle 3 Min. On / 30 Min. Off
15% Duty Cycle 6 Min. On / 30 Min. Off
20% Duty Cycle 8 Min. On / 30 Min. Off
25% Duty Cycle 10 Min. On / 30 Min. Off
30% Duty Cycle 13 Min. On / 30 Min. Off
33% Duty Cycle 15 Min. On / 30 Min. Off
40% Duty Cycle 20 Min. On / 30 Min. Off
100% Duty Cycle Continous Duty @ 100PSI @ 72F
