Dual Steel Onboard Air Systems Compressor For Trucks , 12v Compressor With Tank

Dual Steel Onboard Air Systems Compressor For Trucks , 12v Compressor With Tank

Brand Name: OEM
Model Number: YF7011
MOQ: Negotiation
Price: Consultation
Payment Terms: T/T Advance As Deposite , Blance Before Shipping
Supply Ability: 4000pcs per month
Detail Information
Place of Origin:
CHINA
Certification:
CE
Voltage:
12V
Moisture Resistant:
IP67
Material:
Steel / Chrome
Power:
Power
Application:
On-board Air System, Car Tuning, Off-board Car
Condition:
Brand New
Delivery:
20-30 Days After Received Your Deposit
Warranty:
12 Months
Packaging Details:
Color box with foam and strong carton
Supply Ability:
4000pcs per month
Highlight:

on board air compressor

,

air compressor kit

Product Description

Dual Onboard Air System Heavy Duty Steel Silver And Black Air Compressor With Tanks Very Fast Inflation For All The Cars





► Description





YuRui’s Dual YF6469R Onboard Air System is a pre-packaged compressed air solution that provides two YF6469R,100% duty cycle compressors ,a 2.5 gallon air tank,inline pressure regulation,and all components needed to install a working system capable of inflating tires,managing air locking differentials,and more.





Our Advantages





1 . Water resistant : IP 67, working in the water for 2 hours

2 . Fast inflation and low noise

3 . Can be pumped more than 20 , 000 times

4 . We can offer best suggestion on the design

5 . Reliable quality, long working lif

6 . Anti-dust and explosion-proof








YF7011

3.5CFM    200 PSI

P/N 7011

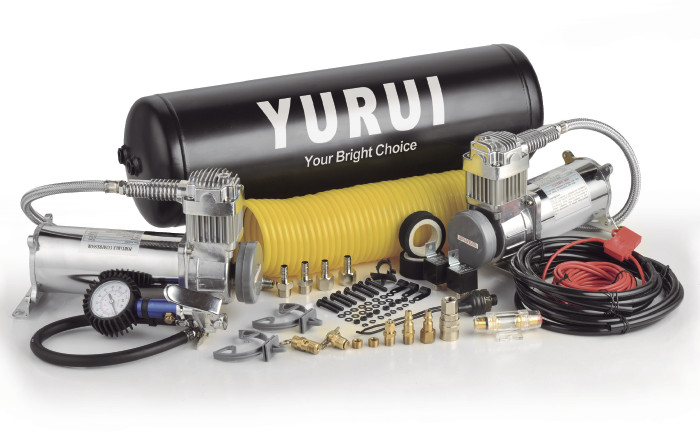

► PARTS INCLUDED



(2)YF6469R Air Compressor

12 Volt

Duty Cycle:100%@100 PSI

System Max Working Pressure:200 PSI

Max Amp Draw:42 Amps

2.5Gallon Air Tank

Accessory Airline

Pressure Switch(120PSI on 150 PSI off)

(2)40amp Relay

1/4”NPT Drain Cock

1/4”NPT250PSI Safety Valve

1/4”NPT Quick Connect Stud(F)

1/4”NPT Quick Connect Coupler(M)

(2)8ft Air Hose

25IL Air Hose

Tire Pressure gun

20ft 12 Gauge Wire with Inline Fuse Holder

Electrical Connections





► PERFORMANCE DATA



PSI 0 40 90 150 200
CFM 3.5 2.7 2.18 1.6 1.12
AMPS 24 32 38 34 30
LPM 100 76 62 45 32
BAR 0 3 6 10 14





► TANK FILL DATA



2.5 Gallon Tank

0 to 200 psi 2 min 35 sec

150 to 200 psi 45 sec





Remarks:



1. Therms of payments, T/T, L/C.

2. 30% deposit, 70% balance before shipment or against B/L. (small order, should ask 100% advanced, it can be discussed.)

3. Date of shipment, within 20-30 days after we received your deposit. Details should depend on Qty and the production line.

4. Unit price could be discussed depends on the qty

5. We can offer OEM service.










► DUTY CYCLE REFERENCE CHART





Duty Cycle: 100PSI @ 72F Max. Run Time / Min. Rest Time



Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%

9% Duty Cycle 3 Min. On / 30 Min. Off
10% Duty Cycle 3 Min. On / 30 Min. Off
15% Duty Cycle 6 Min. On / 30 Min. Off
20% Duty Cycle 8 Min. On / 30 Min. Off
25% Duty Cycle 10 Min. On / 30 Min. Off
30% Duty Cycle 13 Min. On / 30 Min. Off
33% Duty Cycle 15 Min. On / 30 Min. Off
40% Duty Cycle 20 Min. On / 30 Min. Off
100% Duty Cycle Continous Duty @ 100PSI @ 72F
