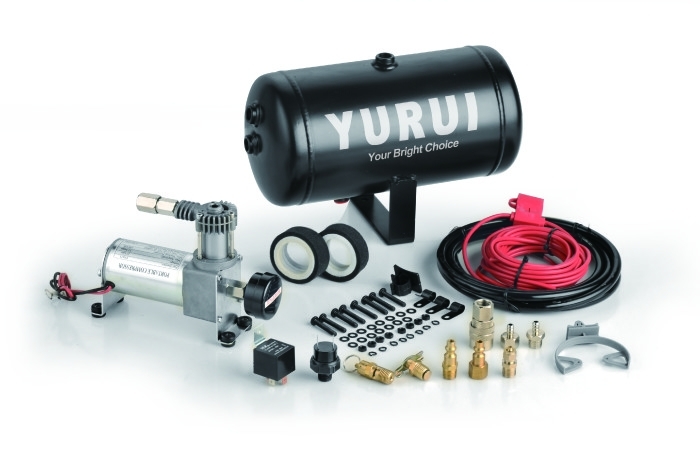

YURUI YF7001 On Board Air Tank Systems 1.0 Gallon Tank Light Duty Reliable Volume
  • YURUI YF7001 On Board Air Tank Systems 1.0 Gallon Tank Light Duty Reliable Volume
  • YURUI YF7001 On Board Air Tank Systems 1.0 Gallon Tank Light Duty Reliable Volume

YURUI YF7001 On Board Air Tank Systems 1.0 Gallon Tank Light Duty Reliable Volume

Place of Origin CHINA
Brand Name OEM
Certification CE
Model Number YF7001
Product Details
Voltage:
12V
Brand:
OEM
Price:
Competitive
Original:
CHINA
Material:
Steel / Chrome
Moisture Resistant:
IP 54
Delivery:
20-30 Days After Received Your Deposit
High Light:

on board air system

,

air compressor kit

Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
Box And Strong Carton
Delivery Time
30 days after receiving 30% deposit
Payment Terms
T/T, L/C
Supply Ability
5000pcs per month
Product Description

YURUI YF7001 Onboard Air Syatem 1.0 Gallon Tank Light Duty Reliable Volume​





► Description

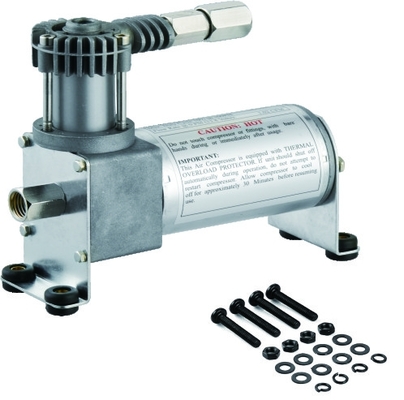

YF7001 is an installation type air suspension pump with tank, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation. Always integrated into on-board air system.

Commonly used must with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It automatically turns on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation when the environment changes. The compressor is furnished with a thermal overload protector which will turn off the unit if overheated.





► Our Advantages



1 . One year warranty

2 . Competitive price than other manufactures

3 . Portable to carry with

4 . Fast inflation and low noise

5 . Can be pumped more than 20 , 000 times

6 . Anti-dust and explosion-proof






► SPECIFICATION



• 1.02CFM 120PSI

• 12 Volt

• Duty Cycle: 9% @ 100 PSI

• Max. Working Pressure: 120 PSI

• 12V Max. Amp Draw: 11 Amps

• 1/4"NPT Drain Cock








► PERFORMANCE DATA

PSI 0 40 90 120
CFM 1.02 0.6 0.45 0.35
LPM 29 17 13 10
BAR 0 3 6 9








TANK FILL DATA



1.0 Gallon Tank

0 to 130 psi 2 min 6 sec

90 to 130 psi 50 sec





YURUI YF7001 On Board Air Tank Systems 1.0 Gallon Tank Light Duty Reliable Volume 0
