DC12V/24V Heavy Duty Truck Suspension Air Compressor For Truck

Product Details:

Place of Origin:	CHINA
Brand Name:	YURUI
Certification:	CE&ROHS
Model Number:	YF6376R

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Ask for Advice
Packaging Details:	Color box with foam and strong carton
Delivery Time:	30 days after receiving 30% deposit
Supply Ability:	4000pcs 30 days

Contact Now

Detailed Product Description

Water Resistant:	IP 54	Original:	China
Color:	Black And Silver	Material:	Steel
Voltage:	12V	Brand:	OEM
Application:	On-board Air System, Car Tuning, Off-board Car	Recommended Parts:	Air Tank
Highlight:	air bag suspension compressor , air ride compressor and tank

Offboard Portabel Steel Chrome DC12V Air Ride Suspension Compressor with Air Tank

► Description

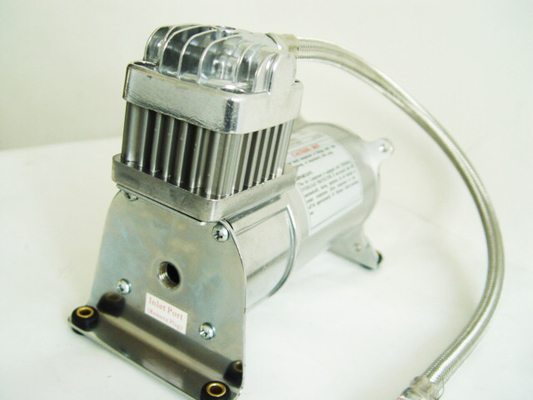

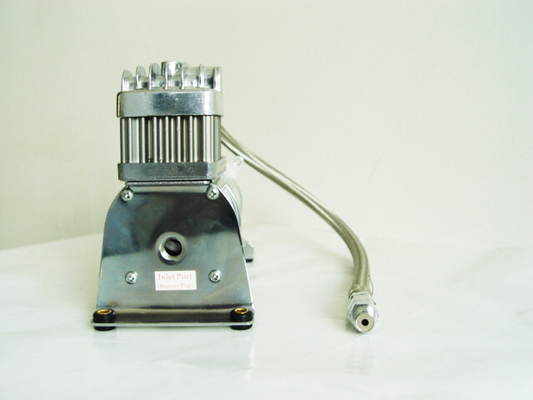

YF6376R is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation. Always integrated into on-board air system.

►Company information:

Yuyao Yurui Electrical is a professional factory dealing in the suspension air compressor, inflator, car fan vacuum cleaners, heater fans and other car accessories. With more than 15 years history, we have our own inspection team that is around 15 persons and engineers 3 persons. That controls the quality and explore new products.

► Used with

• Air tanks in different sizes
• Pneumatic system
• Air horns

► Our Advantages

1 . One year warranty
2 . Competitive price than other manufactures
3 . Portable to carry with
4 . Fast inflation and low noise
5 . Can be pumped more than 20 , 000 times
6 . Anti-dust and explosion-proof
7 . Water resistant : IP 54

► SPECIFICATION

1.40CFM 12V 150PSI
1.50CFM 24V 150PSI

• 12 Volt
• Duty Cycle: 30% @ 100 PSI
• Max. Working Pressure: 150 PSI
• 12V Max. Amp Draw: 22 Amps
• 24V Max. Amp Draw: 12 Amps
• 3/8"NPT Inlet port
• Net Weight: 6.6 lbs
8"Lx4"Wx6.45"H

► PERFORMANCE DATA 12V

PSI	0	40	90	150
AMPS	11	16	18	18
CFM	1.4	1.03	0.9	0.74
LPM	40	32	26	21
BAR	0	3	6	10

► RECOMMENDED TANK
TANK FILL DATA 12V

2.0 Gallon Tank
0 to 150 psi 3 min 55 sec
120 to 150 psi 50 sec

► PERFORMANCE DATA 24V

PSI	0	40	90	150
AMPS	6	9	10	11
CFM	1.5	1.27	1.02	0.77
LPM	42	36	29	22
BAR	0	3	6	10

♦ DUTY CYCLE REFERENCE CHART

Duty Cycle: 100PSI @ 72◦F	Max. Run Time / Min. Rest Time	Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%
9% Duty Cycle	3 Min. On / 30 Min. Off
10% Duty Cycle	3 Min. On / 30 Min. Off
15% Duty Cycle	6 Min. On / 30 Min. Off
20% Duty Cycle	8 Min. On / 30 Min. Off
25% Duty Cycle	10 Min. On / 30 Min. Off
30% Duty Cycle	13 Min. On / 30 Min. Off
33% Duty Cycle	15 Min. On / 30 Min. Off
40% Duty Cycle	20 Min. On / 30 Min. Off
100% Duty Cycle	Continous Duty @ 100PSI @ 72◦F
