Product Details:
|
| Color: | Black And Silver | Material: | Steel |
|---|---|---|---|
| Original: | China | Valtage: | 12V |
| Brand: | OEM | Guarantee: | 1 Year |
| Water Resistant: | IP54 | Delivery: | 20-30 Days After Received Your Deposit |
| High Light: | Air Ride Offboard System Compressor,IP54 Air Ride Suspension Compressor |
||

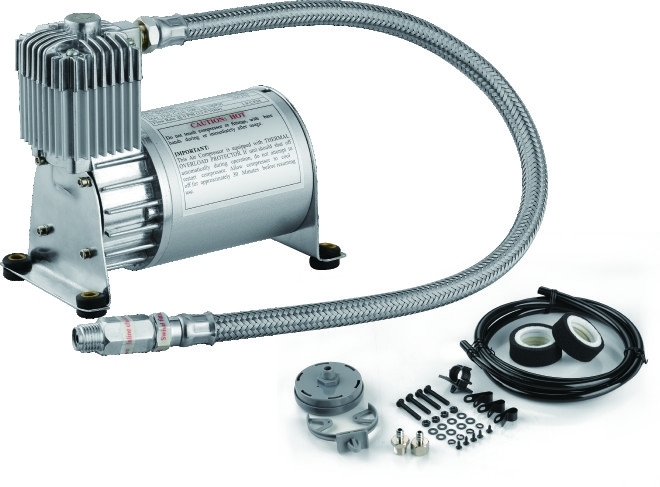

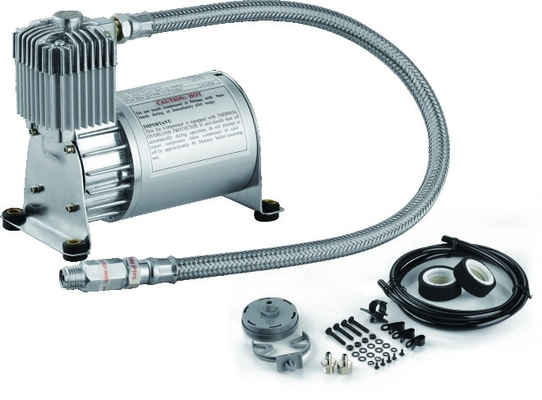

Chrom And Black Air Suspension Car Compressor For Suspension Offboard System
► Description
YF6390R is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation. Always integrated into on-board air system.

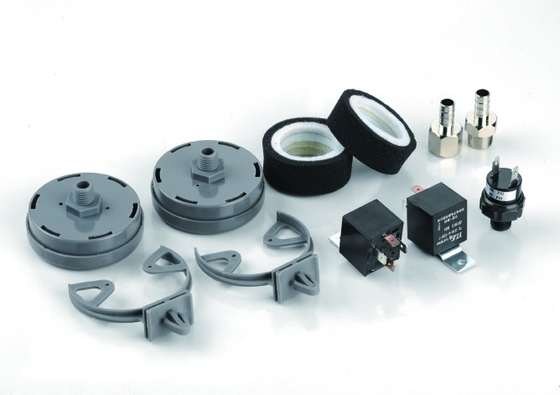

Commonly used must with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It automatically turns on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation when the environment changes. The compressor is furnished with a thermal overload protector which will turn off the unit if overheated.
► Used with
• Air tanks in different sizes
• Pneumatic system
• Air horns
► Our Advantages
1 . One year warranty
2 . Competitive price than other manufactures
3 . Portable to carry with
4 . Fast inflation and low noise
5 . Can be pumped more than 20 , 000 times
6 . Anti-dust and explosion-proof
7 . Water resistant : IP 54
► SPECIFICATION
1.40CFM 12V 150PSI
1.50CFM 24V 150PSI
• 12 Volt
• Duty Cycle: 30% @ 100 PSI
• Max. Working Pressure: 150 PSI
• 12V Max. Amp Draw: 22 Amps
• 24V Max. Amp Draw: 12 Amps
• 3/8"NPT Inlet port
• Net Weight: 6.6 lbs
8"Lx4"Wx6.45"H
► PERFORMANCE DATA 12V
| PSI | 0 | 40 | 90 | 150 |
| AMPS | 11 | 16 | 18 | 18 |
| CFM | 1.4 | 1.03 | 0.9 | 0.74 |
| LPM | 40 | 32 | 26 | 21 |
| BAR | 0 | 3 | 6 | 10 |
► RECOMMENDED TANK
TANK FILL DATA 12V
2.0 Gallon Tank
0 to 150 psi 3 min 55 sec
120 to 150 psi 50 sec
► PERFORMANCE DATA 24V
| PSI | 0 | 40 | 90 | 150 |
| AMPS | 6 | 9 | 10 | 11 |
| CFM | 1.5 | 1.27 | 1.02 | 0.77 |
| LPM | 42 | 36 | 29 | 22 |
| BAR | 0 | 3 | 6 | 10 |
♦ DUTY CYCLE REFERENCE CHART
| Duty Cycle: 100PSI @ 72◦F | Max. Run Time / Min. Rest Time | Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle% |
| 9% Duty Cycle | 3 Min. On / 30 Min. Off | |
| 10% Duty Cycle | 3 Min. On / 30 Min. Off | |
| 15% Duty Cycle | 6 Min. On / 30 Min. Off | |
| 20% Duty Cycle | 8 Min. On / 30 Min. Off | |
| 25% Duty Cycle | 10 Min. On / 30 Min. Off | |
| 30% Duty Cycle | 13 Min. On / 30 Min. Off | |
| 33% Duty Cycle | 15 Min. On / 30 Min. Off | |
| 40% Duty Cycle | 20 Min. On / 30 Min. Off | |
| 100% Duty Cycle | Continous Duty @ 100PSI @ 72◦F |
