Heavy Duty Car Air Suspension Compressor Systems Kit With Tank For Truck

Name: Heavy Duty Car Air Suspension Compressor Systems Kit With Tank For Truck
Brand: Yuyao City Yurui Electrical Appliance Co., Ltd.
SKU: YF7005
Price: 126.30 USD
Availability: InStock

Brand Name:	OEMQ
Model Number:	YF7005
MOQ:	Negotiation
Price:	Consultation
Payment Terms:	T/T, L/C
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Voltage:

12V

Brand:

OEM

Original:

CHINA

Price:

Competitive

Moisture Resistant:

IP67

Material:

Steel / Chrome

Warranty:

12 Months

Packaging Details:

box with foam and strong carton

Supply Ability:

5000pcs per month

Highlight:

on board air compressor

air compressor kit

Product Description

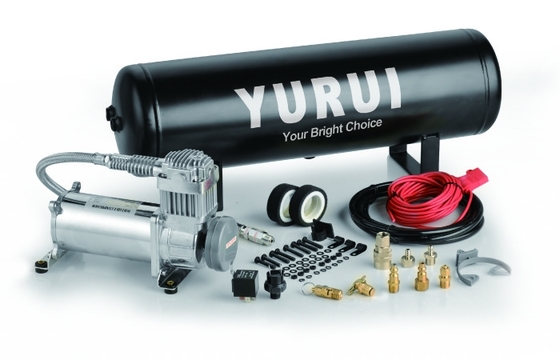

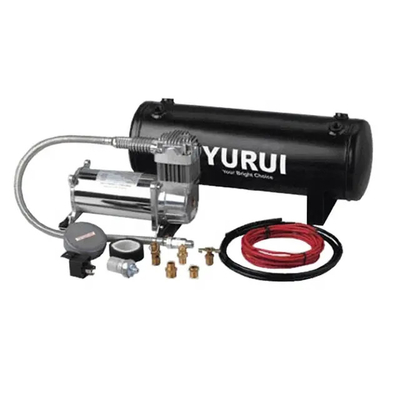

Heavy Duty Onboard Air System 2.0 Gallon Tank For Cars

►Description

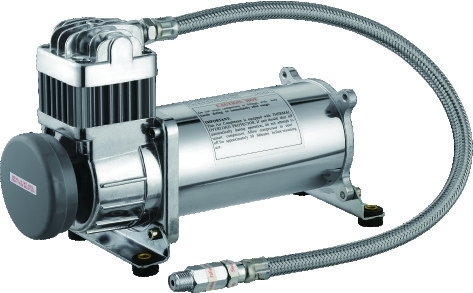

YF7005 is an installation type air suspension pump with tanks, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation. Always integrated into on-board air system.

Commonly used must with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It automatically turns on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation when the environment changes. The compressor is furnished with a thermal overload protector which will turn off the unit if overheated.

Heavy Duty Car Air Suspension Compressor Systems Kit With Tank For Truck 0

►Our Advantages

1 . Excellent quality

2 . Competitive price than other manufactures

3 . Fast inflation and low noise

4 . Can be pumped more than 20 , 000 times

5 . Anti-dust and explosion-proof

6. Good service and after-sale service

► PERFORMANCE DATA

PSI	0	40	90	150
AMPS	17	25	28	26
CFM	2.45	1.82	1.4	0.9
LPM	70	51	40	26
BAR	0	3	6	10

►TANK FILL DATA

2.0 Gallon Tank

0 to 150 psi 2 min 2 sec

120 to 150 psi 40 sec

►DUTY CYCLE REFERENCE CHART

Duty Cycle: 100PSI @ 72◦F	Max. Run Time / Min. Rest Time	Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%
9% Duty Cycle	3 Min. On / 30 Min. Off
10% Duty Cycle	3 Min. On / 30 Min. Off
15% Duty Cycle	6 Min. On / 30 Min. Off
20% Duty Cycle	8 Min. On / 30 Min. Off
25% Duty Cycle	10 Min. On / 30 Min. Off
30% Duty Cycle	13 Min. On / 30 Min. Off
33% Duty Cycle	15 Min. On / 30 Min. Off
40% Duty Cycle	20 Min. On / 30 Min. Off
100% Duty Cycle	Continous Duty @ 100PSI @ 72◦F

►About us:

We only produce & export the lelatively high-end products to the world. We have gained acceptance by many countries’s friends, we have distributors in USA Austral, Russia, Poland Germany and so on.

The quality is most we focus on, I think the best quality is the main reason we can survive so long time, not only because we strictly control the quality in the production, but also we check the quality after the production among the ready goods.

Any kind of inspection is welcomed, we welcome you all come and have a look.
