Product Details:
|
| Color:: | Silver And Black | Material: | Chrome |
|---|---|---|---|
| Moisture Resisitant: | IP 67 | Power: | Heavy Duty |
| Voltage: | 12V | Brand: | OEM |
| Delivery: | 20-30 Days After Received Your Deposit | ||
| High Light: | air bag suspension compressor,air ride compressor and tank |
||

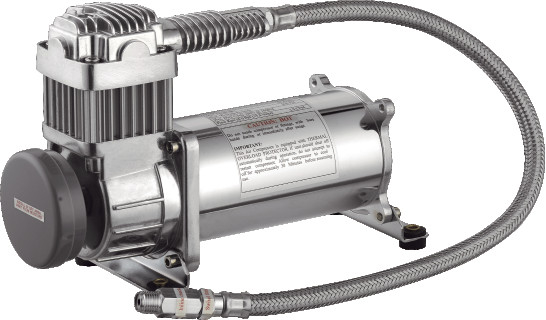

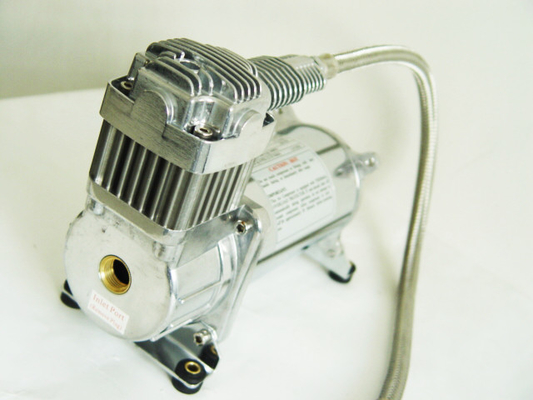

Heavy Duty 12V Air Suspension Compressor for Car Tuning
► Description
YF6370R is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation.
It is commonly used with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It will automatically turn on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation.
► Used with
• Air tanks in different sizes
• Pneumatic system
• Air horns
► Our Advantages
1 . One year warranty
2 . Competitive price than other manufactures
3 . Portable to carry with
4 . Fast inflation and low noise
5 . Can be pumped more than 20 , 000 times
6 . Anti-dust and explosion-proof
7 . Water resistant : IP 67, working in the water for 2 hours
► SPECIFICATION
1.32CFM 200PSI
• 12 Volt
• Duty Cycle: 33% @ 100 PSI
• Max. Working Pressure: 100 PSI
• 12V Max. Amp Draw: 32 Amps

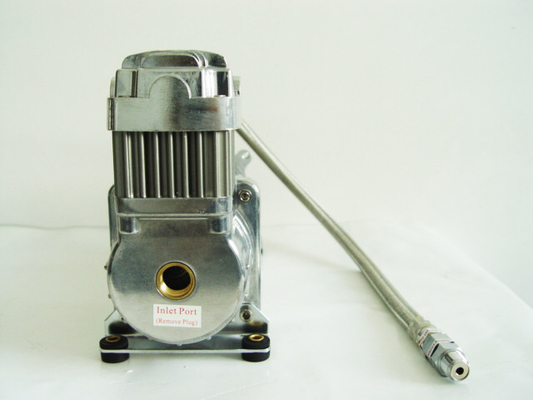

• 1/4"NPT Inlet port
• Net Weight: 8.2 lbs
9.45"Lx4"Wx6.85"H
► PERFORMANCE DATA
| PSI | 0 | 40 | 90 | 150 |
| AMPS | 17 | 25 | 28 | 26 |
| CFM | 2.48 | 1.82 | 1.4 | 0.9 |
| LPM | 70 | 51 | 40 | 26 |
| BAR | 0 | 3 | 6 | 10 |
► RECOMMENDED TANK
TANK FILL DATA
2.0 Gallon Tank
0 to 150 psi 2 min 2 sec
120 to 150 psi 40 sec
► What will you do for the customer’s complaint?
We will response quickly to our client within 24 hours, every issue will be highly focused on.
►How to guarantee your after sales service?
1. We check every item’s quality during the production
2. Recheck the products before shipment to ensure our packaging in good condition.
3. Track and receive feedback from our customer.
♦ DUTY CYCLE REFERENCE CHART
| Duty Cycle: 100PSI @ 72◦F | Max. Run Time / Min. Rest Time |
Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle% |
| 9% Duty Cycle | 3 Min. On / 30 Min. Off | |
| 10% Duty Cycle | 3 Min. On / 30 Min. Off | |
| 15% Duty Cycle | 6 Min. On / 30 Min. Off | |
| 20% Duty Cycle | 8 Min. On / 30 Min. Off | |
| 25% Duty Cycle | 10 Min. On / 30 Min. Off | |
| 30% Duty Cycle | 13 Min. On / 30 Min. Off | |
| 33% Duty Cycle | 15 Min. On / 30 Min. Off | |
| 40% Duty Cycle | 20 Min. On / 30 Min. Off | |
| 100% Duty Cycle | Continous Duty @ 100PSI @ 72◦F |
