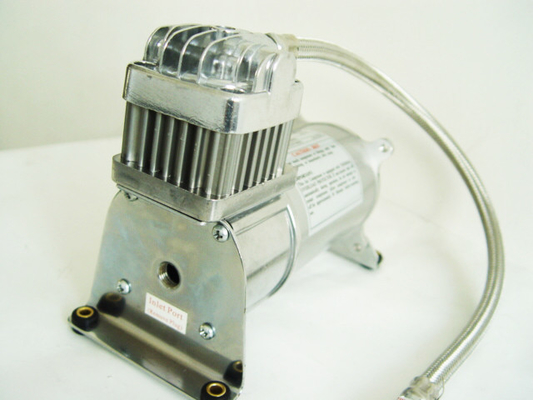

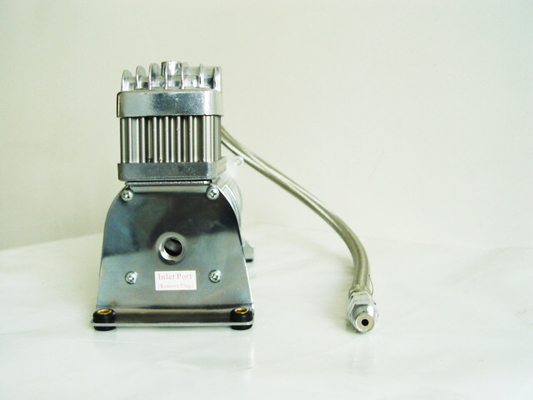

DC12V/24V Heavy Duty Truck Suspension Air Compressor For Truck
  • DC12V/24V Heavy Duty Truck Suspension Air Compressor For Truck
  • DC12V/24V Heavy Duty Truck Suspension Air Compressor For Truck
  • DC12V/24V Heavy Duty Truck Suspension Air Compressor For Truck

DC12V/24V Heavy Duty Truck Suspension Air Compressor For Truck

Place of Origin CHINA
Brand Name YURUI
Certification CE&ROHS
Model Number YF6376R
Product Details
Water Resistant:
IP 54
Original:
China
Color:
Black And Silver
Material:
Steel
Voltage:
12V
Brand:
OEM
Application:
On-board Air System, Car Tuning, Off-board Car
Recommended Parts:
Air Tank
High Light:

air bag suspension compressor

,

air ride compressor and tank

Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Ask for Advice
Packaging Details
Color box with foam and strong carton
Delivery Time
30 days after receiving 30% deposit
Supply Ability
4000pcs 30 days
Product Description

Offboard Portabel Steel Chrome DC12V Air Ride Suspension Compressor with Air Tank


► Description

YF6376R is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation. Always integrated into on-board air system.





Company information:



Yuyao Yurui Electrical is a professional factory dealing in the suspension air compressor, inflator, car fan vacuum cleaners, heater fans and other car accessories. With more than 15 years history, we have our own inspection team that is around 15 persons and engineers 3 persons. That controls the quality and explore new products.




► Used with

Air tanks in different sizes
Pneumatic system
Air horns



► Our Advantages

1 . One year warranty
2 . Competitive price than other manufactures
3 . Portable to carry with
4 . Fast inflation and low noise
5 . Can be pumped more than 20 , 000 times
6 . Anti-dust and explosion-proof
7 . Water resistant :  IP 54





► SPECIFICATION

1.40CFM 12V 150PSI
1.50CFM 24V 150PSI

• 12 Volt
• Duty Cycle: 30% @ 100 PSI
• Max. Working Pressure: 150 PSI
• 12V Max. Amp Draw: 22 Amps
• 24V Max. Amp Draw: 12 Amps
• 3/8"NPT Inlet port
• Net Weight: 6.6 lbs
8"Lx4"Wx6.45"H



► PERFORMANCE DATA     12V


PSI 0 40 90 150
AMPS 11 16 18 18
CFM 1.4 1.03 0.9 0.74
LPM 40 32 26 21
BAR 0 3 6 10




► RECOMMENDED TANK
TANK FILL DATA     12V     DC12V/24V Heavy Duty Truck Suspension Air Compressor For Truck 0

2.0 Gallon Tank
0   to 150 psi 3 min 55 sec
120  to 150 psi        50 sec



► PERFORMANCE DATA    24V


PSI 0 40 90 150
AMPS 6 9 10 11
CFM 1.5 1.27 1.02 0.77
LPM 42 36 29 22
BAR 0 3 6 10





♦ DUTY CYCLE REFERENCE CHART


Duty Cycle: 100PSI @ 72F Max. Run Time / Min. Rest Time


Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%

9% Duty Cycle 3 Min. On / 30 Min. Off
10% Duty Cycle 3 Min. On / 30 Min. Off
15% Duty Cycle 6 Min. On / 30 Min. Off
20% Duty Cycle 8 Min. On / 30 Min. Off
25% Duty Cycle 10 Min. On / 30 Min. Off
30% Duty Cycle 13 Min. On / 30 Min. Off
33% Duty Cycle 15 Min. On / 30 Min. Off
40% Duty Cycle 20 Min. On / 30 Min. Off
100% Duty Cycle Continous Duty @ 100PSI @ 72F


DC12V/24V Heavy Duty Truck Suspension Air Compressor For Truck 1
