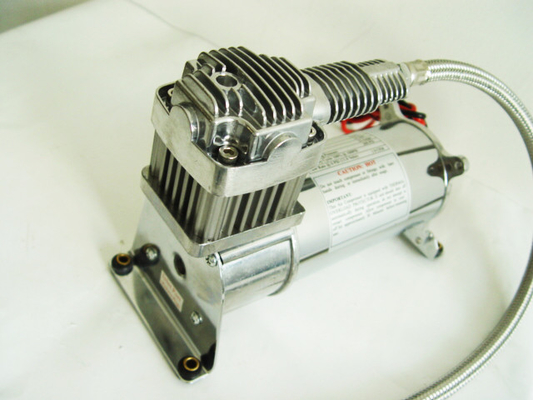

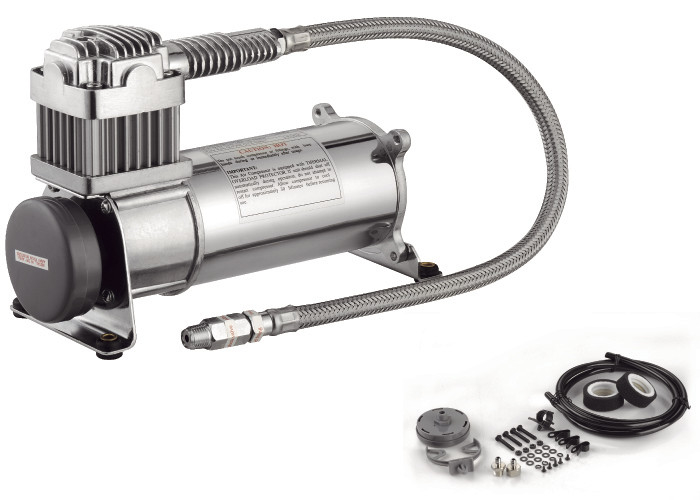

Durable Heavy Duty Portable Truck Air Bag Compressor 150 PSI 12 Volt With Air Tanks

Product Details:

Place of Origin:	CHINA
Brand Name:	YURUI
Certification:	CE&ROHS
Model Number:	YF6471R

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Consultation
Packaging Details:	Color box with foam and strong carton
Delivery Time:	One month after receiving 30% deposit
Payment Terms:	T/T
Supply Ability:	4000pcs per month

Contact Now

Detailed Product Description

Water Resistant:	IP54	Color:	Black And Silver
Original:	China	Material:	Steel
Brand:	OEM	Voltage:	12V
Power:	Heavy Duty	Application:	On-board Air System, Car Tuning, Off-board Car
Highlight:	air ride air compressor , air bag suspension compressor

Durable Portable Heavy Duty Fast Inflation 12V Air Ride Suspension Compressor

► Description

YF6471R is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation. Always integrated into on-board air system.

Commonly used must with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It automatically turns on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation when the environment changes. The compressor is furnished with a thermal overload protector which will turn off the unit if overheated.

►Used with

• Air tanks in different sizes

• Pneumatic system

• Air horns

►Our Advantages

1 . One year warranty

2 . Competitive price than other manufactures

3 . Portable to carry with

4 . Fast inflation and low noise

5 . Can be pumped more than 20 , 000 times

6 . Anti-dust and explosion-proof

7 . Water resistant : IP 54

►SPECIFICATION

2.04CFM 150PSI

• 12 Volt

• Duty Cycle: 30% @ 100 PSI

• Max. Working Pressure: 150 PSI

• 12V Max. Amp Draw: 23 Amps

• 1/4"NPT Inlet port

• Net Weight: 8.2 lbs

9.45"Lx4"Wx6.45"H

►PERFORMANCE DATA

PSI	0	40	90	150
AMPS	13	19	22	21
CFM	2.04	1.48	1.2	0.7
LPM	58	42	34	22
BAR	0	3	6	10

► RECOMMENDED TANK

TANK FILL DATA

2.0 Gallon Tank

0 to 150 psi 2 min 12 sec

120 to 150 psi 45 sec

♦ DUTY CYCLE REFERENCE CHART

Duty Cycle: 100PSI @ 72◦F	Max. Run Time / Min. Rest Time	Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%
9% Duty Cycle	3 Min. On / 30 Min. Off
10% Duty Cycle	3 Min. On / 30 Min. Off
15% Duty Cycle	6 Min. On / 30 Min. Off
20% Duty Cycle	8 Min. On / 30 Min. Off
25% Duty Cycle	10 Min. On / 30 Min. Off
30% Duty Cycle	13 Min. On / 30 Min. Off
33% Duty Cycle	15 Min. On / 30 Min. Off
40% Duty Cycle	20 Min. On / 30 Min. Off
100% Duty Cycle	Continous Duty @ 100PSI @ 72◦F
