Fast Inflation Portable Durable Air Bag Suspension Compressor Steel 12v Compressor With Tank

Product Details:

Place of Origin:	CHINA
Brand Name:	YURUI
Certification:	CE&ROHS
Model Number:	YF6455AH

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Can be discussed
Packaging Details:	Color box with foam and strong carton
Delivery Time:	30 days after receiving 30% deposit
Payment Terms:	T/T, L/C
Supply Ability:	3500pcs 4 weeks

Contact Now

Detailed Product Description

Water Resistant:	IP67	Color:	Black Andsilver
Material:	Steel	Original:	China
Brand:	OEM	Application:	On-board Air System, Car Tuning, Off-board Car
Recommended Parts:	Air Tank	Power:	Heavy Duty
Highlight:	air ride air compressor , air bag suspension compressor

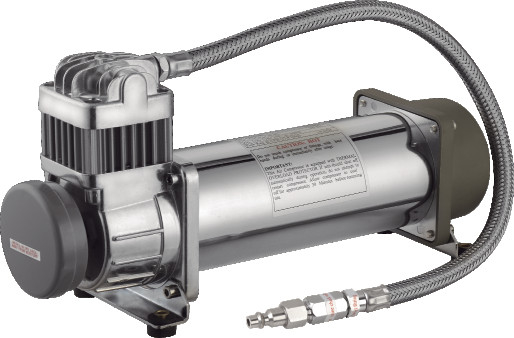

Fast Inflation Portable Durable Chrome Steel 12V Air Ride Suspension Compressor

► Description

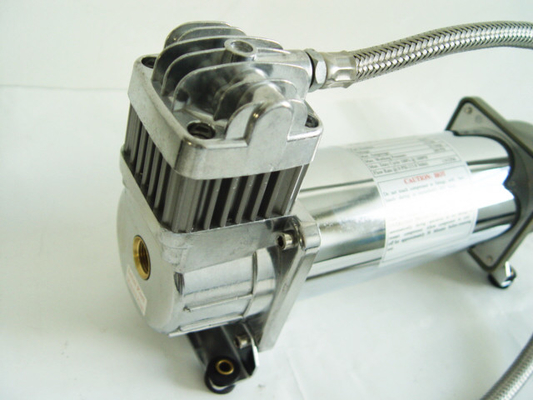

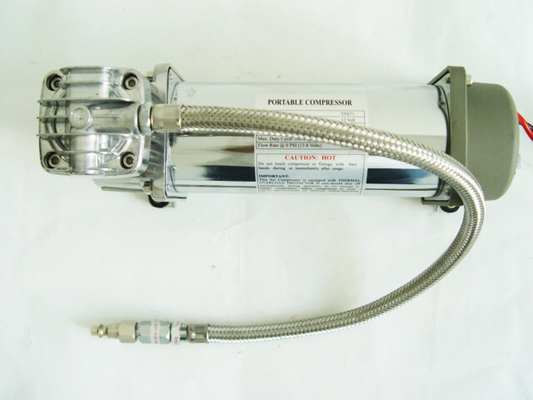

YF6455AH is a hardmount compressor that pumps a massive 2.18 CFM flow at zero PSI head pressure. The 400H comes with a built-in, moisture resistant ON/OFF power switch. Features include a heavy duty stainless steel leader hose with a 1/4” quick connect stud for hookup to a coil hose and insulated wiring for simple installation.

► Used with

• Air tanks in different sizes

• Pneumatic system

• Air horns

► Our Advantages

1 . One year warranty

2 . Competitive price than other manufactures

3 . Portable to carry with

4 . Fast inflation and low noise

5 . Can be pumped more than 20 , 000 times

6 . Anti-dust and explosion-proof

7 . Water resistant : IP 67, working in the water for 2 hours

► SPECIFICATION

1.75CFM 150PSI

• 12 Volt

• Duty Cycle: 100% @ 100 PSI

• Duty Cycle: 50% @ 200 PSI

• Max. Working Pressure: 200 PSI

• 12V Max. Amp Draw: 23 Amps

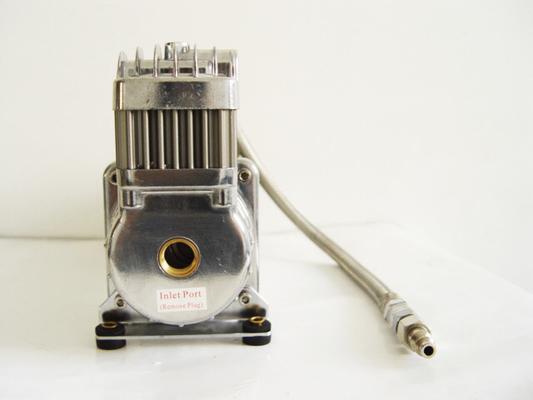

• 1/4"NPT Inlet port

• Net Weight: 11 lbs

12"Lx4"Wx6.55"H

►PERFORMANCE DATA

PSI	0	40	90	150
AMPS	11	17	21	22
CFM	1.75	1.34	1.05	0.74
LPM	50	38	30	21
BAR	0	3	6	10

► RECOMMENDED TANK

TANK FILL DATA

2.5 Gallon Tank

0 to 150 psi 4 min 58 sec

120 to150 psi 50 sec

♦ DUTY CYCLE REFERENCE CHART

Duty Cycle: 100PSI @ 72◦F	Max. Run Time / Min. Rest Time	Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%
9% Duty Cycle	3 Min. On / 30 Min. Off
10% Duty Cycle	3 Min. On / 30 Min. Off
15% Duty Cycle	6 Min. On / 30 Min. Off
20% Duty Cycle	8 Min. On / 30 Min. Off
25% Duty Cycle	10 Min. On / 30 Min. Off
30% Duty Cycle	13 Min. On / 30 Min. Off
33% Duty Cycle	15 Min. On / 30 Min. Off
40% Duty Cycle	20 Min. On / 30 Min. Off
100% Duty Cycle	Continous Duty @ 100PSI @ 72◦F
