130 PSI 12V Silver Inline Check Valve Airbag Air Compressor Chrome Material

130 PSI 12V Silver Inline Check Valve Airbag Air Compressor Chrome Material

Brand Name: N / M
Model Number: YF6264R
MOQ: Negotiation
Price: Negotiation
Payment Terms: T/T, L/C
Supply Ability: 4000pcs 30 days
Detail Information
Place of Origin:
CHINA
Certification:
CE&ROHS
Material:
Chrome
Color:
Silver
Brand:
OEM
Origin:
China
Delivery:
20-30 Days After Received Your Deposit
Condition:
Brand New
Warranty:
12 Months
Packaging Details:
Color box or Blister with card and Strong Carton
Supply Ability:
4000pcs 30 days
Highlight:

air ride air compressor

,

air bag suspension compressor

Product Description

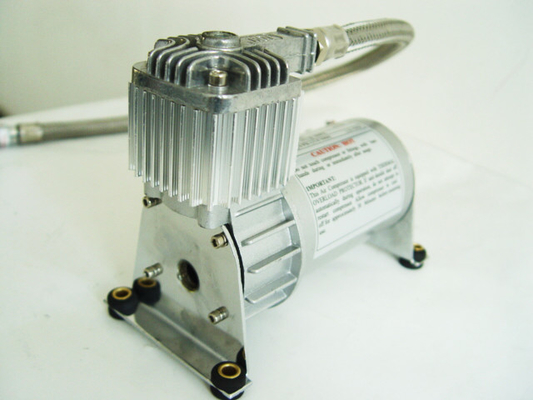

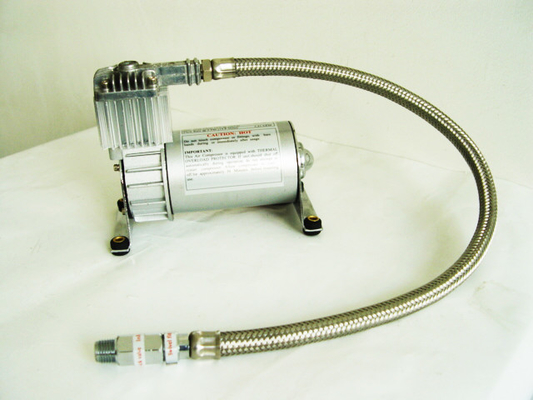

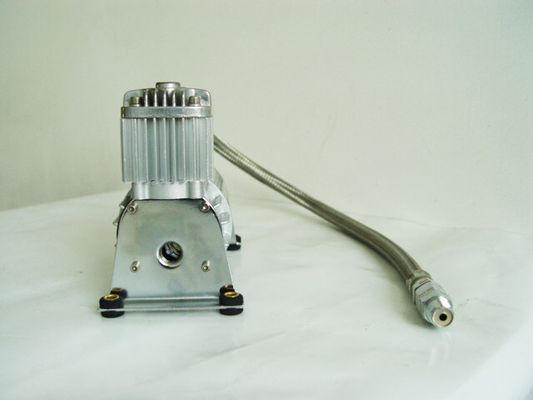

YuRui 6264R 130PSI 12V Silver Inline Check Valve Air Ride Suspension Compressor







► Description



YF6264R is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation.

It is commonly used with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It will automatically turn on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation.





► Used with



Air tanks in different sizes

Pneumatic system

Air horns





► Our Advantages



1 . One year warranty

2 . Competitive price than other manufactures

3 . Portable to carry with

4 . High quality

5 . Can be pumped more than 20 , 000 times

6 . Anti-dust and explosion-proof

7 . Water resistant : IP 54




► SPECIFICATION



1.2CFM 130PSI



• 12 Volt

• Duty Cycle: 15% @ 100 PSI

• Max. Working Pressure: 130 PSI

• 12V Max. Amp Draw: 16 Amps

• Inline Check Valve

6.3"Lx3.3"Wx5.2"H



► PERFORMANCE DATA



PSI 0 40 90 130
AMPS 9.5 12.5 14.5 15
CFM 1.2 0.8 0.63 0.54
LPM 33 23 18 15.5
BAR 0 3 6 9







Remarks:



1. Therms of payments, T/T, L/C.

2. 30% deposit, 70% balance before shipment or against B/L. (small order, should ask 100% advanced, it can be discussed.)

3. Date of shipment, within 20-30 days after we received your deposit. Details should depend on Qty and the production line.

4. Unit price could be discussed depends on the qty

5. We can offer OEM service.



RECOMMENDED TANK130 PSI 12V Silver Inline Check Valve Airbag Air Compressor Chrome Material 0

TANK FILL DATA



1.0 Gallon Tank

0 to 130 psi 2 min 6 sec

100 to 120 psi 45 sec








DUTY CYCLE REFERENCE CHART



Duty Cycle: 100PSI @ 72F Max. Run Time / Min. Rest Time



Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%

9% Duty Cycle 3 Min. On / 30 Min. Off
10% Duty Cycle 3 Min. On / 30 Min. Off
15% Duty Cycle 6 Min. On / 30 Min. Off
20% Duty Cycle 8 Min. On / 30 Min. Off
25% Duty Cycle 10 Min. On / 30 Min. Off
30% Duty Cycle 13 Min. On / 30 Min. Off
33% Duty Cycle 15 Min. On / 30 Min. Off
40% Duty Cycle 20 Min. On / 30 Min. Off
100% Duty Cycle Continous Duty @ 100PSI @ 72◦F
