Air Ride Suspension Compressor
Created with Pixso.

Pneumatic 150psi 12V Or 24V Vehicle Air Compressor Bags Yurui 6376R

Pneumatic 150psi 12V Or 24V Vehicle Air Compressor Bags Yurui 6376R

Brand Name: N / M
Model Number: YF6376R
MOQ: Negotiation
Price: CAN BE DISCUSSED
Payment Terms: T/T, L/C
Supply Ability: 4000pcs 30 days
Detail Information
Place of Origin:
CHINA
Certification:
CE&ROHS
Material:
Chrome
Brand:
OEM
Origin:
China
Power:
Heavy Duty
Moisture Resistant:
IP54
Application:
On-board Air System, Car Tuning, Off-board Car
Recommended Parts:
Air Tank
Voltage:
12V
Warranty:
12 Months
Packaging Details:
Bubble Bag with Foam, Color box and Strong Carton
Supply Ability:
4000pcs 30 days
Highlight:

air bag suspension compressor

,

air ride compressor and tank

Product Description

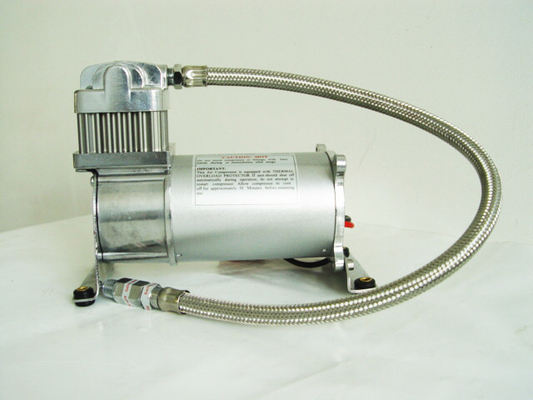

Yurui 6376R 150psi 12V Or 24V Chrome Single Air Ride Suspension Compressor Bags



► Description
YF6376R is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation. Always integrated into on-board air system.
Commonly used must with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It automatically turns on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation when the environment changes. The compressor is furnished with a thermal overload protector which will turn off the unit if overheated.

► Used with
Air tanks in different sizes
Pneumatic system
Air horns

► Our Advantages
1 . One year warranty
2 . Competitive price than other manufactures
3 . Portable to carry with
4 . Fast inflation and low noise
5 . Can be pumped more than 20 , 000 times
6 . Anti-dust and explosion-proof
7 . Water resistant : IP 54




SPECIFICATION
1.40CFM 12V 150PSI
1.50CFM 24V 150PSI

• 12 Volt
• Duty Cycle: 30% @ 100 PSI
• Max. Working Pressure: 150 PSI
• 12V Max. Amp Draw: 22 Amps
• 24V Max. Amp Draw: 12 Amps

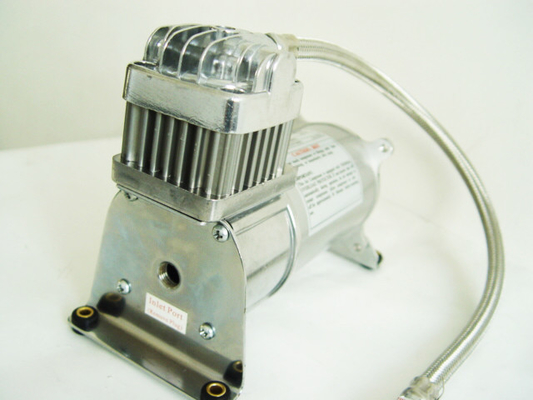

• 3/8"NPT Inlet port
• Net Weight: 6.6 lbs
8"Lx4"Wx6.45"H





PERFORMANCE DATA 12V


PSI04090150
AMPS11161818
CFM1.41.030.90.74
LPM40322621
BAR03610


► RECOMMENDED TANK
TANK FILL DATA 12V Pneumatic 150psi 12V Or 24V Vehicle Air Compressor Bags Yurui 6376R 0
2.0 Gallon Tank
0 to 150 psi 3 min 55 sec
120 to 150 psi 50 sec



► PERFORMANCE DATA 24V


PSI04090150
AMPS691011
CFM1.51.271.020.77
LPM42362922
BAR03610



► RECOMMENDED TANK
TANK FILL DATA 24VPneumatic 150psi 12V Or 24V Vehicle Air Compressor Bags Yurui 6376R 1
2.0 Gallon Tank
0 to 150 psi 3 min 15 sec
120 to 150 psi 46sec



♦ DUTY CYCLE REFERENCE CHART


Duty Cycle: 100PSI @ 72FMax. Run Time / Min. Rest Time
Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%
9% Duty Cycle3 Min. On / 30 Min. Off
10% Duty Cycle3 Min. On / 30 Min. Off
15% Duty Cycle6 Min. On / 30 Min. Off
20% Duty Cycle8 Min. On / 30 Min. Off
25% Duty Cycle10 Min. On / 30 Min. Off
30% Duty Cycle13 Min. On / 30 Min. Off
33% Duty Cycle15 Min. On / 30 Min. Off
40% Duty Cycle20 Min. On / 30 Min. Off
100% Duty CycleContinous Duty @ 100PSI @ 72F





Pneumatic 150psi 12V Or 24V Vehicle Air Compressor Bags Yurui 6376R 2
