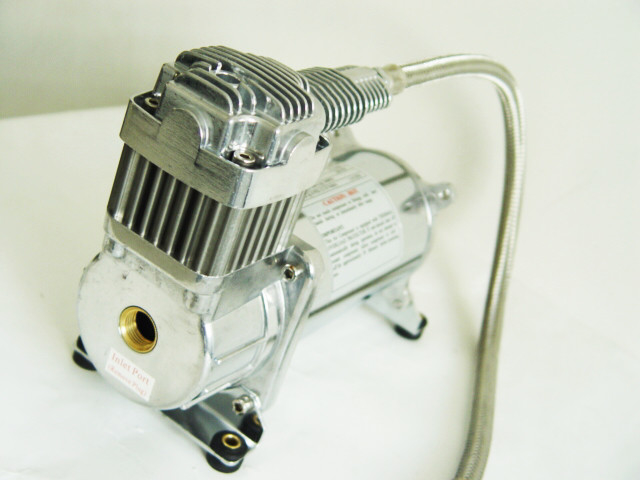

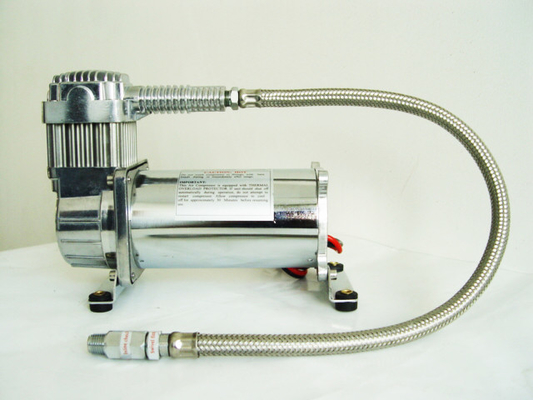

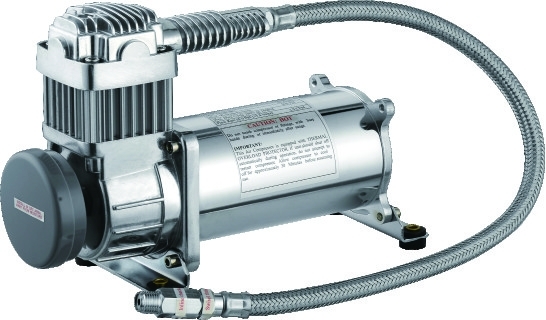

1 / 4 '" Air Ride Suspension Compressor 200psi Single 12v Compressor And Tank
  • 1 / 4 '
  • 1 / 4 '
  • 1 / 4 '

1 / 4 '" Air Ride Suspension Compressor 200psi Single 12v Compressor And Tank

Place of Origin CHINA
Brand Name N / M
Certification CE&ROHS
Model Number YF6370R
Product Details
Brand:
OEM
Material:
Chrome
Origin:
China
Voltage:
12V
Power:
Heavy Duty
Moisture Resistant:
IP67
Application:
On-board Air System, Car Tuning, Off-board Car
Recommended Parts:
Air Tank
High Light:

air ride air compressor

,

air ride compressor and tank

Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
Bubble Bag with Foam, Color box and Strong Carton
Delivery Time
30 days after receiving 30% deposit
Payment Terms
T/T, L/C
Supply Ability
4000pcs 30 days
Product Description

Yurui 6370R 200psi Single 1 Year Warranty 1 / 4 '" Air Ride Suspension Compressor





► Description



YF6370R is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation.

It is commonly used with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It will automatically turn on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation.



► Used with



Air tanks in different sizes

Pneumatic system

Air horns





► Our Advantages



1 . One year warranty

2 . Competitive price than other manufactures

3 . Portable to carry with

4 . Fast inflation and low noise

5 . Can be pumped more than 20 , 000 times

6 . Anti-dust

7 . Water resistant : IP 67, working in the water for 2 hours








Remarks:



1. Therms of payments, T/T, L/C.

2. 30% deposit, 70% balance before shipment or against B/L. (small order, should ask 100% advanced, it can be discussed.)

3. Date of shipment, within 20-30 days after we received your deposit. Details should depend on Qty and the production line.

4. Unit price could be discussed depends on the qty

5. We can offer OEM service.





► SPECIFICATION



1.32CFM 200PSI



• 12 Volt

• Duty Cycle: 33% @ 100 PSI

• Max. Working Pressure: 100 PSI

• 12V Max. Amp Draw: 32 Amps

• 1/4"NPT Inlet port

• Net Weight: 8.2 lbs

9.45"Lx4"Wx6.85"H



► PERFORMANCE DATA



PSI 0 40 90 150
AMPS 17 25 28 26
CFM 2.48 1.82 1.4 0.9
LPM 70 51 40 26
BAR 0 3 6 10





►  RECOMMENDED TANK1 / 4 '" Air Ride Suspension Compressor  200psi Single 12v Compressor And Tank 0

TANK FILL DATA



2.0 Gallon Tank

0 to 150 psi 2 min 2 sec

120 to 150 psi 40 sec






♦ DUTY CYCLE REFERENCE CHART



Duty Cycle: 100PSI @ 72F Max. Run Time / Min. Rest Time



Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%

9% Duty Cycle 3 Min. On / 30 Min. Off
10% Duty Cycle 3 Min. On / 30 Min. Off
15% Duty Cycle 6 Min. On / 30 Min. Off
20% Duty Cycle 8 Min. On / 30 Min. Off
25% Duty Cycle 10 Min. On / 30 Min. Off
30% Duty Cycle 13 Min. On / 30 Min. Off
33% Duty Cycle 15 Min. On / 30 Min. Off
40% Duty Cycle 20 Min. On / 30 Min. Off
100% Duty Cycle Continous Duty @ 100PSI @ 72◦F





1 / 4 '" Air Ride Suspension Compressor  200psi Single 12v Compressor And Tank 1
