Quarter Duty Cycle Onboard Air Systems For Trucks , 1 Gallon Tank

Quarter Duty Cycle Onboard Air Systems For Trucks , 1 Gallon Tank
Quarter Duty Cycle Onboard Air Systems For Trucks , 1 Gallon Tank Quarter Duty Cycle Onboard Air Systems For Trucks , 1 Gallon Tank

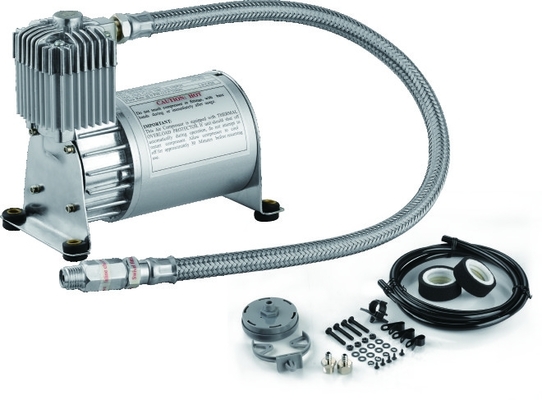

Large Image :  Quarter Duty Cycle Onboard Air Systems For Trucks , 1 Gallon Tank

Product Details:
Place of Origin: CHINA
Brand Name: OEM
Certification: CE
Model Number: YF7003
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Can be discussed
Packaging Details: Box And Strong Carton
Delivery Time: 30 days after receiving 30% deposit
Payment Terms: T/T, L/C
Supply Ability: 5000pcs per month

Quarter Duty Cycle Onboard Air Systems For Trucks , 1 Gallon Tank

Description
Voltage: 12V Brand: OEM
Original: CHINA Price: Competitive
Color: Silver / Black Material: Steel / Chrome
Moisture Resistant: IP67
High Light:

on board air compressor

,

on board air system

Silver Compressor 1.0Gallon Tank Quarter Duty Cycle Onboard Air System For Cars





► Description



YF7003 is an installation type air suspension pump with tanks, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation. Always integrated into on-board air system.



Commonly used must with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It automatically turns on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation when the environment changes. The compressor is furnished with a thermal overload protector which will turn off the unit if overheated.





 Our Advantages



1 . Good service and after-sale service

2 . Competitive price than other manufactures

3 . Portable to carry with

4 . Fast inflation and low noise

5 . Can be pumped more than 20 , 000 times

6 . Anti-dust and explosion-proof

7. Excellent quality





 PERFORMANCE DATA

PSI 0 40 90



140

AMPS 11 17 20 18
CFM 1.9 1.5 1.0 0.74
LPM 53 42 28 21
BAR 0 3 6 10









TANK FILL DATA



1.0 Gallon Tank

0 to 140 psi 1 min 28 sec

100 to 140 psi 30 sec





DUTY CYCLE REFERENCE CHART



Duty Cycle: 100PSI @ 72F Max. Run Time / Min. Rest Time



Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%

9% Duty Cycle 3 Min. On / 30 Min. Off
10% Duty Cycle 3 Min. On / 30 Min. Off
15% Duty Cycle 6 Min. On / 30 Min. Off
20% Duty Cycle 8 Min. On / 30 Min. Off
25% Duty Cycle 10 Min. On / 30 Min. Off
30% Duty Cycle 13 Min. On / 30 Min. Off
33% Duty Cycle 15 Min. On / 30 Min. Off
40% Duty Cycle 20 Min. On / 30 Min. Off
100% Duty Cycle Continous Duty @ 100PSI @ 72F





Remarks:



1. Therms of payments, T/T, L/C.

2. 30% deposit, 70% balance before shipment or against B/L. (small order, should ask 100% advanced, it can be discussed.)

3. Date of shipment, within 20-30 days after we received your deposit. Details should depend on Qty and the production line.

4. Unit price could be discussed depends on the qty

5. We can offer OEM service.
