Heavy Duty Strong Power Duty Cycle Air Compressor Systems With 2.5 Gallon Tank
  • Heavy Duty Strong Power Duty Cycle Air Compressor Systems With 2.5 Gallon Tank

Heavy Duty Strong Power Duty Cycle Air Compressor Systems With 2.5 Gallon Tank

Place of Origin CHINA
Brand Name OEM
Certification CE
Model Number YF7010
Product Details
Voltage:
12V
Brand:
OEM
Original:
CHINA
Price:
Competitive
Power:
Heavy Duty
Color:
Silver / Black
Delivery:
20-30 Days After Received Your Deposit
High Light:

on board air compressor

,

on board air system

Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Consultation
Packaging Details
box with foam and strong carton
Delivery Time
30 days after receiving 30% deposit
Payment Terms
T/T, L/C
Supply Ability
5000pcs per month
Product Description

YURUI Dual YF6470R Onboard Air System Heavy Duty Strong Power 2.5 Gallon Tank





► Description





YuRui’s Dual YF6470R Onboard Air System is a pre-packaged compressed air solution that provides two YF6470R,33% duty cycle compressors ,a 2.5 gallon air tank,inline pressure regulation,and all components needed to install a working system capable of inflating tires,managing air locking differentials,and more.





Our Advantages



1 . One year warranty

2 . Fast inflation and low noise

3 . Anti-dust and explosion-proof

4 . Water resistant : IP 67, working in the water for 2 hours

5 . All of our products must be checked carefully before shipping








YF7010

4.5CFM 150 PSI

P/N 7010

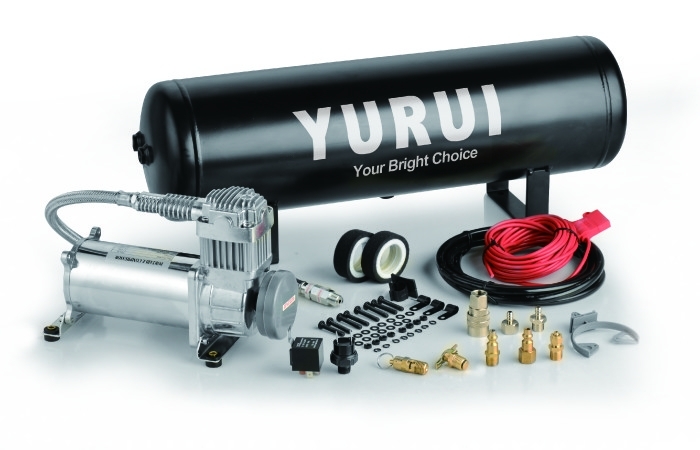

► PARTS INCLUDED





YF6470R Air Compressor

12 Volt

Duty Cycle:33%@100 PSI

System Max Working Pressure:150 PSI

Max Amp Draw:60 Amps

2.5 Gallon Air Tank

Accessory Airline

Pressure Switch(120PSI on 150 PSI off)

(2)40amp Relay

1/4”NPT Drain Cock

1/4”NPT250PSI Safety Valve

1/4”NPT Quick Connect Stud(F)

1/4”NPT Quick Connect Coupler(M)

(2)8ft Air Hose

25IL Air Hose

Tire Pressure gun

20ft 12 Gauge Wire with Inline Fuse Holder

Electrical Connections





► PERFORMANCE DATA



PSI 0 40 90 150
CFM 4.5 3.45 2.6 1.43
AMPS 30 42 50 48
LPM 127 97 73.6 40.4
BAR 0 3 6 10





► TANK FILL DATA



2.5 Gallon Tank

0 to 150 psi 1 min 12 sec

120 to 150 psi 22 sec





To which places you have exported?



America, Europe, South Asia, and so on.

How about your delivery time?

20-30 working days after we received your deposit.





How to guarantee your after sales service?



1. We check every item’s quality during the production

2. Recheck the products before shipment to ensure our packaging in good condition.

3. Track and receive feedback from our customer.






► DUTY CYCLE REFERENCE CHART





Duty Cycle: 100PSI @ 72F Max. Run Time / Min. Rest Time



Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%

9% Duty Cycle 3 Min. On / 30 Min. Off
10% Duty Cycle 3 Min. On / 30 Min. Off
15% Duty Cycle 6 Min. On / 30 Min. Off
20% Duty Cycle 8 Min. On / 30 Min. Off
25% Duty Cycle 10 Min. On / 30 Min. Off
30% Duty Cycle 13 Min. On / 30 Min. Off
33% Duty Cycle 15 Min. On / 30 Min. Off
40% Duty Cycle 20 Min. On / 30 Min. Off
100% Duty Cycle Continous Duty @ 100PSI @ 72F
